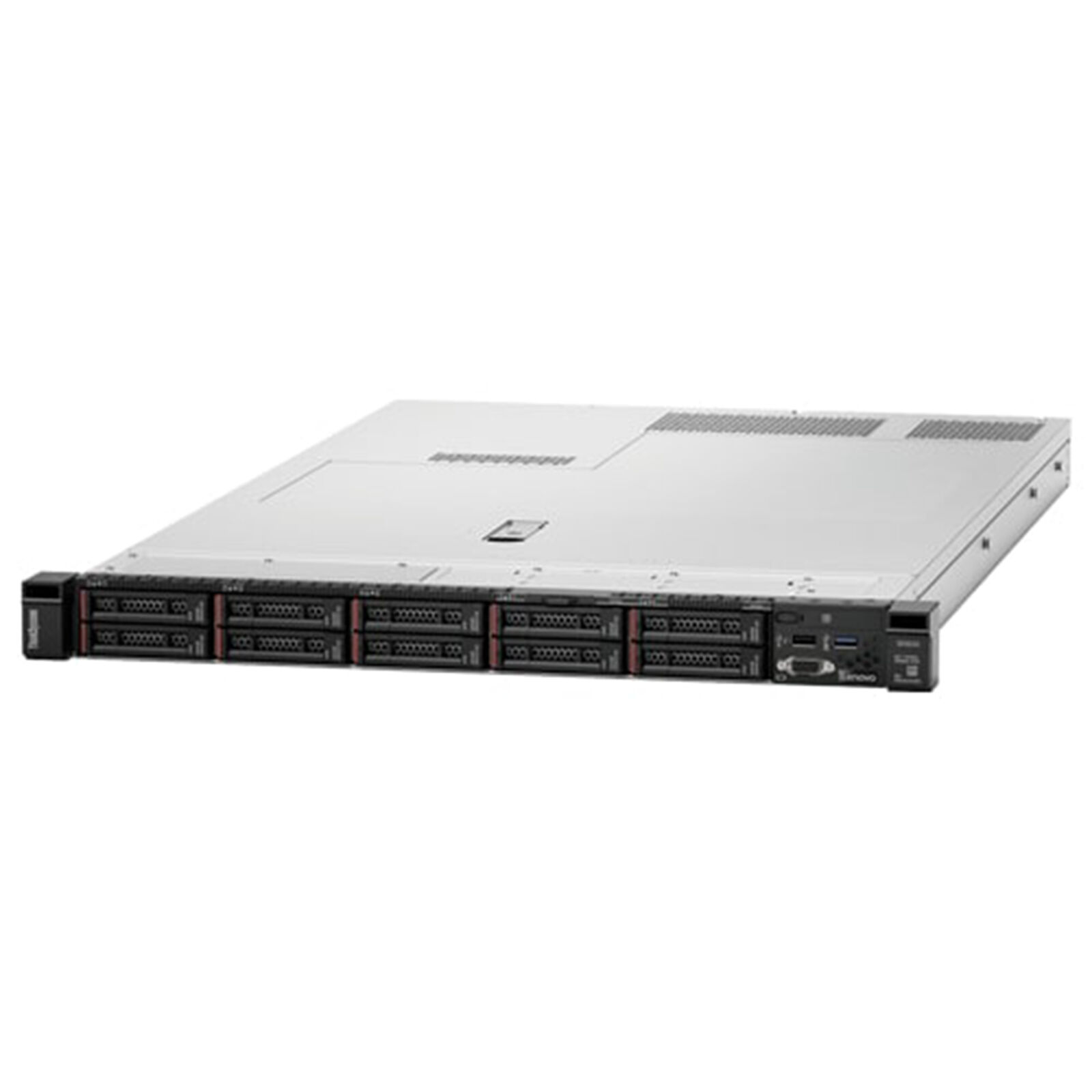

LENOVO ThinkSystem SR630 1xXeon Silver 4210 10C 2.2GHz 85W 1x32GB 2Rx4 RAID 930-8i 2GB Flash 1x750W Server



Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

  • Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
  • RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 6, 10, 50, 60, JBOD)
  • 750 W power supply unit (PSU) fulfils your system's power requirements
  • With 32 GB memory, improve system performance to execute complex applications

SPECIFICATIONS

Network & Communication
Ethernet Technology Gigabit Ethernet
Operating System
Operating System No
Display & Graphics
Graphics Controller Model G200e
Graphics Memory Capacity 16 MB
Storage
Optical Drive Type No
Total Hard Drive Capacity No
I/O Expansions
"Number of Internal 2.5"" Bays" 8
Number of Total Expansion Bays 8
Hot Swappable Bays Yes
Controllers
RAID Levels 0, 1, 5, 6, 10, 50, 60, JBOD
Controller Type 12Gb/s SAS
  Serial ATA/600
RAID Supported Yes
Memory
Standard Memory 32 GB
Memory Technology TruDDR4
Number of Occupied Memory Slots 1
Total Number of Memory Slots 24
Power Description
Input Voltage 120 V AC
230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Maximum Power Supply Wattage 750 W
Miscellaneous
Package Contents
  • ThinkSystem SR630 7X02A0BRAU Server
  • Rack Installation Guide
  • Electronic Publications Flyer
  • Tool-less Rail Kit
Certifications & Standards
  • TÜV-GS
Environmentally Friendly Yes
Energy Star Yes
Energy Efficiency Certification ENERGY STAR 3.0
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate) 18.80 kg
Form Factor Rack
Rack Height 1U
Height 43.2 mm
Width 434.3 mm
Depth 713.7 mm
Processor
Processor Speed 2.20 GHz
Processor Type Xeon Silver
Processor Model 4210
Processor Core Deca-core (10 Core)
Number of Processors Supported 2
Number of Processors Installed 1
General Information
Product Type Server
Manufacturer Part Number 7X02A0BRAU
Manufacturer Website Address http://www3.lenovo.com/au/en
Manufacturer Lenovo Group Limited
Product Model 7X02A0BRAU
Product Name ThinkSystem SR630 7X02A0BRAU Server
Product Line ThinkSystem
Product Series SR630
Brand Name Lenovo
SKU 7X02A0BRAU
Barcode # SVL-SR630-V5
Brand Lenovo
Shipping Weight 6.0000kg
