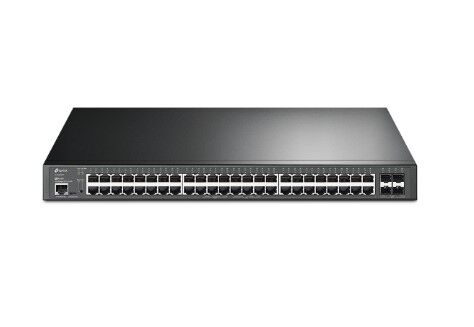

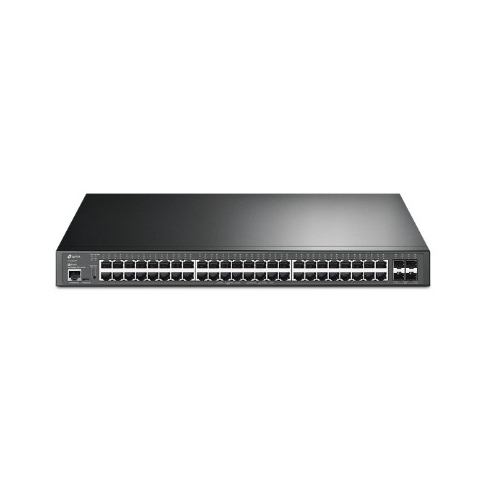

TP-Link SG3452XP JetStream 48-Port Gigabit PoE+ Smart Switch (RJ45/SFP)

500 W PoE Budget

Overview

• 48× PoE+ RJ45 ports + 4× 10G SFP+ slots, plus console options, designed for high-density deployments.
• PoE Budget: 500 W (up to 30 W per PoE+ port)
• 176 Gbps switching capacity; 130.9 Mpps packet forwarding
• Rack-mountable and fan-cooled with three fans
• Centralized management via Omada (Cloud-Based Controller, Hardware Controller OC300/OC200, or Software Controller)
• Secure web management and CLI access with advanced L2/L2+ features

Key Specifications

• Interfaces: 48 × 10/100/1000 Mbps PoE+ RJ45; 4 × 10G SFP+ slots; 1 × RJ45 Console; 1 × Micro-USB Console
• Power: 100–240 V AC ~50/60 Hz
• PoE: 802.3at/af (PoE+); 48 PoE+ ports
• PoE Budget: 500 W
• Dimensions (W × D × H): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
• Weight: [Add weight if known]
• Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller; HTTPS/SSH; SNMP
• Note: Power adapter not included in some bundles (verify your package)

Hardware Features

• Power Supply: 100–240 V AC ~50/60 Hz
• PoE Ports: 48 PoE+ RJ45 ports; up to 30 W per port
• Max Power Consumption: 49.19 W (no PD connected); 635.7 W (with 500 W PD device)
• Cooling: 3 fans
• Mounting: Rack-mountable
• Dimensions: 11.0 in × 13.0 in × 1.7 in (or 440 × 330 × 44 mm)
• Physical Security Lock: Yes
• Anticipated Accessories: Console access via RJ45 and Micro-USB ports

Wireless Features (Note: This device is a switch; wireless features are not applicable)

• Not applicable to wireless interfaces

Performance

• Switching Capacity: 176 Gbps
• Packet Forwarding Rate: 130.9 Mpps
• MAC Address Table: 16K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB

Software Features (L2/L2+ and Management)

• Quality of Service: 8 priority queues; 802.1p/DSCP; SP/WRR; bandwidth control; QoS remarking
• L2/L2+: 128 IPv4/IPv6 interfaces; Static Routing (48 IPv4/IPv6); DHCP Server/Relay; DHCP L2 Relay
• VLAN: 4K VLAN Groups; 802.1Q tagging; MAC VLAN; Protocol VLAN; GVRP; Private VLAN; VLAN VPN mappings
• Access Control List: Time-based ACL; MAC/IP/IPv6 ACLs; port/VLAN binding; policy actions (Mirroring, Redirect, Rate Limit, QoS Remark)
• Security: IP-MAC-Port Binding (512 entries); DHCP Snooping; ARP Inspection; IPv4/IPv6 Source Guard; 802.1X (MAB, Guest VLAN, RADIUS)
• IPv6: Dual IPv4/IPv6; MLD Snooping; IPv6 ACLs; IPv6 ND
• Management: Web-based GUI; CLI; SNMP v1/v2c/v3; RMON; SDM Template; DHCP/BOOTP Client; LLDP/LLDP-MED; Dual Image/Dual Configuration; CPU Monitoring; Cable Diagnostics; System Log
• Advanced: Automatic Device Discovery; Batch Configuration/Upgrade; Unified Configuration; Reboot Schedule
• Cloud & Omada: Omada Cloud-Based Controller; Omada Hardware Controller (OC300/OC200); Omada Software Controller; Zero-touch provisioning via Omada

What’s in the Box

• SG3452XP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Certifications

• CE, FCC, RoHS, IC

Environment & System Requirements

• Operating Temperature: 0°C–40°C (32°F–104°F)
• Storage Temperature: -40°C–70°C (-40°F–158°F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
• Platform/Browser compatibility: Web-based management via TLS/HTTPS; SSH access

Notes

• Some configurations and features may vary by firmware and regional model. Confirm your bundle’s exact power adapter inclusion.
