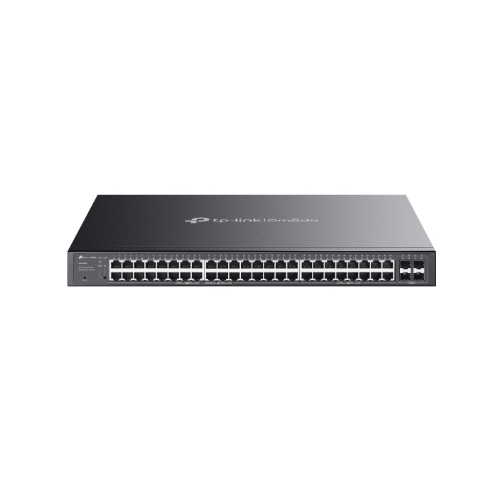

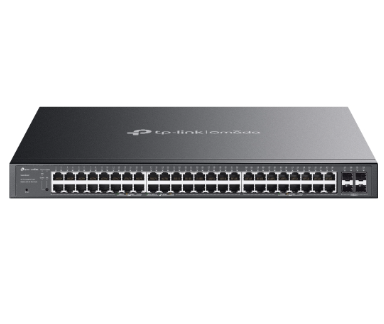

TP-Link SG2452LP Omada 52-Port Gigabit PoE+ Smart Switch (RJ45/SFP)

230W PoE Budget

Overview

• 52-port switch with centralized Omada management: 32 PoE+ RJ45 ports, 16 non-PoE RJ45 ports, and 4 Gigabit SFP ports
• PoE Budget: 230 W (up to 30 W per PoE+ port)
• High performance: 104 Gbps switching capacity; 77.37 Mpps forwarding rate
• Build and deployment: Rack-mountable, fanless, secure web/CLI management
• Centralized management: Omada Cloud/Hardware/Software Controller

Key Specifications

• Interfaces: 32 × 10/100/1000 PoE+, 16 × 10/100/1000 non-PoE RJ45, 4 × Gigabit SFP
• Power: 100–240 V AC, 50/60 Hz
• PoE: 802.3at/af (PoE+), 32 PoE+ ports
• PoE Budget: 230 W
• Dimensions (W × D × H): 440 × 330 × 44 mm
• Weight: [Add weight if known]
• Management: Omada Cloud/Hardware/Software Controller; HTTPS/SSH; SNMP
• Note: Power adapter not included

What’s in the Box

• SG2452LP switch
• Power cord
• Rackmount kit
• Quick Installation Guide
• Rubber feet

Features Highlights

• QoS: 802.1p/DSCP, 8 queues; SP/WRR; bandwidth control
• L2/L2+: Static routing, DHCP Server/Relay, IPv4/IPv6
• VLAN: 4K VLAN groups, 802.1Q, GVRP, MVR
• Security: IP-MAC-Port Binding, 802.1X, DoS Defend, ACLs, DHCP/ND inspection
• IPv6: Dual stack, MLD Snooping, ND, IPv6 ACLs
• Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON, dual image/config

Warranty & Certifications

• Certifications: CE, FCC, RoHS
• Warranty: [Add warranty details if known]

SEO Keywords (optional)

• TP-Link SG2452LP, SG2452LP price, TP-Link 52 port switch, Omada switch, PoE+ switch, 230W PoE budget, gigabit PoE switch, rack mount switch

Option B: Magento/Magento 2 tabbed layout (Overview | Specifications | Features | Package Contents | Warranty)

Tabs: Overview | Specifications | Features | Package Contents | Warranty

Overview

• TP-Link SG2452LP Omada 52-Port Gigabit PoE+ Smart Switch (RJ45/SFP)
• 32 PoE+ RJ45 ports, 16 non-PoE RJ45 ports, 4x Gigabit SFP
• PoE Budget: 230 W; up to 30 W per PoE+ port
• 104 Gbps switching capacity; 77.37 Mpps forwarding
• Rack-mountable, fanless, Omada centralized management

Specifications

• Interfaces: 32× PoE+ RJ45, 16× non-PoE RJ45, 4× Gigabit SFP
• Power: 100–240 V AC ~50/60 Hz
• PoE: 802.3at/af; 32 PoE+ ports
• PoE Budget: 230 W
• Dimensions: 440 × 330 × 44 mm
• Management: Web GUI, SSH, SNMP, Omada Cloud/Hardware/Software Controller
• Security: IP-MAC-Port Binding, 802.1X, ACLs, DHCP Snooping, ARP/ND Inspection
• VLAN: 4K VLAN Groups, 802.1Q, GVRP, MVR
• IPv6: Static Routing, IPv6 ACLs, MLD Snooping, IPv6 ND
• Certifications: CE, FCC, RoHS

Features

• QoS: 8 queues (802.1p/DSCP), SP/WRR, bandwidth control
• L2/L2+: DHCP Server/Relay, LLDP, DLDP, Link Aggregation, STP/RSTP/MSTP
• Multicast: IGMP Snooping, MVR, Multicast Filtering
• Advanced: Automatic Device Discovery, Batch Config/Upgrade, Unified Configuration

Package Contents

• SG2452LP
• Power Cord
• Rackmount Kit
• Quick Installation Guide
• Rubber Feet
