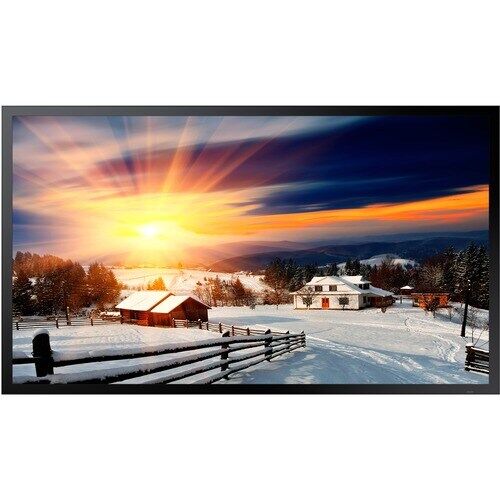

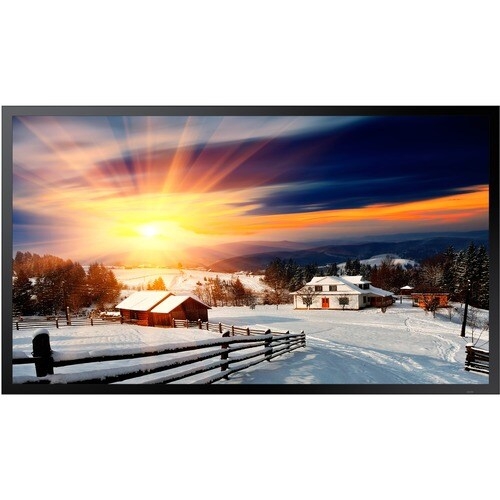

Samsung OH55F 55″ Outdoor Digital Signage Display

2500 nits High Brightness | IP56 IK10

The Samsung OH55F 55-inch Outdoor Digital Signage Display is a high-performance, all-in-one outdoor signage solution engineered for maximum visibility, durability, and simplified installation. Delivering an exceptional 2500 cd/m² high-brightness Full HD display, IP56 ingress protection, IK10 impact resistance, and Tizen™ OS with SSSP 4.0, the OH55F ensures reliable 24/7 operation in harsh outdoor environments. Designed with an embedded power box, filter-less self-cooling system, and anti-reflection Magic Glass, it is the ideal solution for outdoor advertising, transport hubs, retail storefronts, and public spaces—available now from 7stores.au.

The Samsung OH55F Outdoor Digital Signage Display is purpose-built for organisations that require uncompromised visibility and resilience in direct sunlight and extreme outdoor conditions. Featuring a 55-inch Full HD (1920 × 1080) LCD panel with industry-leading 2500-nit brightness, this display ensures content remains sharp, vibrant, and legible even under intense daylight. The advanced anti-reflection Magic Glass significantly reduces glare, while circular polarising technology eliminates display blackening caused by polarised sunglasses—making messaging visible to every passer-by.

Engineered for outdoor endurance, the OH55F integrates IK10-certified 5 mm tempered Magic Glass, providing superior resistance to vandalism and impact. A protective air gap between the glass and LCD panel helps prevent screen damage even if the outer glass is compromised. With IP56-rated ingress protection, the display is safeguarded against dust, rain, humidity, and environmental pollutants, ensuring dependable long-term performance.

Features

• 55″ Full HD outdoor LCD signage display
• 2500 cd/m² ultra-high brightness
• IP56 ingress protection & IK10 vandal resistance
• Embedded power box and network hub
• Filter-less, maintenance-free cooling system
• Magic Glass with anti-reflection technology
• PC-less signage powered by Tizen OS

Technical Specifications

Display & Video

• Screen Size: 55″
• Resolution: 1920 × 1080 (Full HD, 1080p)
• Panel Type: LCD
• Backlight Technology: LED
• Brightness: 2500 cd/m²
• Dynamic Contrast Ratio: 100,000:1
• Color Gamut: 72%
• Color Depth: 8-bit
• Pixel Pitch: 0.63 mm

System & Performance

• Operating System: Tizen 2.4
• Platform: Samsung SMART Signage Platform (SSSP) 4.0
• Processor: Quad-core Cortex-A12 @ 1.30 GHz
• Memory: 2.5 GB
• Connectivity & Interfaces
• HDMI Inputs: 2
• USB: Yes
• Ethernet (RJ-45): Yes
• Serial (RS-232): Yes

Power

• Input Voltage: 120–230 V AC
• Physical & Environmental
• Dimensions (W × H × D): 126.1 × 73.1 × 8.5 cm
• Weight: Approx. 46.1 kg
• Bezel Width: 24.9 mm
• Protection Rating: IP56
• Impact Resistance: IK10

General

• Product Model: OH55F
• Series: OHF
• Manufacturer Part Number: LH55OHFPVBC/XY
• Product Type: Outdoor Digital Signage Display
