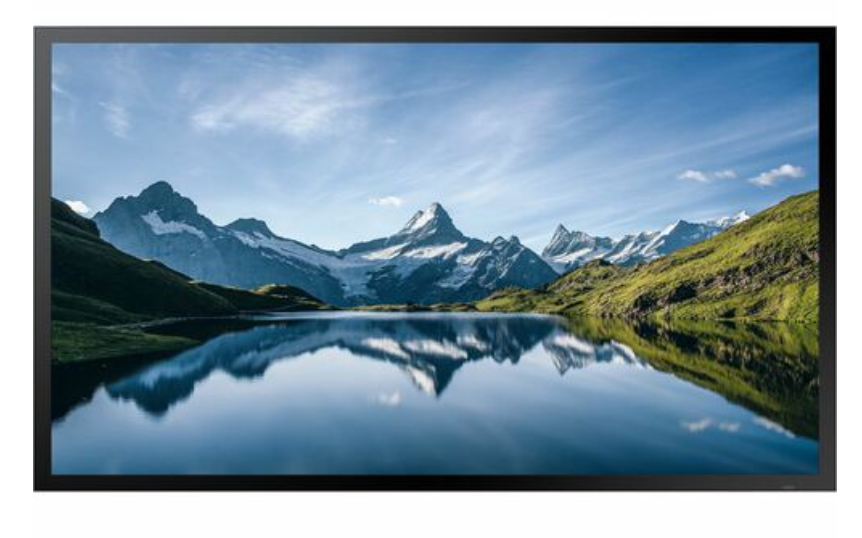

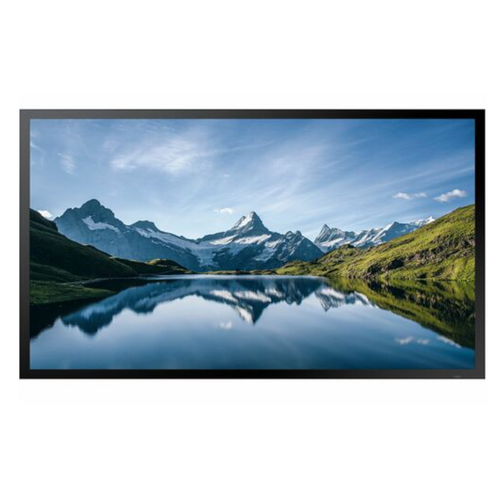

Samsung OH46B-S 46" 4000nit Outdoor High-Brightness Full HD Display

IP56 IK10 Commercial Signage

The Samsung OH46B-S 46" Outdoor High-Brightness Digital Signage Display is a fully weather-sealed, vandal-resistant commercial panel engineered for public-facing outdoor environments, transport hubs, QSR drive-thrus, theme parks, petrol forecourts, smart-city kiosks, retail façades, stadiums, and large-format wayfinding systems where reliability, durability, and extreme daylight visibility are essential.

Delivering an ultra-high 4000 cd/m² brightness output, 24/7 runtime certification, and anti-polarisation screen technology, the OH46B-S provides clear visibility even when viewed through sunglasses and in full direct sunlight. The screen’s Vertical Alignment (VA) panel enhances colour depth, contrast uniformity, and image clarity — ensuring digital menus, promotional media, live advertising feeds, and mission-critical messaging remain sharp in all outdoor conditions.

Built for true unattended deployment, the OH46B-S includes IP56 weather protection, IK10 impact-resistant Magic Protection Glass, and Samsung’s engineered outdoor thermal control system designed to prevent overheating, dust intrusion, moisture damage, and vandal damage. Unlike indoor screens inside enclosures, the OH46B-S is a fully self-contained outdoor display — no extra casing, no external cooling systems, no secondary hardware.

The display integrates MagicINFO Player S10 with Tizen 6.5 OS, delivering a complete SoC (System-on-Chip) signage platform capable of cloud scheduling, remote monitoring, playlist automation, and security-controlled fleet deployment — ideal for national rollouts, QSR franchise networks, and transport-sector upgrades. Embedded Samsung Knox 3-layer security platform protects firmware, content, and user data at hardware, OS and application levels — a requirement for enterprise deployments and government use.

Available through 7stores.au, the OH46B-S is one of the most advanced outdoor commercial signage displays available in Australia — combining extreme sunlight readability, vandal-grade build quality, 24/7 uptime, and smart cloud-ready content control in a single engineered commercial chassis.

MAIN POINTS

• Ultra-high 4000nit brightness for perfect visibility in full direct sunlight
• IP56 weather rating – engineered for rain, dust, wind, salt-air and outdoor contamination
• IK10 impact-rated Magic Glass for vandal resistance and physical safety
• 24/7 continuous operation – built for always-on commercial environments
• Anti-reflection optical glass + polarised sunglasses support – prevents glare blackout
• MagicINFO S10 + Tizen 6.5 OS – full embedded digital signage platform, no external media player required

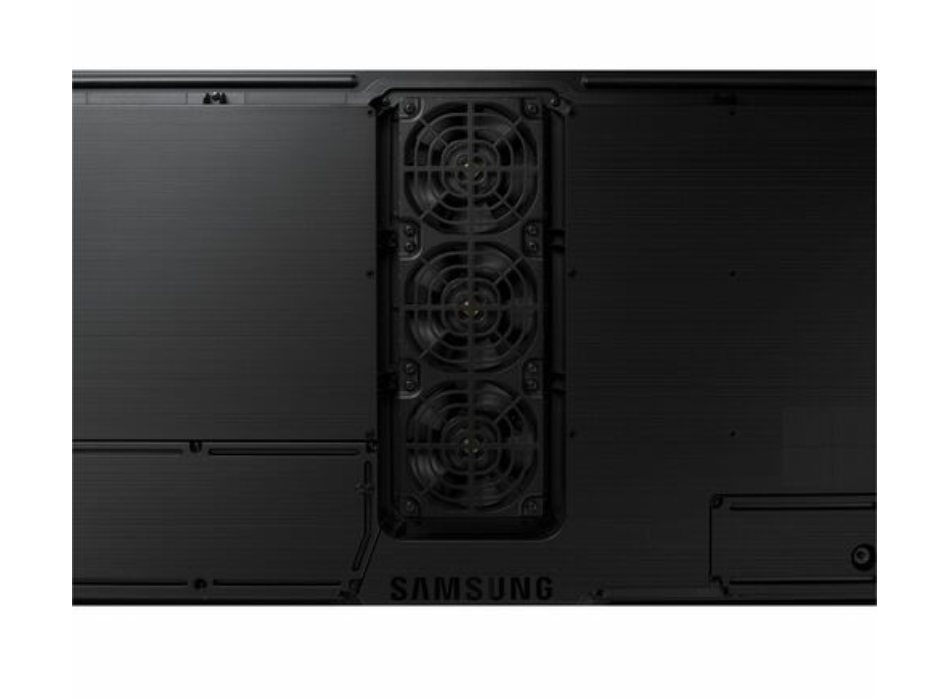

• Advanced thermal management prevents overheating in enclosed or sun-exposed installations
• 3-layer Samsung Knox hardware security protects firmware, OS and content
• Slim all-in-one outdoor solution – no external weather cabinet required
• Ideal for drive-thrus, transport terminals, EV chargers, roadside signage, theme parks, outdoor retail zones, smart kiosks, council infrastructure


SPECIFICATIONS

General
• Brand: Samsung
• Series: OHB
• Model: OH46B-S
• Product Type: Outdoor Digital Signage Display
• Part Number: LH46OHBESGBXXY

Display
• Screen Size: 46"
• Resolution: 1920 × 1080 (Full HD)
• Brightness: 4000 cd/m²
• Panel Technology: VA LCD
• Scan Format: 1080p
• Dynamic Contrast Ratio: 6,000:1
• Colour Gamut: 72% NTSC
• Pixel Pitch: 0.53 mm
• Backlight: LED
• Number of Screens: 1

Durability / Environmental
• Operating Hours: 24/7
• IP Rating: IP56 (weatherproof)
• Impact Protection: IK10 tempered safety glass
• Anti-reflection coating: Yes
• Polarised sunglasses compatible: Yes

OS / Media / Control
• Operating System: Tizen 6.5
• Embedded Player: MagicINFO Player S10
• Security Platform: Samsung Knox (3-layer)

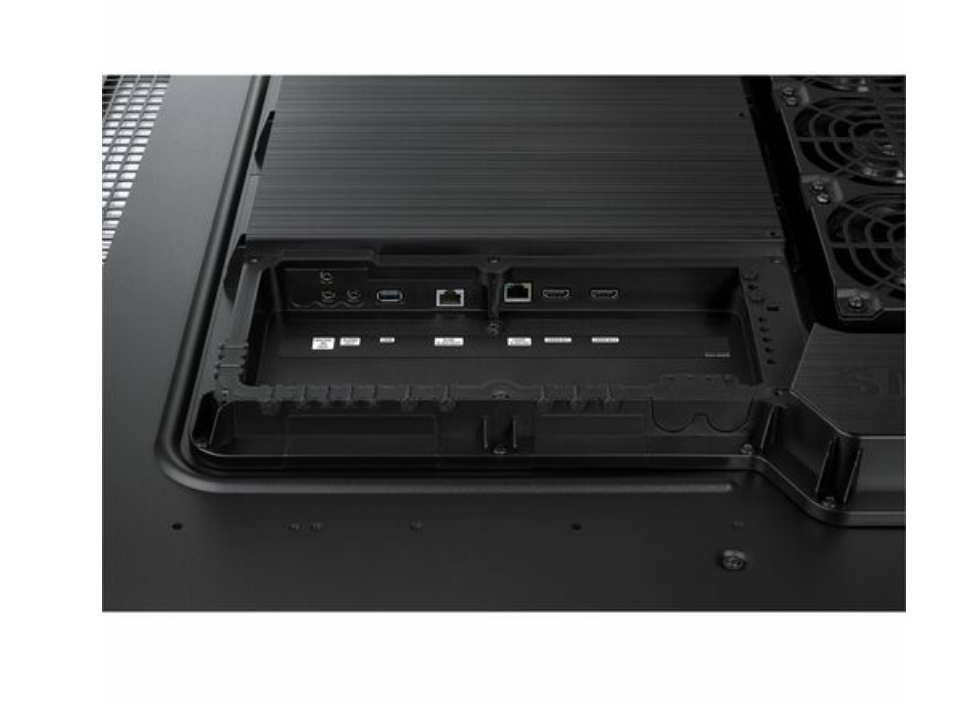

Connectivity
• HDMI Inputs: 2
• USB: Yes
• RS-232 Serial: Yes
• Ethernet LAN: Yes

Power
• Input Voltage: 120–230V AC

Physical
• Weight: ~36 kg
• Dimensions: 106.9 × 62.4 × 8.5 cm
• Bezel Width: 24.9 mm
• Mount Type: Panel mount
• VESA Pattern: 995 × 500

Please note: some Samsung displays may require additional hardware such as a media player, mount, or OPS module — contact 7Stores before purchasing, especially if you do not have a professional installer. Installation services are available on request.
