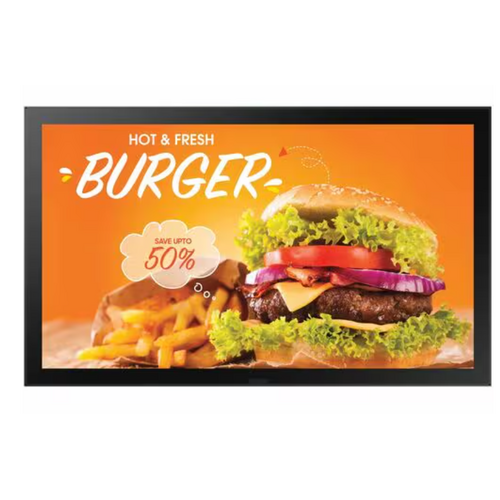

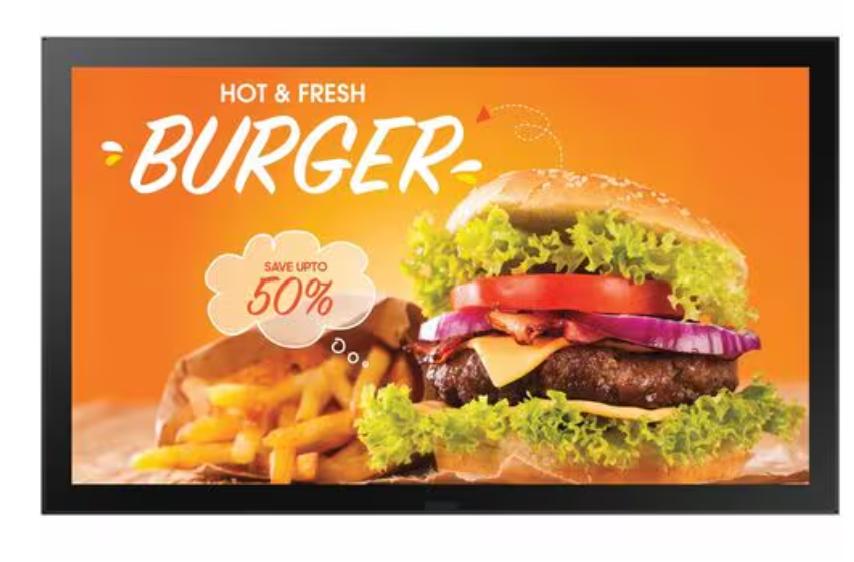

Samsung OH24B 24" 1500nit Outdoor Full HD IP66 Display

Sunlight-Readable Commercial Signage

The Samsung OH24B 24" Outdoor High-Brightness Digital Signage Display is a compact, fully weather-rated, sunlight-readable commercial screen engineered for drive-thru menus, outdoor kiosks, EV charging stations, petrol forecourts, QSR digital menus, smart city infrastructure, outdoor retail promotion, theme parks, pedestrian zones, and unattended systems where reliability, durability and high visibility are mission-critical.

Delivering 1500 cd/m² brightness with UL-verified outdoor visibility, the OH24B maintains crystal-clear readability in direct sunlight, rain, dust, glare, and variable outdoor lighting conditions. Its integrated auto-brightness sensor dynamically adjusts luminance in real time, reducing power consumption while ensuring that the display always remains readable day or night — without manual intervention.

Built using a true industrial-grade IPS panel, the OH24B maintains full colour accuracy, deep contrast and wide viewing angles, making it ideal for applications where customers may approach the screen from different angles or distances. With IP66 ingress protection, IK10 impact-rated Magic Glass, and Samsung’s engineered outdoor thermal management, the display is protected against dust, water, vandalism, accidental impacts, and harsh Australian outdoor climate conditions.

Unlike indoor displays placed in weather enclosures, the OH24B is a fully self-contained outdoor signage unit, requiring no additional housing, fans, or HVAC systems. With its slim 59.8mm chassis, detachable port cover, and VESA mounting support, installation is fast, cable-clean, and compatible with wall, kiosk, column or pole-mounted deployments.

Powered by Tizen 6.5 OS and Samsung’s MagicINFO 10 Player, the display is a complete SoC (System-on-Chip) signage platform with no need for external media players or PC hardware. Content can be remotely scheduled, monitored and updated via Ethernet or Wi-Fi, making it ideal for multi-site deployments.

Available through 7stores.au, the OH24B gives Australian businesses a professional outdoor display built for real-world commercial use — not a consumer panel modified for external environments.

MAIN POINTS

• 1500-nit high-brightness panel ensures full daylight visibility, even under direct sun
• IP66 weather-sealed construction protects against rain, dust, wind, mud, salt-air and debris
• IK10 impact-resistant Magic Glass protects from vandalism, bumps and accidental collisions
• 24/7 continuous operation rating – purpose-built for commercial uptime, not domestic use
• Auto-brightness sensor lowers power usage while maintaining visibility across lighting changes
• Tizen 6.5 + MagicINFO 10 embedded player – no external media player or NUC required
• Energy-efficient BLU panel reduces running cost for large fleet deployments
• Flexible mounting options (wall, kiosk, pole, stand) with VESA 100 × 100
• Ideal for restaurants, drive-through lanes, public terminals, ticketing, EV chargers, service stations, wayfinding, outdoor retail displays

SPECIFICATIONS

General
• Brand: Samsung
• Series: OHB
• Model: OH24B
• Product Type: Outdoor Digital Signage Display
• Part Number: LH24OHBEBGBXXY

Display
• Screen Size: 24"
• Resolution: 1920 × 1080 (Full HD)
• Brightness: 1500 cd/m²
• Panel Type: IPS LCD
• Contrast: 72% NTSC colour gamut
• Scan Format: 1080p
• Pixel Pitch: 0.27 mm
• Backlight: LED
• Operation: 24/7 certified

Durability
• IP Rating: IP66 (water + dust proof)
• Impact Rating: IK10 Magic Glass
• Weatherproof Chassis: Yes
• Auto Brightness Sensor: Yes

OS / Processor / Media
• Operating System: Tizen 6.5
• Embedded Player: MagicINFO 10
• Processor: Quad-Core Cortex A72 1.70GHz
• RAM: 2.5GB LPDDR4

Connectivity
• HDMI: 1
• USB: 1
• Serial (RS-232): Yes
• Ethernet LAN: Yes
• Wireless LAN: Yes
• Bluetooth: Optional external module

Power
• Voltage Input: 120–230V AC

Physical
• Weight: ~8.4 kg
• Dimensions: 57.3 × 34.2 × 6 cm
• Depth: 59.8 mm
• VESA: 100 × 100
• Colour: Black

Included
Display, Power Cable, Remote, Batteries, Ambient Sensor, Setup & Warranty Docs

Please note: some Samsung displays may require additional hardware such as a media player, mount, or OPS module — contact 7Stores before purchasing, especially if you do not have a professional installer. Installation services are available on request.
