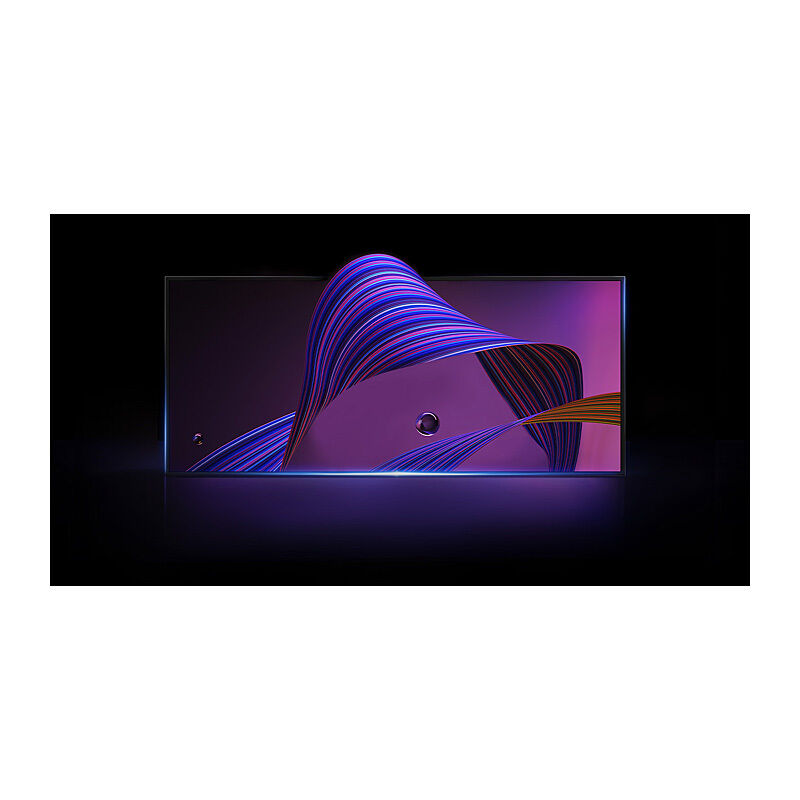

92''5K Display, 21:9, support portrait mode, Android 13, 8G+64G, 2x20W+20W speaker system, MAXHUB OS, 600nits, VESA 800x600, PIR sensor, support OPS62/72 windows system, 24x7 operating hours

Features:

The panoramic viewing angle, large size, and 5K definition blend together to create a display that seamlessly matches the demands of hybrid working, commercial display, command & control, and a host of other professional situations.
  • 92'' 5K (5120x2160) Resolution display
  • 21:9 Aspect Ratio
  • 600 Nit
  • Ultra-wide panoramic vision
  • Portrait and Landscape mode
  • Empowered by Microsoft Teams Rooms
  • 8GB Ram, 64GB Rom
  • Maxhub Meeting OS V6 System

Specifications:

Display

  • Model: UW92NA
  • Screen Size (Inch): 92
  • Aspect Ratio: 21:9
  • Panel: VA
  • Backlight: DLED
  • Brightness: 600 nits
  • Haze: 25%
  • Resolution: 5120 ?? 2160
  • Refresh Rate: 60Hz
  • Contrast Ratio: 5000:1 (typ.)
  • Viewing Angle (H / V): 178?? / 178??
  • Display Orientation Landscape / Portrait
  • Operation Hours (Hours / Day): 24 / 7
  • Response Time: 6.5ms
  • Life Time (50%): =50,000 hours

Built-in System

  • Operating System: Android 13.0
  • CPU: A76 ?? 4 + A55 ?? 4
  • GPU: Mali-G610 MP4
  • RAM: 8 GB
  • ROM: 64 GB
  • System OS: MAXHUB Meeting OS V6
  • Screen share: MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast
  • Device Management: MAXHUB Pivot
  • Protocal Control: RS232 / IP control
  • Special Features: Screen rotation / Auto input change / Play via URL / Wake on LAN / HDMI CEC / Compatible with control systems (Crestron, Q-SYS, and Extron)

Connectivity

  • Input:
    • HDMI IN ?? 4 - HDMI 2.0 ?? 3, HDMI 2.1 ?? 1
    • USB 2.0 ?? 1
    • USB 3.0 ?? 4
    • USB Type-C ?? 1
    • DP IN ?? 1
    • AUDIO IN ?? 1
    • RS232 ?? 1
    • RJ45 IN ?? 1
  • Output
    • HDMI OUT ?? 1
    • TOUCH 2.0 ?? 3
    • AUDIO OUT ?? 1
    • SPDIF ?? 1
    • RJ45 OUT ?? 1
  • OPS Slot: Module slot ?? 1
  • Wi-Fi: Wi-Fi 6
  • Bluetooth: 5.2

 Audio:

  • Sound Channel: 2.1
  • Speaker Power: 2 ?? 20W + 20W

Power:

  • Power Supply: 100-240V~50/60Hz
  • Power Consumption (Energy Saving): 177 W
  • Power Consumption (Typ.): 320 W
  • Power Consumption(Max.): 530 W

Physical Specification:

  • Bezel Width (L ?? R ?? T ?? B): 17.9 / 17.9 / 17.9 / 17.9 mm
                                               0.7 / 0.7 / 0.7 / 0.7 inch
  • Dimension(W*H*D): 2182 ?? 944 ?? 85 mm
                                  85.90 ?? 37.16 ?? 3.35 inch
  • Shipping Dimension(W*H*D):  2360 ?? 1072 ?? 225 mm
                                                 92.91 ?? 42.20 ?? 8.86 inch
  • VESA: 800 ?? 600 mm
  • Net Weight: 43.40 Kg
  • Gross Weight: 62.60 Kg

Environmental Conditions

  • Operating Temperature: 0??C~40??C
  • Storage Temperature: -20??C~60??C
  • Operating Humidity: 10%~90%RH
  • Storage Humidity: 10%~90%RH

Certification

  • Energy Star: Y
  • IP Rating: IP5X

Warranty:

  • Display: 3 years warranty

Accessories

  • Power Cord
  • HDMI Cable
  • Remote Control
  • Wall Mount
  • Wireless Adapter

Optional Module

  • OPS: OPS62A / OPS72A
  • Mobile Stand: ST41B / ST23C
SKU UW92NA
Barcode # 6927433606118
Brand Maxhub
Shipping Weight 10.0000kg
