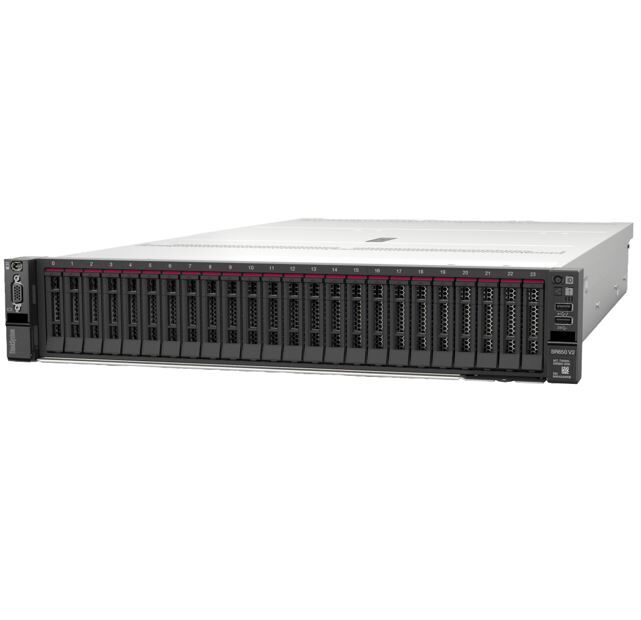

ThinkSystem SR650 V2 1xIntel Xeon Silver 4314 16C 2.4GHz 135W 1x32GB 2Rx8 SW RD 1x750W XCC Enterprise 3-year warranty



The Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

  • Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
  • RAID provides data reliability, fault tolerance and improves overall performance
  • 1 x 750 W power supply unit (PSU) included
  • 32 GB powerful memory for any computational task



SPECIFICATIONS

Network & Communication
Ethernet Technology Gigabit Ethernet
Chipset
Chipset Manufacturer Intel
Chipset Model C621A
Controllers
Controller Type Serial ATA
RAID Supported Yes
Display & Graphics
Graphics Controller Model G200
Graphics Memory Capacity 16 MB
Storage
Optical Drive Type No
Total Hard Drive Capacity No
Miscellaneous
Security Features
  • Chassis intrusion switch
  • Power-on password
  • Administrator's password
  • Trusted Platform Module (TPM), supporting TPM 2.0
Environmentally Friendly Yes
Energy Star Yes
Energy Efficiency Certification China Energy Conservation Program (CECP)
I/O Expansions
"Number of Internal 2.5"" Bays" 8
Number of Total Expansion Bays 8
Total Number of Expansion Slots 3
Hot Swappable Bays Yes
Number of SFF Bays 8
PCI Express Details 3 (x16, x8, x8) Gen4
Physical Characteristics
Weight (Approximate) 38.80 kg
Form Factor Rack
Rack Height 2U
Height 86.4 mm
Width 444.5 mm
Depth 764.5 mm
Interfaces/Ports
VGA Yes
Network (RJ-45) Yes
Remote Management Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 1
Number of VGA Ports 2
Number of USB 3.1 Type-A Ports 4
Remote Management Controller XClarity Controller (XCC) Enterprise
Power Description
Input Voltage 120 V AC
  230 V AC



Power Source Power Supply
Plug/Connector Type C13
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Hot Swappable Power Supply Yes
Maximum Power Supply Wattage 750 W
Processor
Cache 24 MB
Processor Speed 2.40 GHz
Processor Type Xeon Silver
Processor Model 4314
Processor Core Hexadeca-core (16 Core)
Number of Processors Supported 2
Number of Processors Installed 1
Processor Generation 3rd Gen
General Information
Product Type Server
Manufacturer Part Number 7Z73A03UAU
Manufacturer Website Address http://www3.lenovo.com/au/en
Manufacturer Lenovo Group Limited
Product Model 7Z73A03UAU
Product Name ThinkSystem SR650 V2 7Z73A03UAU Server
Product Line ThinkSystem
Product Series SR650 V2
Brand Name Lenovo
Memory
Error Checking ECC
Maximum Memory Supported 8 TB
Signal Processing Registered (Buffered)
Standard Memory 32 GB
Memory Technology TruDDR4
Number of Occupied Memory Slots 1
Intel Optane Memory Ready Yes
Memory Clock Speed 3.20 GHz
Total Number of Memory Slots 32
Operating System
Operating System No
Operating System Supported Red Hat Enterprise Linux 9.1
  SUSE Linux Enterprise Server 12 SP5
  SUSE Linux Enterprise Server 15 SP2
  SUSE Linux Enterprise Server 15 SP3
  Red Hat Enterprise Linux 7.9
  Red Hat Enterprise Linux 8.2
  Red Hat Enterprise Linux 8.3
  Red Hat Enterprise Linux 8.4
  Red Hat Enterprise Linux 8.5
  Red Hat Enterprise Linux 8.6
  Red Hat Enterprise Linux 8.7
  Red Hat Enterprise Linux 9.0
  SUSE Linux Enterprise Server 15 SP4
  Ubuntu 18.04 LTS
  Ubuntu 20.04 LTS
  Ubuntu 22.04 LTS
  Windows Server 2016
  Windows Server 2019
  Windows Server 2022



SKU 7Z73A03UAU
Barcode # SVL-SR650V2
Brand Lenovo
Shipping Weight 6.0000kg
