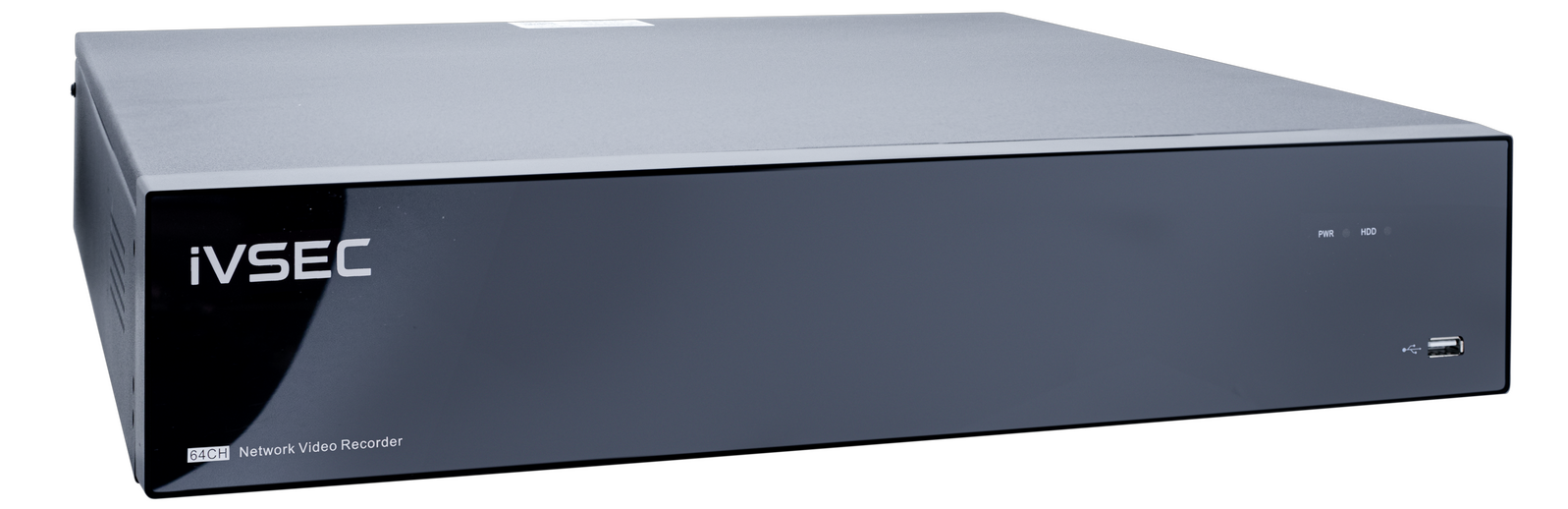

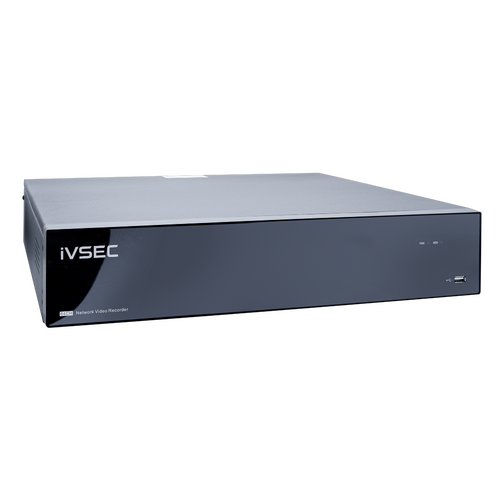

IVSEC NR6648EX NVR

64 Channel 12MP 8-Bay Enterprise 4K HDMI Network Video Recorder with Advanced IVS

The IVSEC NR6648EX NVR is an enterprise-grade 64-channel network video recorder designed for large-scale surveillance projects where performance, storage capacity, and intelligent analytics are paramount. Supporting 12MP ultra-high definition video per channel with a robust 640 Mbps incoming bandwidth, this recorder ensures crystal-clear, uninterrupted recording from multiple IP cameras simultaneously—making it the ultimate backbone for professional surveillance networks.

Built with 8 HDD bays capable of holding up to 192TB of storage, the NR6648EX is engineered for enterprises that demand long-term video retention without compromise. From airports, casinos, universities, data centres, logistics facilities, retail chains, to government organisations, this NVR delivers reliable, large-capacity storage that meets the challenges of modern surveillance infrastructures.

High-Performance Storage and RAID Protection

With 8 independent bays, each supporting 24TB HDDs, this NVR provides 192TB of scalable storage capacity. The inclusion of advanced RAID configurations (RAID0/1/5/6/10) ensures data redundancy, maximising uptime and protecting critical footage against drive failures. This makes the NR6648EX a trusted solution for mission-critical security environments.

Advanced Intelligent Video Analytics (IVS)

When paired with compatible IVSEC cameras, the NR6648EX enables powerful AI-driven intelligent video surveillance features, including:

• Face Recognition for access control and identity verification

• Human & Vehicle Detection to distinguish critical events

• Perimeter Intrusion & Line Crossing Detection for proactive security

• Heat Mapping & Crowd Density Monitoring for operational analysis

• Queue Length Detection for retail and public spaces

• License Plate Recognition (LPR) for vehicle access management

• Video Tampering & Rare Sound Detection for anomaly alerts

These AI-powered video analytics help businesses and organisations respond faster and smarter, improving both security and efficiency.

Flexible Monitoring and Remote Control

Equipped with 4 HDMI outputs and support for multi-screen layouts up to 64 channels, this NVR transforms any control room into a powerful security command centre. Operators can monitor multiple live feeds simultaneously or review recordings with advanced search tools, such as time-lapse playback, snapshot slicing, and event-based searches, ensuring critical footage is located quickly.

Remote access is supported via the IVSEC CMS/VMS software and mobile app, allowing 24/7 monitoring, playback, and management from anywhere in the world.

Built for Enterprise Environments

With its dual Gigabit Ethernet ports, internal power supply, and rugged build quality, the NR6648EX is engineered for continuous 24/7 operation. Operating in conditions from -10°C to +50°C with humidity tolerance up to 90%, it is designed for reliability in both climate-controlled data centres and harsher industrial environments.

Available now at 7stores.au, the IVSEC NR6648EX NVR delivers the perfect balance of power, expandability, and intelligent surveillance management, making it an ideal choice for large-scale and mission-critical security deployments.

Why Buy the IVSEC NR6648EX from 7stores.au?

• 64-channel enterprise-class NVR with 12MP video support

• 640 Mbps bandwidth for seamless high-resolution recording

• 8-bay design with 192TB storage capacity for long-term retention

• RAID redundancy options for maximum data protection

• AI-powered analytics including face recognition and LPR

• 4K HDMI outputs for multi-display security control rooms

• Dual Gigabit Ethernet ports for network reliability

• Mobile and remote monitoring via IVSEC software and apps

• Backed by 7stores.au expert support and 2-year parts warranty

Technical Specifications

• Maximum Channels: 64

• Maximum Video Resolution: 12MP

• Bandwidth: 640 Mbps

• Video Compression: H.264, H.265, H.264+, H.265+

• Video Output Resolution: 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1.0MP (720P)

• Image Display Modes: 1–64 layouts

• Intelligent Video (with compatible cameras): Face Recognition, Human & Vehicle Detection, Intrusion Detection, Line Crossing, Heat Mapping, Queue Monitoring, Crowd Density, License Plate Recognition, Video Tampering, Rare Sound Detection

• Search Methods: Continuous, Scheduled, Event-Triggered, Snapshot Search, Tagging, Time-Lapse, Slice (multi-thumbnail search), Timeline Search

• Total Storage Potential: 192TB

• HDD Bays: 8 × SATA (up to 24TB each)

• RAID Options: RAID0, RAID1, RAID5, RAID6, RAID10

• Audio Streaming: Audio Out

• Network Ports: 2 × Gigabit Ethernet RJ-45

• Video Outputs: 4 × HDMI, VGA

• Other Ports: USB2 × 2, e-SATA × 1, Alarm ports (8 in / 1 out), RS485, Audio Out, Power Input, On/Off Switch

• Power Supply: Internal

• Power Consumption: 8W (without HDD)

• Operating Environment: -10°C to +50°C, <90% RH

• Dimensions (H × W × L): 89 × 460 × 440 mm

• Packaging Dimensions: 220 × 580 × 540 mm

• Weight (Net/Gross): 8.6 kg / 8.9 kg

• In The Box: Quick installation guide, Mouse, HDD screws, Power supply

• Warranty: 2 Years Parts
