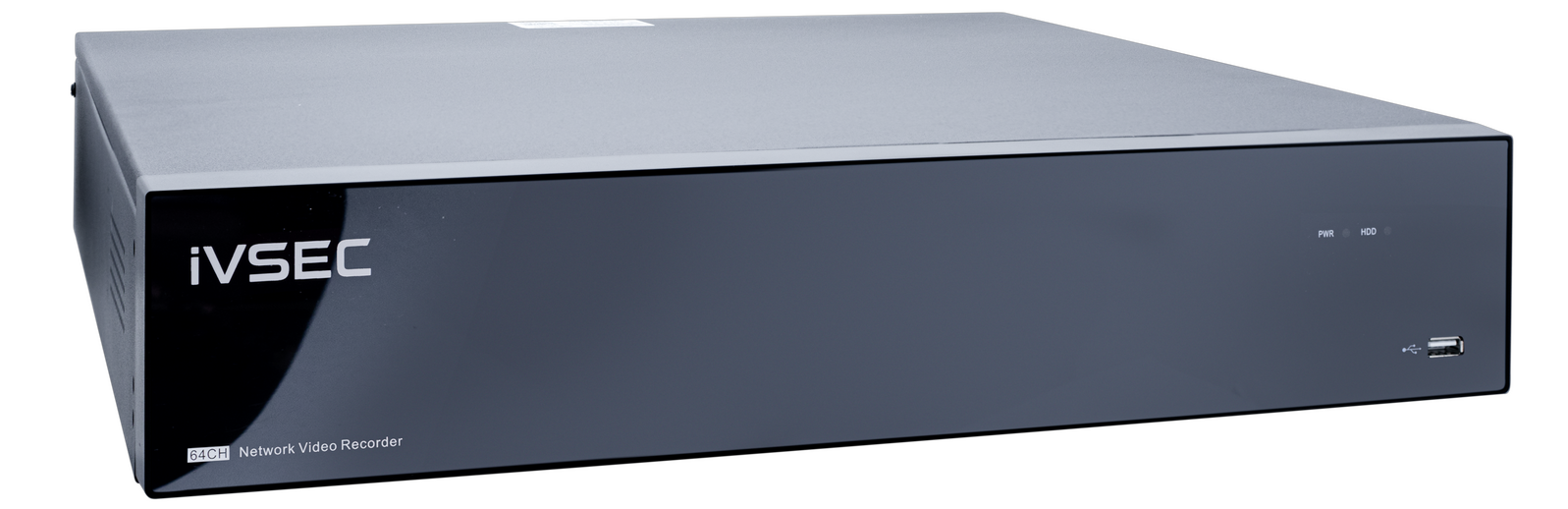

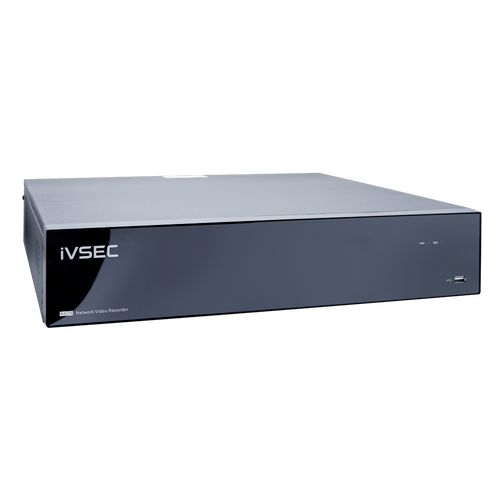

IVSEC NR6256EXA NVR – 256 Channel Enterprise-Grade 12MP NVR

16 Bays, 4K HDMI, Advanced IVS

The IVSEC NR6256EXA NVR represents the pinnacle of enterprise-level video recording technology, engineered for large-scale surveillance environments that demand unparalleled performance, reliability, and scalability. Designed to manage up to 256 channels simultaneously, this recorder is the ultimate backbone for expansive security infrastructures such as airports, shopping centres, universities, stadiums, and critical infrastructure sites.

With an extraordinary incoming bandwidth of 1024 Mbps, the NR6256EXA guarantees smooth video streaming across multiple ultra-high-resolution cameras without compromise. Supporting up to 12MP resolution, it ensures that every detail is captured with remarkable clarity, even across extensive multi-camera networks.

Unmatched Storage Capacity & RAID Protection

Built for long-term retention, the NR6256EXA comes with 16 SATA bays supporting up to 24TB each, delivering an astounding maximum storage potential of 384TB. Whether you’re archiving footage for compliance or security investigations, this NVR ensures you never run short of space. With full RAID (0/1/5/6/10) configurations, your data is further safeguarded against potential drive failures, guaranteeing redundancy, reliability, and continuous operation.

Multi-Display Control Room Performance

Equipped with four independent HDMI outputs, the NR6256EXA is designed for professional-grade control rooms. Multiple camera feeds can be displayed simultaneously across different monitors, creating a comprehensive, real-time monitoring hub that enhances situational awareness and enables rapid decision-making during critical events.

Advanced Intelligent Video Analytics (IVS)

When combined with compatible cameras, this NVR supports a full suite of AI-driven intelligent video analytics, including perimeter intrusion detection, face recognition, license plate recognition, human and vehicle detection, heat mapping, queue length analysis, crowd density detection, and rare sound alerts. These capabilities transform traditional surveillance into proactive security monitoring, enabling early detection, swift response, and reduced false alarms.

Enterprise-Ready Scalability & Remote Access

The NR6256EXA seamlessly integrates with IVSEC CMS/VMS platforms and the IVSEC mobile app, enabling centralised multi-site management and remote access from anywhere. Its compatibility with ONVIF standards ensures interoperability with a wide range of third-party IP cameras, making it a flexible, future-proof investment for growing organisations.

Built for Reliability in Demanding Environments

Constructed with enterprise-grade hardware, the NR6256EXA is designed to withstand continuous operation in demanding environments. Its robust internal power supply, low power consumption (8W without HDD), and extensive protocol support make it an efficient and highly adaptable surveillance solution.

Available at 7stores.au, this NVR combines scalability, intelligent features, and massive storage capacity, delivering a reliable and professional-grade solution for organisations that refuse to compromise on security.

Why Buy the IVSEC NR6256EXA NVR from 7stores.au?

• Enterprise-grade NVR with 256 channels for the largest-scale deployments.

• 12MP recording capability with 1024 Mbps bandwidth ensures flawless multi-camera streaming.

• Massive 384TB storage capacity with 16 SATA bays (up to 24TB per HDD).

• RAID 0/1/5/6/10 support for maximum redundancy and reliability.

• 4 × HDMI 4K outputs for multi-monitor control room displays.

• AI-powered IVS including face recognition, vehicle detection, license plate recognition, heat maps, and intrusion detection.

• Advanced search tools: snapshot search, timeline search, tagging, and time-lapse.

• Comprehensive protocol support: ONVIF, TCP/IP, HTTP/HTTPS, FTP, SMTP, PPPOE, DDNS, SNMP.

• User-friendly CMS/VMS integration with remote access via mobile app.

• Professional build quality, internal power supply, and reliable 2-year warranty.

• Available with expert support and fast shipping from 7stores.au.

Technical Specifications

• Maximum Channels: 256

• Max Video Resolution: 12MP

• Bandwidth: 1024 Mbps incoming

• Video Compression: H.264, H.264+, H.265, H.265+

• Video Output Resolution: 4K UHD, 1080p, 720p, 1.3MP, D1, VGA

• Display Layouts: 1–64 channels, multiple grid options up to 64

• Intelligent Video (with compatible cameras): Perimeter Intrusion, Face Recognition, Human & Vehicle Detection, License Plate Recognition, Heat Map, Crowd Density, Queue Length, Rare Sound Detection, Video Tampering

• Search Methods: Continuous, Scheduled, IVS-Triggered, Snapshot Search, Time Lapse, Tagging, Multi-Thumbnail Slice Search

• Storage: 16 bays, up to 24TB each (max 384TB)

• RAID: 0, 1, 5, 6, 10

• Audio Streaming: Audio Out

• Power Supply: Internal

• Power Consumption: 8W (without HDD)

• Connectors: 16 × SATA, 2 × USB3, 1 × USB2, 2 × Gigabit Ethernet, 4 × HDMI, 1 × e-SATA, Alarm ports (16 in, 4 out), RS485, Audio out

• Network Protocols: TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DNS, DDNS, NTP, PPPoE, UPnP, SMTP, P2P

• Operating Environment: -10°C to 50°C, <90% RH

• Dimensions (H × W × L): 189 × 460 × 440 mm

• Packaging Dimensions: 220 × 580 × 540 mm

• Weight (Net/Gross): 13.7 kg / 14 kg

• In The Box: Quick installation guide, Mouse, HDD screws, Power supply

• Warranty: 2 Years Parts
