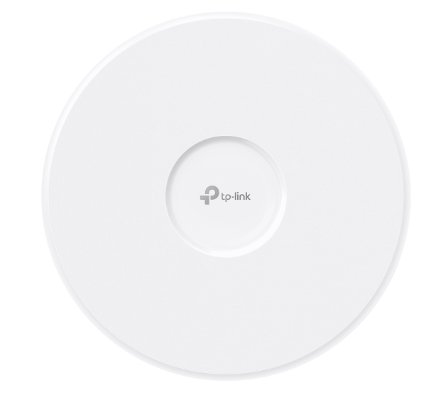

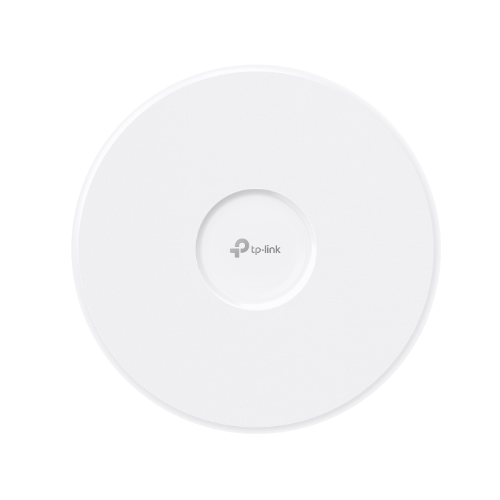

BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

(Wi-Fi 7 / 6 GHz, 5 GHz, 2.4 GHz)

Overview

• High-performance ceiling/wall-mount Wi‑Fi 7 access point with tri-band coverage on 6 GHz, 5 GHz, and 2.4 GHz.
• 2× 10G Ethernet Ports for high-speed backhaul with 20G aggregation speed.
• Internal omni antennas delivering broad, reliable coverage up to 200 m²; supports up to 760+ concurrent clients.
• Centralized management via Omada with OC300/OC200, Omada Software Controller, or Omada Cloud-Based Controller.
• Power options include 802.3bt PoE++ or 12V DC (power adapter not included).

Hardware & Connectivity

• Interfaces: 2× 10G Ethernet Ports (20G Aggregation Speed)
• Power Supply: 802.3bt PoE++, 12V DC (power adapter not included)
• Max Power Consumption: 39 W
• Dimensions (W×D×H): 11.0 × 11.0 × 1.8 in (280 × 280 × 46.5 mm)
• Antenna: Internal Omni
  • 2.4 GHz: 4× 4 dBi
  • 5 GHz: 4× 5.5 dBi
  • 6 GHz: 4× 5 dBi
• Bluetooth: Yes
• Mounting: Ceiling / Wall mounting (kits included)
• Weight: Net 1384.6 g

Wireless & Performance

• Coverage: Up to 200 m² (2150 ft²)
• Concurrent Clients: 760+ (typical)
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Bandwidth: 6 GHz, 5 GHz, and 2.4 GHz
• Theoretical Peak Rates:
  • 6 GHz: Up to 11,520 Mbps
  • 5 GHz: Up to 5,760 Mbps
  • 2.4 GHz: Up to 1,376 Mbps
• Wireless Features: MLO, 4K-QAM, 4×4 MU-MIMO DL/UL, HE320 (320 MHz), Mesh, AI Roaming, Automatic Channel Selection and Power Adjustment, BSS Coloring, UL/DL OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs, Wireless Statistics/Schedule/Reboot Schedule, RADIUS Accounting, MAC Authentication, Static/Dynamic IP

Security & Management

• Wireless Security: PPSK, VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, MAC Filtering (up to 4,000), Wireless Isolation between Clients
• Supported WPA: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
• Management: Omada App (Yes), Restore & Backup, Firmware updates via Web, NTP
• Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud-Based Controller
• Cloud Access: Yes (requires OC300/OC200 or Omada Controller/Cloud)
• Access & Monitoring: Email Alerts, LED On/Off, Management MAC Access Control, SNMP v1/v2c/v3, SSH, Web-based Management

Environment & Certifications

• Certifications: CE, FCC, RoHS, IC
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing

What's in the Box

• BE19000 Access Point
• Ceiling/Wall Mounting Kits
• Installation Guide

Notes

• Power adapter is not included. Requires 802.3bt PoE++ switch or separate power supply for deployment.
