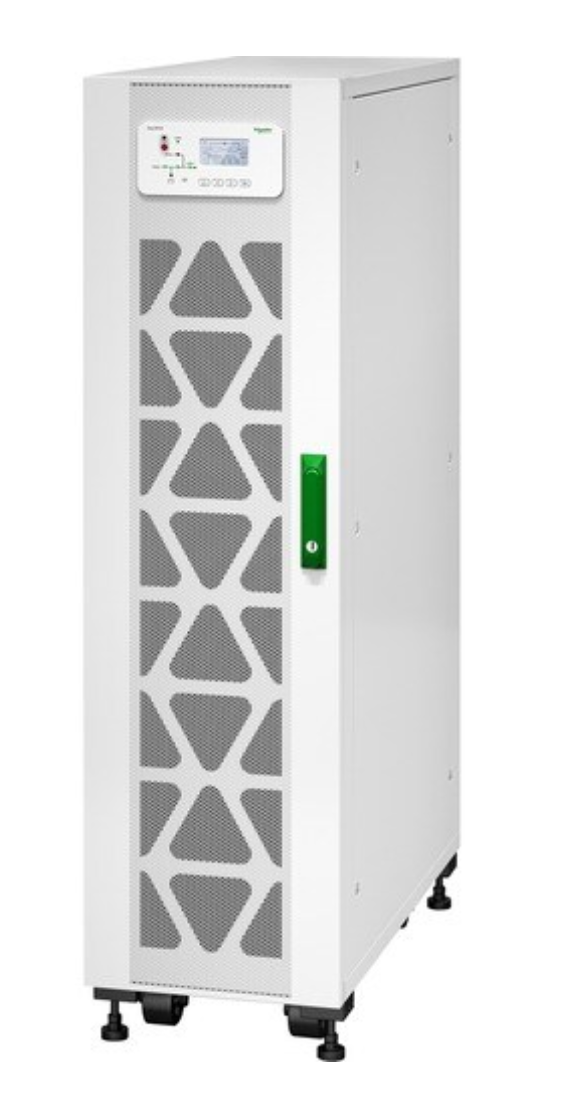

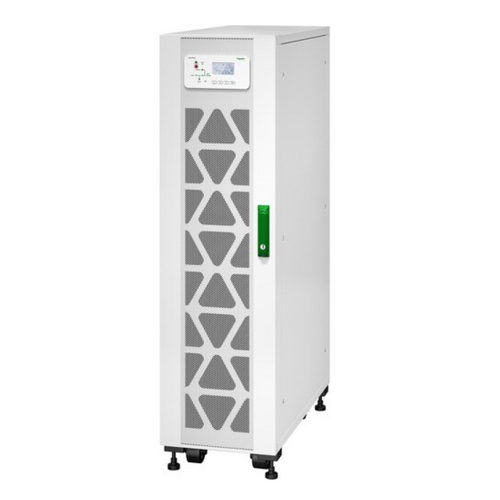

Easy UPS 3S 10 kVA 400 V 3:1 UPS for internal batteries



High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.



Interfaces/Ports
EPO Port Yes
Miscellaneous
Environmentally Friendly Yes
Battery Information
Battery Characteristics Sealed Lead Acid (SLA)
DC System Voltage 240 V DC
Technical Information
Application/Usage Business
  Data Center
Phase Three Phase
Physical Characteristics
Weight (Approximate) 130 kg
Form Factor Tower
Height 1400 mm
Width 380 mm
Depth 907 mm
Environmental Conditions
Thermal Dissipation 516 BTU/h
Maximum Operating Temperature 40°C
Maximum Operating Elevation 984.30 m
Maximum Storage Elevation 15 km
Environmental Sensors Temperature Sensor
Sound Emission (A-Weighted) 60 dB(A)
General Information
Product Type Double Conversion Online UPS
Manufacturer Part Number E3SUPS10K3IB
Manufacturer Website Address http://www.schneider-electric.com.au
Manufacturer Schneider Electric SA
Product Name Easy UPS 3S 10kVA Tower UPS
Product Line Easy UPS 3S
Brand Name APC by Schneider Electric
Power Description
Input Voltage 415 V AC
  380 V AC
  400 V AC
Output Voltage 220 V AC
  230 V AC
  240 V AC
Input Voltage Range 304 V AC - 477 V AC
Output Frequency 60 Hz
Input Frequency 65 Hz
Load Capacity (VA) 10 kVA
SKU E3SUPS10K3IB
Barcode # 731304340720
Brand APC
Shipping Weight 5.0000kg
