D-Link 54-Port 10GBASE-T Layer 3 Stackable Managed Switch with 6 QSFP+/QSFP28 Uplinks – High-Performance Data Centre Aggregation | 7stores.au

Designed to empower high-throughput enterprise networks, the D-Link DXS-3610-54T Layer 3 Stackable Managed Switch delivers industry-grade speed, intelligent routing, and unparalleled scalability. With 48 10GBASE-T copper ports and 6 high-bandwidth uplink ports supporting 40G/100G QSFP+/QSFP28, this switch is engineered for the demands of data centres, large enterprises, and multi-layer network infrastructures that require massive switching capacity and futureproof flexibility.

With a switching capacity of up to 2.16 Tbps and physical stacking bandwidth of 1.2 Tbps, the DXS-3610-54T ensures zero bottlenecks even in the most data-intensive environments. Built-in Layer 3+ capabilities, including support for OSPF, RIPng, PIM-SM, VRRP, and static routing, allow seamless inter-VLAN communication, resilient routing paths, and full IP network segmentation.

Its OpenFlow 1.3 compliance makes this a Software-Defined Networking (SDN)-ready switch, while Switch Resource Management (SRM) enables customizable system resource allocation depending on deployment use-case — whether it’s routing, switching, or MPLS.

The modular architecture ensures operational continuity with 1+1 redundant power supplies, N+1 hot-swappable fans, and intelligent cooling design. This enterprise switch includes intelligent diagnostics, cable testing, and loopback detection, making it ideal for modern IT administrators seeking control, scalability, and reliability from the access to the core layer.

Whether you're scaling out an enterprise backbone or upgrading your data centre fabric, the DXS-3610-54T delivers unmatched performance with copper-based 10G connectivity and ultra-high-speed fibre uplinks, all backed by 7stores.au, your trusted provider of next-gen IT infrastructure in Australia.

Why D-Link DXS-3610-54T from 7stores.au?

• Enterprise-Grade 10GBASE-T Switching:
  Features 48 high-speed 10G copper ports, perfect for environments where existing Cat6a/Cat7 cabling is used to eliminate the cost of fibre.

• Ultra-Fast QSFP+/QSFP28 Uplinks:
  Six 40/100Gb uplink ports support high-bandwidth interconnects for spine-leaf topologies, SDN, and long-distance backbone extension.

• Scalable Stackable Architecture:
  Stack up to 12 physical switches with 1.2 Tbps stacking bandwidth, and manage up to 32 virtual devices from a single console.

• Layer 3+ Intelligent Routing:
  Supports advanced IP routing protocols such as OSPF, RIPng, PIM-SM, and VRRP, giving you a resilient, highly available, and intelligent Layer 3 network.

• Data Centre Ready:
  With Switch Resource Management (SRM) and SDN-ready features like OpenFlow 1.3, this switch is tailor-made for high-performance computing and virtualization.

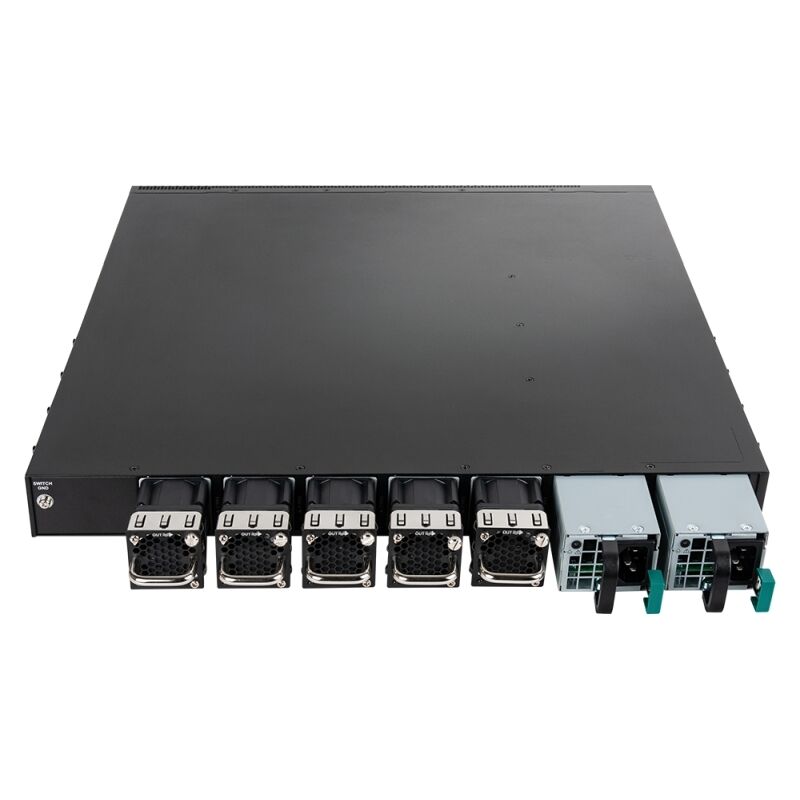

• Reliable Modular Design:
  Offers redundant PSU (1+1) and fan tray (N+1) with real-time load sharing, built for mission-critical network uptime.

• Enhanced Security & QoS:
  Features 802.1X access control, DHCP screening, guest VLANs, and full Quality of Service (QoS) prioritization.

• Sustainable & Compliant:
  EEE energy-saving technology, RoHS 6 compliance, and D-Link Green standards reduce operational costs and carbon footprint.

• Available at 7stores.au with Local Warranty:
  Enjoy peace of mind with limited lifetime warranty, expert Australian-based support, and fast local delivery through 7stores.au.

Specifications — Short Points

• Switching Capacity: 2.16 Tbps

• Forwarding Rate: 1,607.14 Mpps

• Ports:

  • 48 × 10GBASE-T Copper Ports

  • 6 × 40G/100G QSFP+/QSFP28 Ports

• Stacking:

  • Up to 12 Physical Units

  • Up to 32 Virtual Units

  • Stacking Bandwidth: 1.2 Tbps

• Layer 3+ Features: Static Routing, OSPF, RIPng, PIM-SM, VRRP

• MPLS Upgradeable: Yes (License required)

• Redundant Power Supply Support: 1+1 Hot-swappable

• Fan System: 5 × Smart Hot-swappable Fans (N+1 Redundancy)

• Jumbo Frame: 9416 bytes

• Routing Table Size: 32K

• QoS & Security: 802.1X, DHCP Snooping, ACLs, Guest VLAN

• Energy Efficiency: EEE Compliant | D-Link Green | RoHS 6

• Management: CLI, SNMP, Web GUI, USB 2.0

• Mounting: 19” Rackmount

• Dimensions: 441 × 487 × 44 mm

• Warranty: Limited Lifetime Warranty
