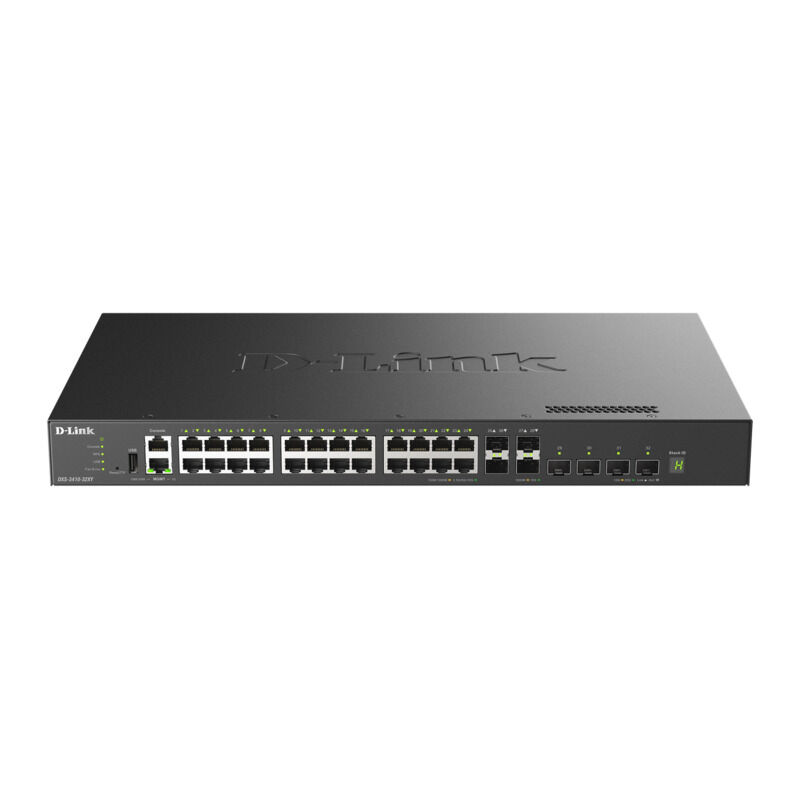

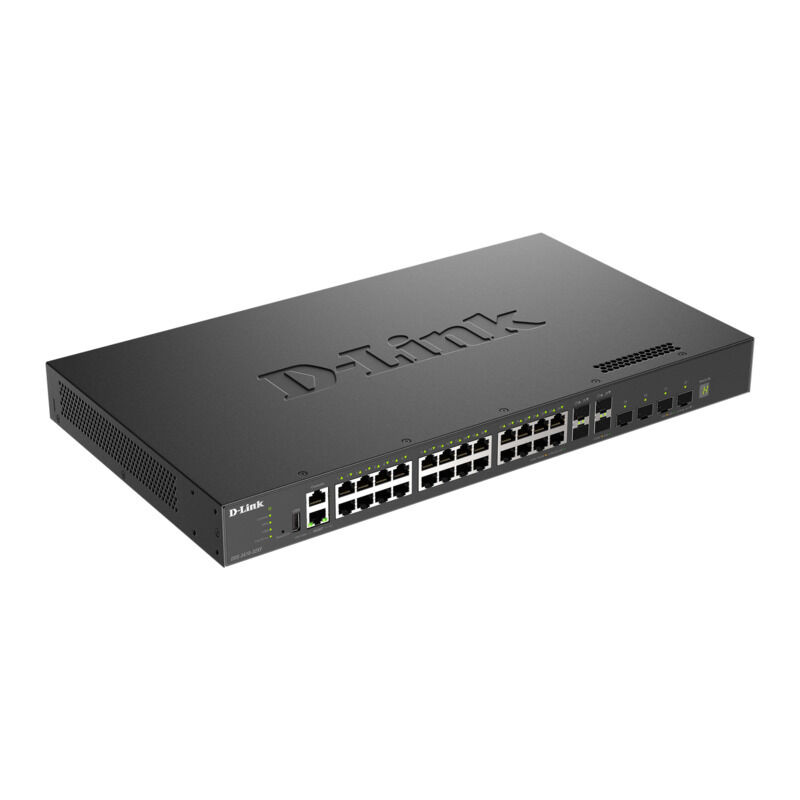

D-Link DXS‑3410‑32XY Layer 3 Stackable 10 Gigabit Managed Switch – High‑Performance 10G/25G Networking | Available at 7stores.au

Engineered for mission‑critical environments, the D-Link DXS‑3410‑32XY is an advanced Layer 3 stackable switch delivering ultra-reliable 10G/25G connectivity and enterprise-grade performance. With flexible 10GBase-T (copper) and SFP+ fiber access ports, alongside 25G SFP28 uplinks, this switch enables high-speed data flows across campus, data centre, and aggregation networks.

Supporting up to nine switches in a single physical stack or 32 units virtualised, the DXS‑3410‑32XY offers unparalleled scalability and network management simplicity. Its 200 Gbps stacking bandwidth ensures low-latency performance even under peak traffic, while Data Centre Bridging (DCB) delivers lossless Ethernet when reliability is paramount.

Packed with a rich feature set—including Ethernet Ring Protection Switching (ERPS), VRRP, OSPF, MAC and IP ACLs, and sophisticated IGMP/MLD snooping—this switch offers comprehensive control over routing, resilience, and security. With a network switching capacity of 760 Gbps and packet forwarding speeds up to 565 Mpps, the switch optimises performance and removes bottlenecks in heavy-use environments.

Managed through a powerful yet intuitive web GUI, or via CLI and SNMP, network operators gain full visibility and control over traffic. For future-focused enterprises, the DXS‑3410‑32XY offers modularity, performance, and robustness. Now available at 7stores.au, this switch is a strategic investment in your network’s future.

Why Choose the D-Link DXS‑3410‑32XY from 7stores.au?

• Flexible High-Speed Networking: 24 hybrid 10GBase-T ports and 8 fibre uplinks (4 x 10G SFP+, 4 x 25G SFP28) accommodate varying access and backhaul needs.

• Massive Scalability: Supports up to 9 units in a physical stack and 32 in a virtual stack with 200 Gbps per unit, ideal for large, distributed deployments.

• Comprehensive Layer 2 & 3 Features: Includes ERPS, VRRP, OSPF, static routing, ACLs, and Flow Mirroring for enterprise-class redundancy and traffic management.

• Resilient and Reliable: Features redundant power supply support, smart cooling, and multiple configuration images for fault tolerance.

• Enterprise Security: Offers 802.1X, MAC/IP filtering, DHCP snooping, and advanced VLAN control to secure your network.

• High Throughput & Low Latency: With 760 Gbps switching capacity and 565.44 Mpps throughput, even the most demanding networks operate smoothly.

• Energy-Efficient: Designed with EEE compliance and RoHS 6, combining performance with sustainability.

• Easy Management: Friendly web GUI, CLI, SNMP access, USB console, and cable diagnostics ensure easy monitoring and configuration.

• Local Availability: Purchase via 7stores.au for fast shipping, Australian warranty support, and expert advice.

Specifications — Summary

• Ports:

  • 24 × 100M/1/2.5/5/10GBase-T (copper)

  • 4 × 10G SFP+ (fibre)

  • 4 × 25G SFP28 (uplinks)

• Stacking:

  • Physical: Up to 9 units (200 Gbps bandwidth per unit)

  • Virtual: Up to 32 units

• Switching Capacity: 760 Gbps

• Packet Forwarding Rate: Up to 565.44 Mpps

• Routing & Resilience: VRRP, Static Routing, RIPng, OSPF, DCB

• Layer 2: Flow Control, Link Aggregation, ERPS, STP, Loop Detection, IGMP/MLD Snooping

• Security: 802.1X, ACLs, DHCP Snooping, MAC/IP Filtering

• High Availability: Dual firmware images, redundant PSU support

• Port Diagnostics: Cable diagnostics & loopback

• Form Factor: 1U rackmountable

• Fans: 3 smart internal fans

• Console & USB: RJ45 console port, USB 2.0

• Power Supply: 100–240 VAC, optional DPS-500A/DC redundant modules

• # Compliance: EEE, RoHS 6

• Dimensions: 441 × 250 × 44 mm

• Warranty: Limited Lifetime
