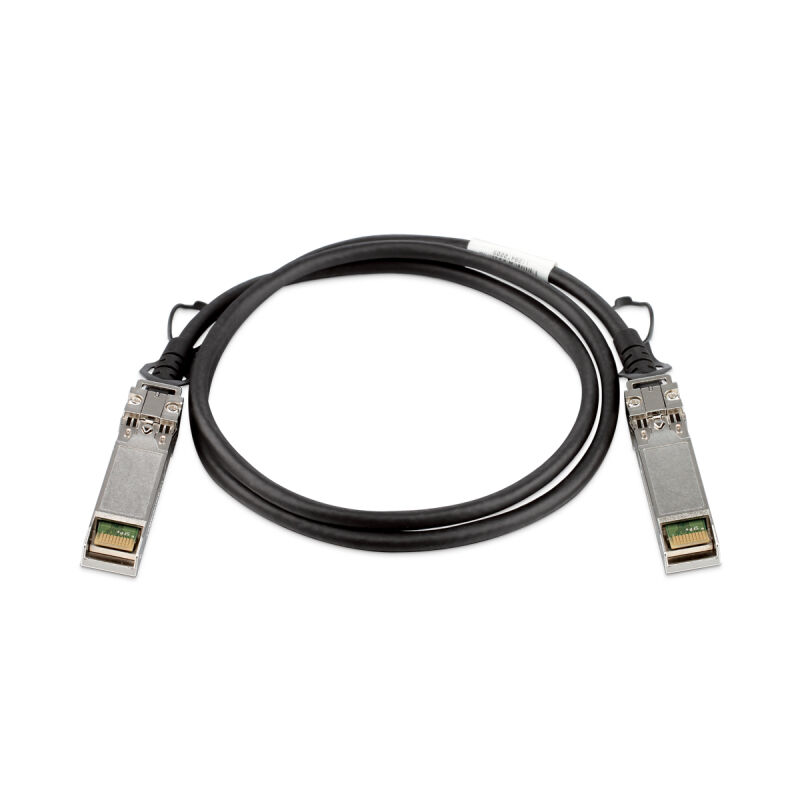

The 10G Passive SFP+ Twinaxial Direct Attach Cable is designed to support connections1 for 10Gbps Gigabit Ethernet or Gigabit Ethernet switches with 10Gbps Gigabit Ethernet uplink

Specifications:

  • Length: 1 m
  • Device Rate: 10 Gbps Gigabit Ethernet
  • Connector Type: SFP+ Cable Assembly
  • Wire AWG: 30 AWG
  • VMA Loss to Crosstalk Ratio (VCR): Min.: 32.5 dB
  • Minimum Cable Bend Radius: 23.5 mm (0.93 inches)
  • Cable Characteristic Impedance: 100 Ohms
  • Voltage: 30 V AC
  • Current: 0.5 A
  • Temperature Operating: -40 to 85 ??C (-40 to 185 ??F)
  • Certifications: SFP MSA (Multi-Source Agreement), SFF-8431, EIA 364, UL 94

Features:

  • SFP+ (Enhanced Small Form-factor Pluggable)
  • Ideal for High-Bandwidth Operations
  • High speeds and lower latency result in faster transmissions than other types of cables
  • Cost-effective Solution
  • Energy Efficiency
SKU DEM-CB100S
Barcode # 790069365102
Brand D-Link
Shipping Weight 5.0000kg
