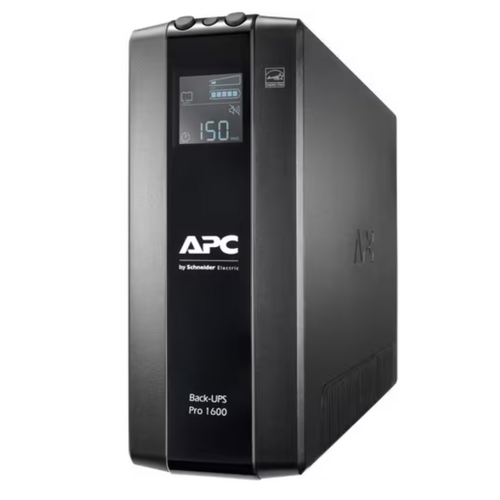

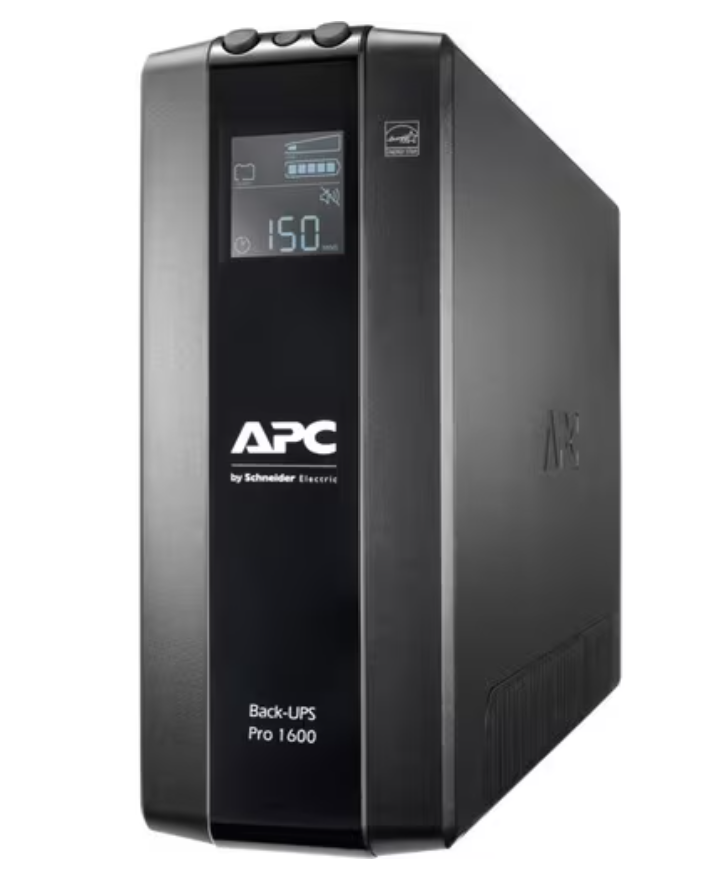

APC Back-UPS Pro, Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery



This product is part of the Back-UPS Pro range. This 1600VA UPS has 8 total outlets, 6 outlets provide UPS power backup and surge protection, 2 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 1 hour 8 minutes. Its dimensions are 25 x 10 x 38.2 cm and 10.9kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.

  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 2.60 minute at full load
  • 1.60 kVA load capacity - work without any interruption during power outages
  • 960 W load capacity - backup power for your valuable electronics



Controls/Indicators
Status Indicators

LCD Status Display:

  • Multiple Status
  • Load Bar Graphs
  • Battery Bar Graphs
Interfaces/Ports
USB (HID Compliant) Port Yes
Miscellaneous
Environmentally Friendly Yes
Management
Alarm Replace Battery
  Overload
  Low Battery
  On Battery
Environmental Conditions
Thermal Dissipation 21.50 BTU/h
Maximum Operating Temperature 40°C
Maximum Operating Elevation 3 km
Maximum Storage Elevation 15 km
Sound Emission (A-Weighted) 45 dB(A)
Physical Characteristics
Weight (Approximate) 10.90 kg
Form Factor Tower
Height 100 mm
Width 250 mm
Depth 382 mm
Battery Information
Battery Chemistry Lead Acid
Hot Swappable Yes
Backup/Run Time (Half Load) 10.40 Minute
Backup/Run Time (Full Load) 2.60 Minute
Battery Characteristics Maintenance-free, Sealed, Water-proof
Replaceable Battery Yes
Typical Battery Recharge Time 16 Hour
General Information
Product Type Line-interactive UPS
Manufacturer Part Number BR1600MI
Manufacturer Website Address http://www.schneider-electric.com.au
Manufacturer Schneider Electric SA
Product Model BR1600MI
Product Name Back-UPS Pro BR1600MI 1.6KVA Tower UPS
Product Line Back-UPS Pro
Product Series BR
Brand Name Schneider Electric
Power Description
Input Voltage 230 V AC
Output Voltage 230 V AC
Surge Energy Rating 509 J
Waveform Type Stepped Approximated Sine Wave
Input Voltage Range 176 V AC - 294 V AC
Output Frequency 60 Hz
Input Frequency 60 Hz
Load Capacity (VA) 1.60 kVA
Load Capacity (Watt) 960 W
Technical Information
Application/Usage Surveillance System
  Tablet
  Workstation
  Business
  Computer
  Electronic
  Equipment
  Gaming Console
  Home
  Mission Critical Equipment
  Modem
  Multimedia Device
  Office
  Router
  Smartphone
  Storage Device
Dataline Protection RJ-45
Overload Protection Yes
Plug/Connector Type IEC 60320 C14
Receptacle Type IEC 60320 C13
AVR Yes
Number of Surge-only Outlets 2
Transfer Time 0 ns

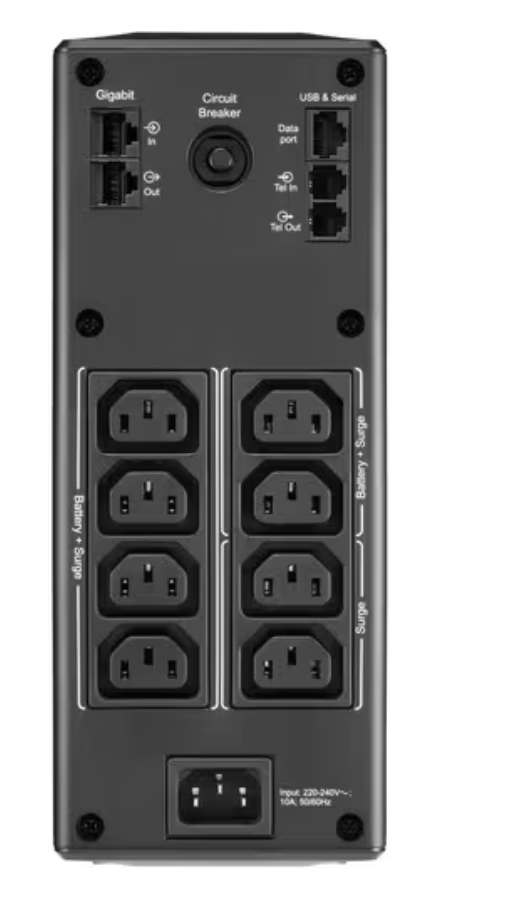

Receptacle Detail 8 x IEC 60320 C13
SKU BR1600MI
Barcode # 731304346913
Brand APC
Shipping Weight 5.0000kg
