D-Link DIS-210G-12 Industrial Smart Managed Gigabit Switch

The D-Link DIS-210G-12 Industrial Switch is a high-performance industrial smart managed switch designed for demanding industrial environments requiring reliable Gigabit networking, advanced Layer 2 management, and rugged industrial protection. Built for manufacturing facilities, transportation systems, surveillance networks, industrial automation, smart infrastructure, and harsh outdoor environments, the DIS-210G-12 delivers dependable enterprise-grade industrial networking performance.

Available from 7stores.au, the D-Link DIS-210G-12 delivers rugged industrial Gigabit switching with advanced management and enterprise-grade reliability for critical infrastructure deployments.

Key Features

• 12-port industrial smart managed switch
• 8 x Gigabit Ethernet ports
• 4 x 1G SFP fibre ports
• Industrial operating temperature range
• Fanless IP40-rated design
• Dual DC power inputs
• 6kV surge protection
• ERPS & advanced Layer 2 management
• Static IP routing support
• DIN-rail industrial installation

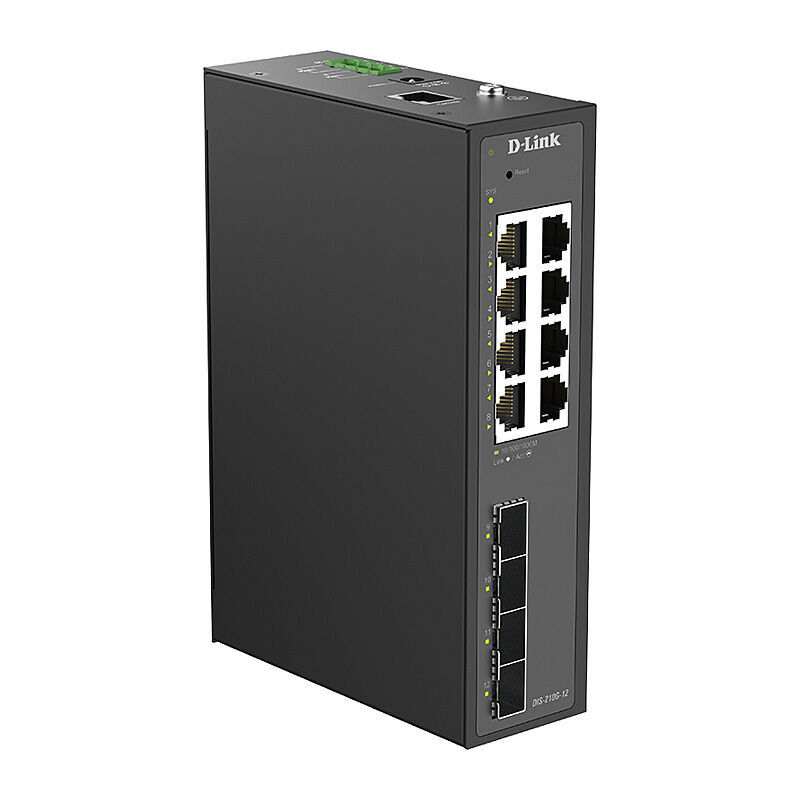

Featuring 8 Gigabit Ethernet ports and 4 dedicated 1G SFP fibre ports, the D-Link DIS-210G-12 provides high-speed wired and fibre connectivity for industrial controllers, IP cameras, wireless backhaul, automation systems, and critical network infrastructure. The integrated SFP uplinks support aggregated throughput and long-distance fibre connectivity for industrial and enterprise deployments.

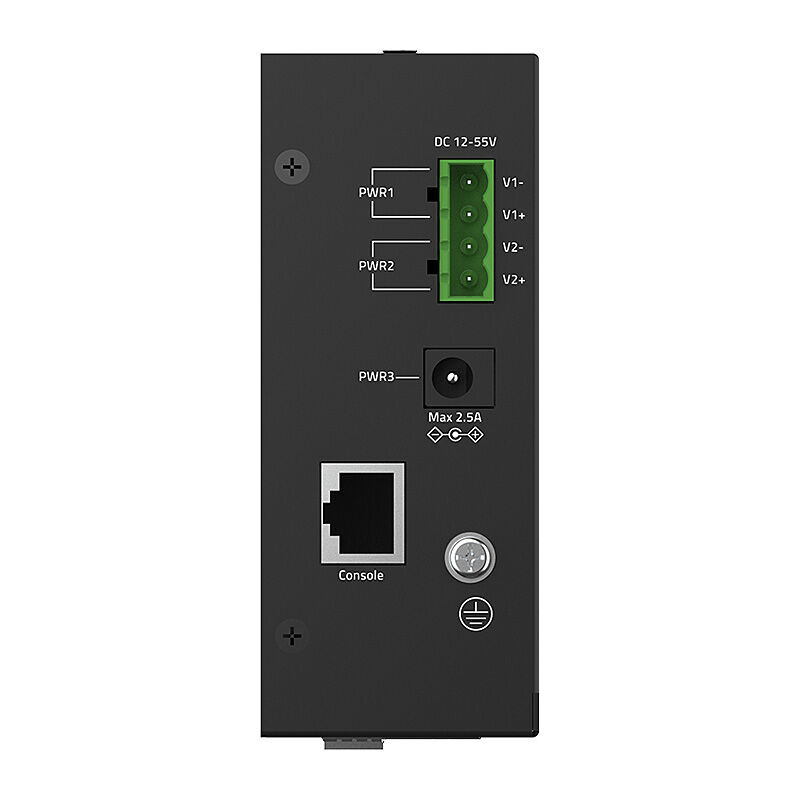

Designed for harsh industrial operation, the DIS-210G-12 supports operating temperatures from -40°C to 75°C and includes a fanless IP40-rated metal enclosure for reliable operation in challenging environments. Dual DC power inputs provide power redundancy and improved uptime for mission-critical applications.

Advanced Layer 2 management features including VLAN, ERPS, STP/RSTP/MSTP, LLDP, 802.1X authentication, RADIUS security, and static IP routing help optimise network traffic and improve security across industrial environments. Integrated OAM technologies including 802.1ag, 802.3ah, and ITU-T Y.1731 support proactive network monitoring and fault management.

Built with 6kV surge protection on Gigabit Ethernet ports, jumbo frame support, and energy-efficient 802.3az EEE technology, the DIS-210G-12 delivers stable and efficient industrial networking for high-demand environments.

Specifications

• Model: DIS-210G-12
• Switch Type: Industrial Smart Managed Switch
• Ethernet Ports: 8 x 1000BASE-T
• Fibre Ports: 4 x 1G SFP
• Installation Type: DIN-Rail
• Operating Temperature: -40°C to 75°C
• Surge Protection: 6kV
• Jumbo Frame Support: 9K
• Ingress Protection: IP40
• Power Input: Dual DC 12V – 55V
• MAC Address Table: Up to 8K
• ERPS Support: Yes
• VLAN Support: Yes
• Authentication: 802.1X / RADIUS
• Management: CLI, Console Port
• OAM Support: 802.3ah / 802.1ag / Y.1731
