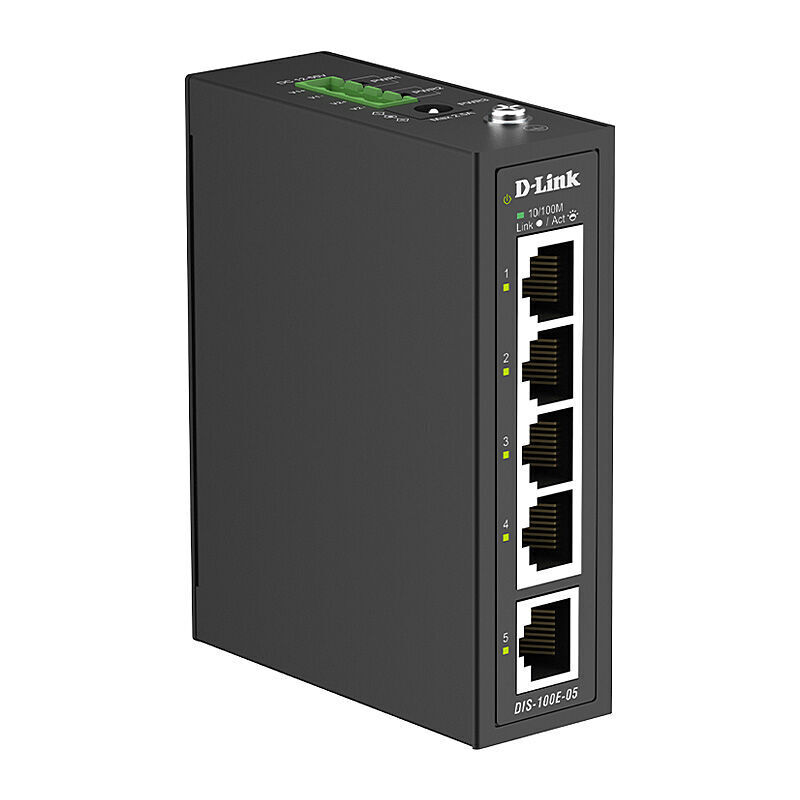

D-Link DIS-100E-05 Industrial 5-Port Unmanaged Ethernet Switch

The D-Link DIS-100E-05 Industrial Switch is a rugged industrial-grade unmanaged Ethernet switch designed for harsh environments and mission-critical industrial networking applications. Built for factories, transport systems, surveillance deployments, smart infrastructure, manufacturing facilities, and outdoor industrial environments, the DIS-100E-05 delivers reliable network connectivity with durable industrial protection and stable performance.

Available from 7stores.au, the D-Link DIS-100E-05 delivers reliable industrial Ethernet networking with rugged protection and stable performance for critical industrial applications.

Key Features

• Industrial 5-port Ethernet switch
• 5 x 10/100Base-TX ports
• Fanless passive cooling
• Industrial operating temperature range
• DIN rail mountable
• IP40-rated metal housing
• Dual redundant DC power inputs
• 6kV surge protection
• High EMS endurance
• Plug-and-play unmanaged operation

Featuring 5 x 10/100Base-TX Ethernet ports, the D-Link DIS-100E-05 provides fast and dependable wired connectivity for industrial controllers, IP cameras, sensors, access systems, and automation equipment. Its unmanaged plug-and-play design allows fast deployment without complex configuration, making it ideal for industrial edge networking and remote installations.

Designed with a fanless passive cooling system, the DIS-100E-05 operates silently while improving long-term reliability by reducing moving parts and maintenance requirements. The industrial-grade operating temperature range from -40°C to 75°C ensures stable operation in extreme heat, cold, and demanding environmental conditions.

Built with durable IP40-rated metal housing, dual redundant DC power inputs, and integrated 6kV surge protection, the switch is engineered for continuous operation in electrically noisy and industrial environments. High electromagnetic susceptibility (EMS) endurance further improves network stability and equipment protection in industrial applications.

The DIN rail mountable design enables easy installation into industrial control cabinets, automation systems, transportation infrastructure, and smart building environments.

Specifications

• Model: DIS-100E-05
• Switch Type: Industrial Unmanaged Switch
• Ports: 5 x 10/100Base-TX
• PoE Support: No
• Cooling: Fanless
• Housing: IP40 Metal Enclosure
• Mounting: DIN Rail

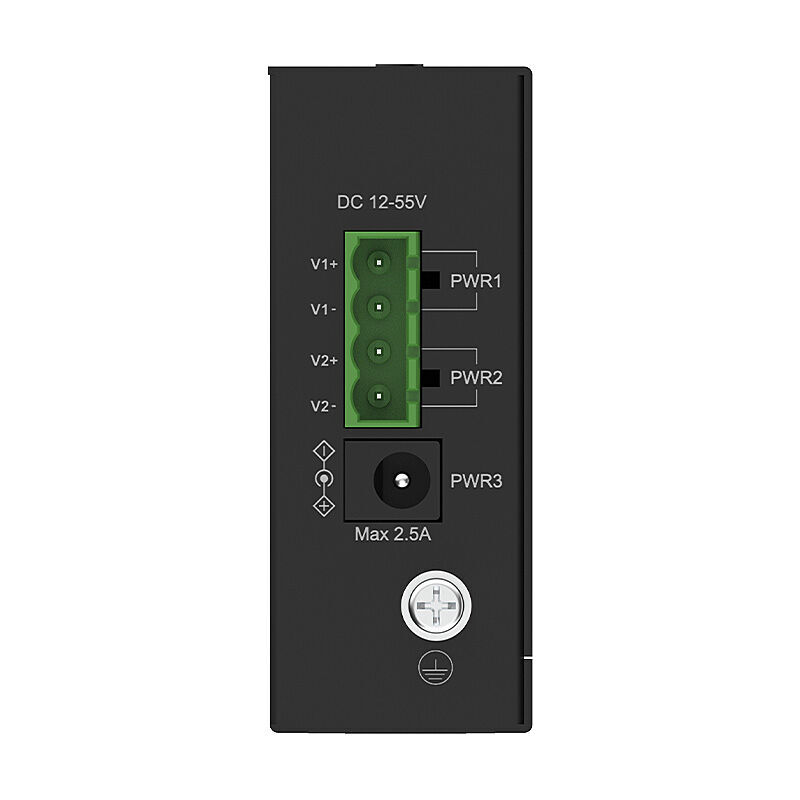

• Power Input: Dual 12V – 55V DC Terminal Block
• Surge Protection: 6kV
• Operating Temperature: -40°C to 75°C
• Management: Unmanaged
