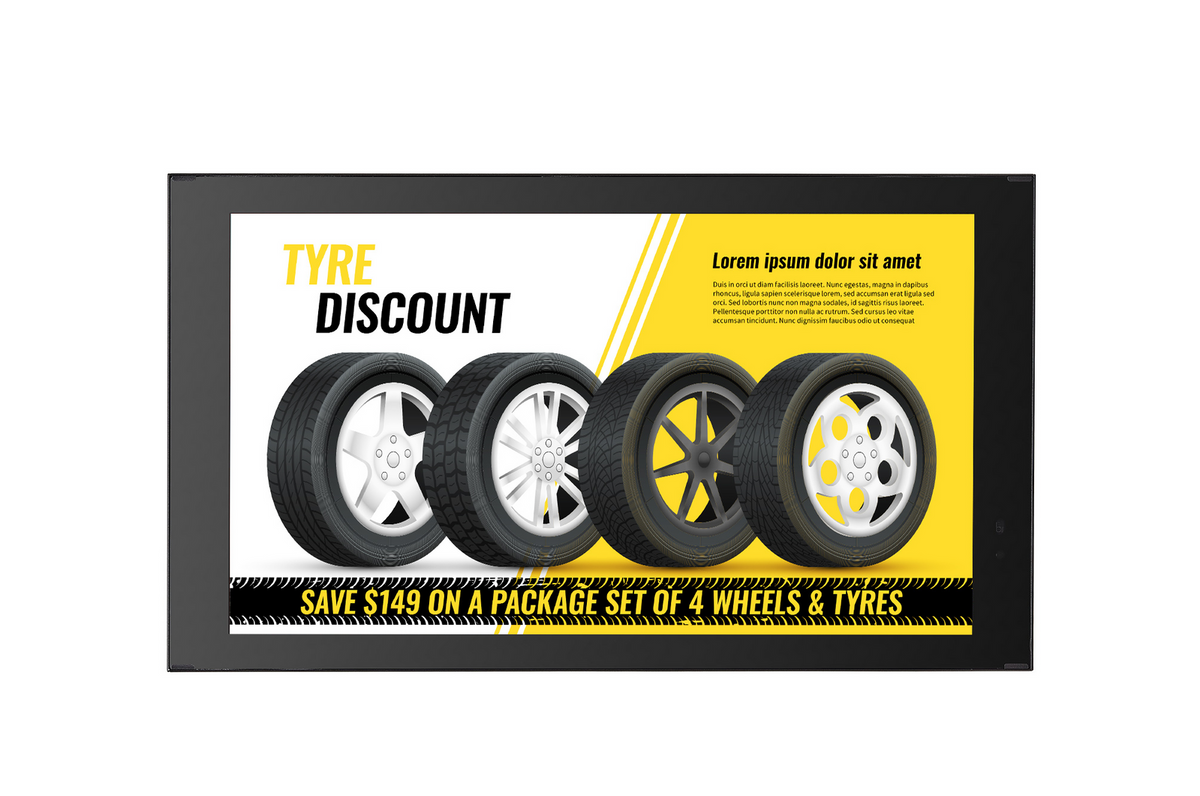

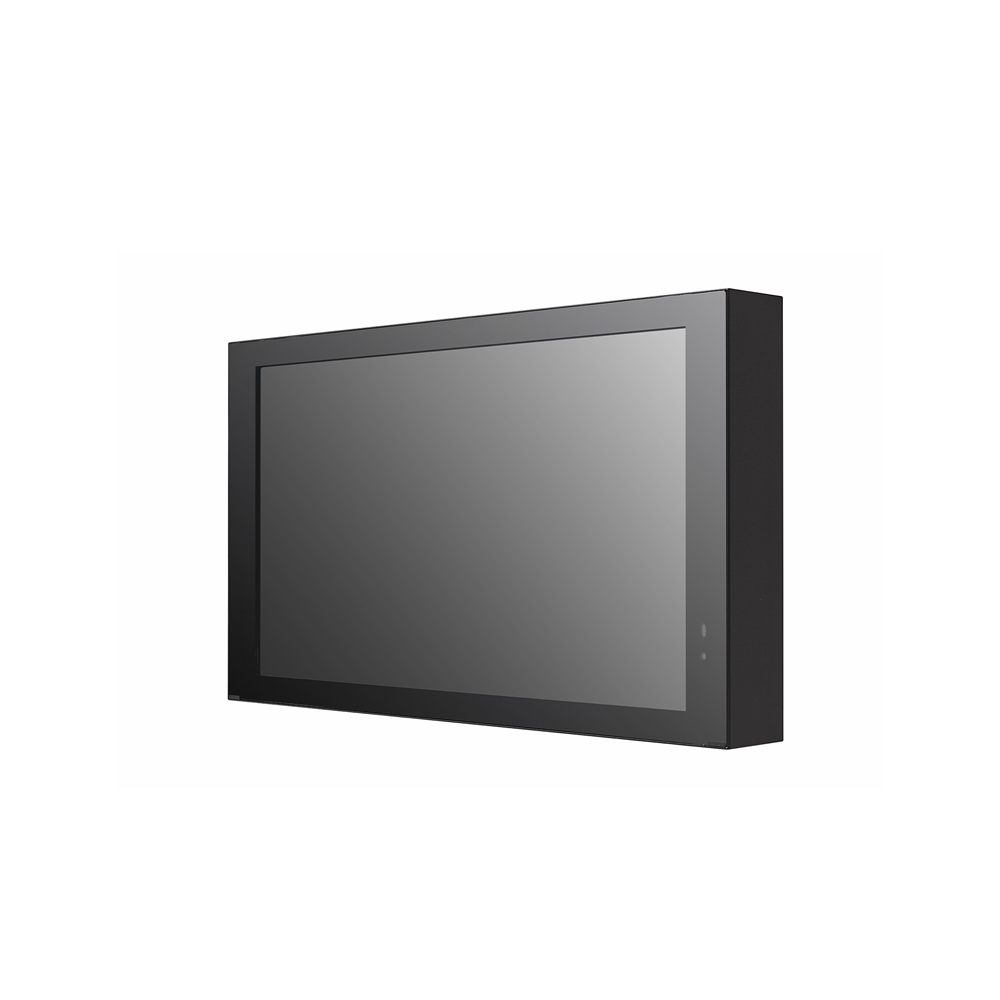

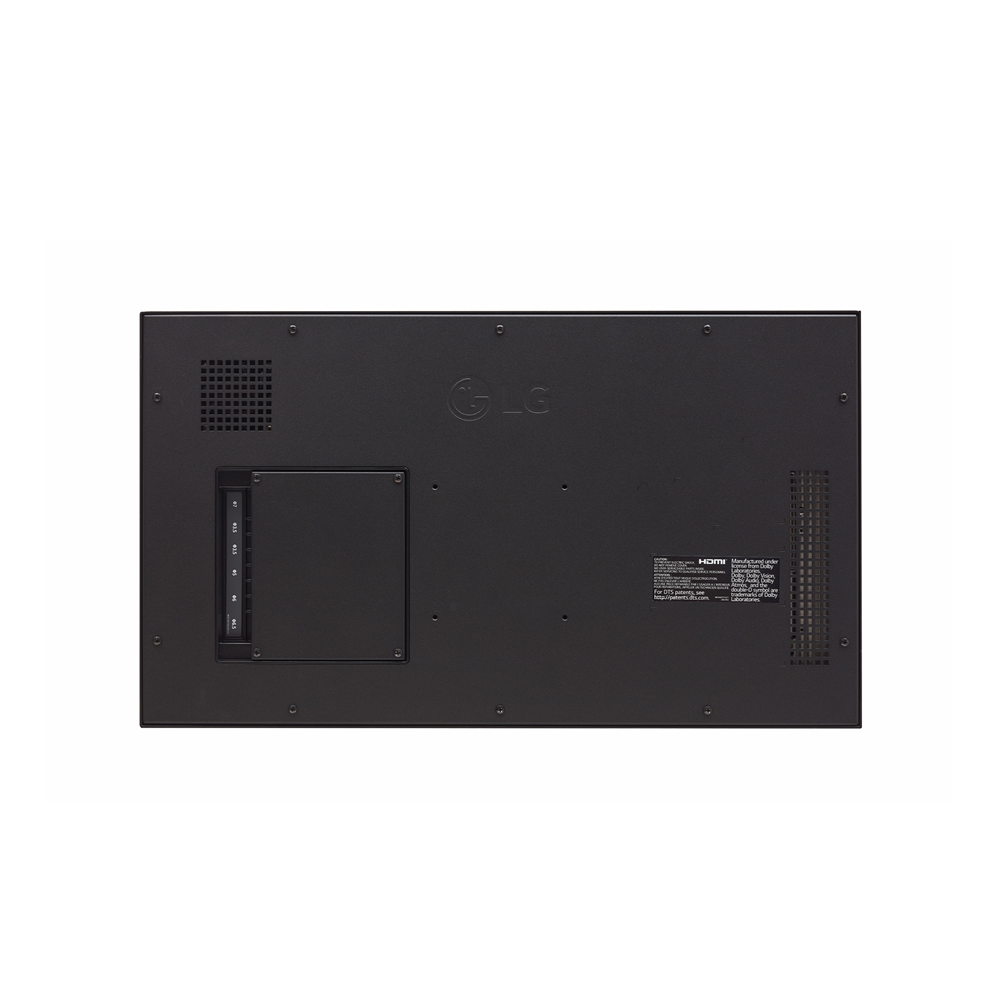

LG 22XE1J 22" FHD 1500 nits High-Brightness Outdoor Digital Signage Panel

IP56 Rated with webOS 4.1

Premium All-Weather Outdoor Display for High-Impact Commercial Signage

The LG 22XE1J 22" FHD High-Brightness Panel is a professional-grade outdoor digital signage display engineered for maximum visibility, durability, and operational efficiency in challenging environments. Featuring 1,500 nits brightness, IP56-rated weather protection, wide operating temperature range, and LG’s intelligent webOS 4.1 platform, it delivers outstanding performance in retail storefronts, transport hubs, hospitality venues, quick-service restaurants, and corporate facilities.

Its compact 21.5-inch size makes it versatile for small-to-medium spaces while still delivering exceptional brightness and clarity for content readability—even in direct sunlight and when viewed through polarized sunglasses. Combined with Conformal Coating technology, smart brightness control, and 24/7 continuous operation, the LG 22XE1J is a reliable, long-lasting investment for businesses demanding outdoor signage excellence.

Features & Advanced Technology

1,500 nits High-Brightness Visibility

Engineered for bright outdoor conditions, the LG 22XE1J’s 1,500 nits typical brightness ensures your messages remain crystal clear and vibrant, even under direct sunlight. Its anti-reflective tempered glass improves content legibility while reducing glare, ensuring uninterrupted viewing quality.

IP56-Rated Weather Protection

With its sealed IP56 enclosure, the display is dustproof, waterproof, and resistant to sun, rain, snow, wind, and airborne particles. This makes it an ideal choice for year-round outdoor installation in high-traffic, weather-exposed environments.

Extended Operating Temperature Range

Capable of operating from -30°C to 50°C, the LG 22XE1J ensures reliable performance in extreme climates—reducing the need for additional protective enclosures or heating/cooling systems.

Conformal Coating for Circuit Protection

Critical internal components, including the circuit and power boards, are protected against dust, iron powder, and moisture, extending product lifespan and ensuring consistent performance in demanding locations.

Smart Brightness Control

Ambient light sensors automatically adjust screen brightness for optimal visibility and energy efficiency, increasing brightness in daylight and dimming in darkness to conserve power.

webOS 4.1 – Intelligent Content Management

The Quad-Core SoC allows the display to run multiple applications simultaneously without an external media player. webOS 4.1 provides an intuitive interface, app integration, and remote content management for fast, efficient signage updates.

Wireless Connectivity & Content Updates

Built-in Wi-Fi and Bluetooth enable easy firmware updates, content uploads, and real-time promotions using BLE technology—allowing businesses to send coupons, event alerts, or promotional messages directly to visitors’ devices.

Remote Monitoring & LG ConnectedCare

With the LG Control Manager, operators can monitor, adjust, and control displays remotely from any internet-connected device. Optional LG ConnectedCare offers cloud-based remote diagnostics and maintenance, minimizing downtime.

LG Promota for Easy Content Creation

Create engaging display content using LG’s Promota mobile app—add images, videos, and text with ready-to-use templates tailored to your industry, ideal for seasonal menus, promotions, and announcements.

Why LG 22XE1J from 7stores.au?

• Designed for outdoor visibility – 1,500 nits brightness for sunny environments.

• Weatherproof reliability – IP56 rating and Conformal Coating for long-term protection.

• Compact & versatile – Perfect for storefronts, kiosks, and transportation signage.

• Smart management tools – webOS 4.1, remote monitoring, and wireless updates.

• Australian warranty & support – Available at 7stores.au for guaranteed peace of mind.

Specifications – LG 22XE1J

Panel:

• Screen Size: 21.5"

• Panel Technology: IPS (AHVA), Edge Backlight

• Aspect Ratio: 16:9

• Native Resolution: 1920 × 1080 (FHD)

• Brightness: 1,500 nits (Typ., with glass)

• Contrast Ratio: 1,000:1 (Static), 800,000:1 (Dynamic)

• Color Gamut: NTSC 72%

• Viewing Angle: 178° × 178°

• Color Depth: 16.7 million colors

• Response Time: 25ms (G-to-G)

• Surface Treatment: Haze 25%

• Lifetime: 70,000 hours (Typ.)

• Operation: 24/7

• Orientation: Portrait / Landscape

Connectivity:

• HDMI In: 1 (HDCP 2.2/1.4)

• USB: 1 × USB 2.0 Type A

• RS232C In: Yes

• LAN In: 1 × RJ45

• External Speaker Out: Yes

Mechanical:

• Bezel: 38.3mm (R/L), 24.0mm (T/B)

• Weight: 8.3kg (head) / 10kg (packed)

• Dimensions: 557.3 × 319.8 × 65 mm

• VESA Mount: 100 × 100 mm

• Protection Glass: 3mm tempered, anti-reflective, IR-resistant, shatter-proof

Environment:

• Operating Temp: -30°C to 50°C

• Humidity: 5% – 100%

Software & Features:

• OS: webOS 4.1

• Internal Memory: 16GB

• Smart Functions: Local content scheduling, Failover, Gapless Playback, Play via URL, Screen Rotation, External Input Rotation, Wake on LAN, Smart Energy Saving

• Remote Control: LG Control Manager, LG ConnectedCare optional

• Content Creation: LG Promota app support

Power:

• Supply: AC 100–240V, 50/60Hz

• Consumption: 85W (Typ.), 115W (Max.)

Certifications:

• Safety: CB / NRTL

• EMC: FCC Class A / CE / KC / VCCI

• ERP: Yes

Accessories Included:

• Remote Controller (with batteries)

• Power Cord

• Manuals (EIG, IG)

• RS-232C Gender Adapter
