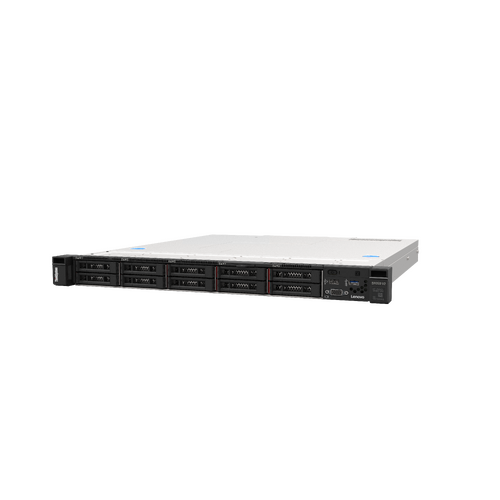

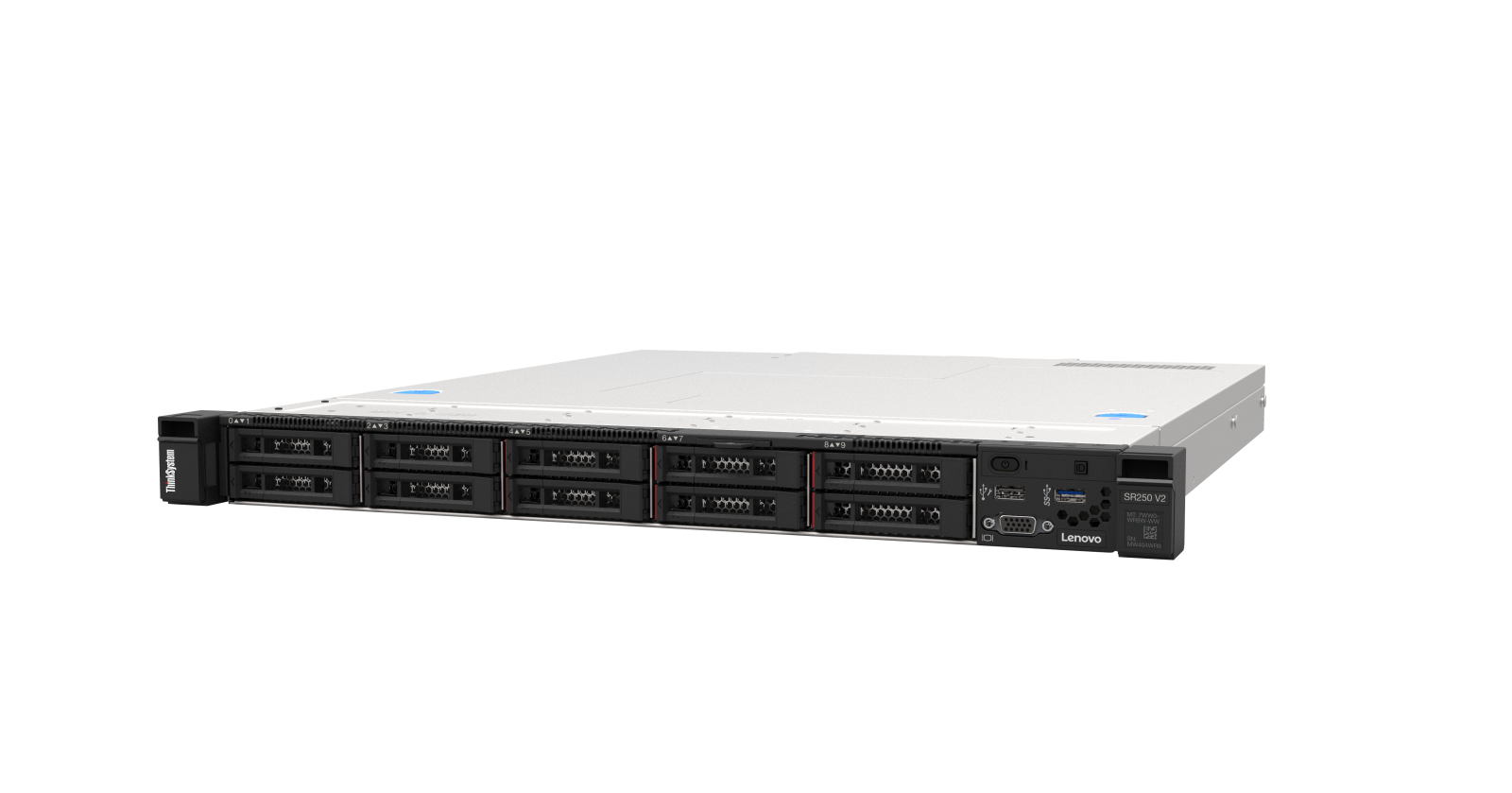

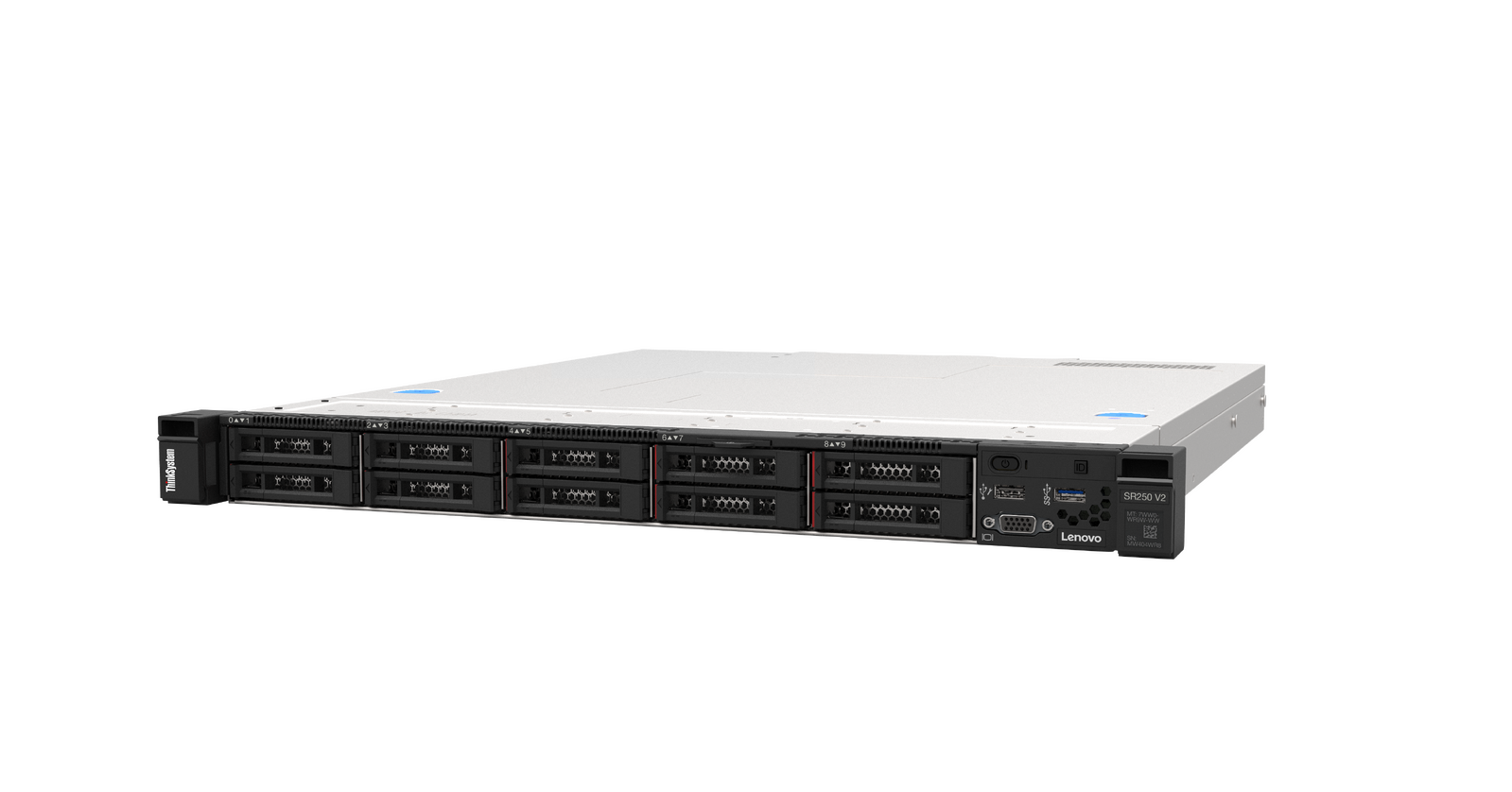

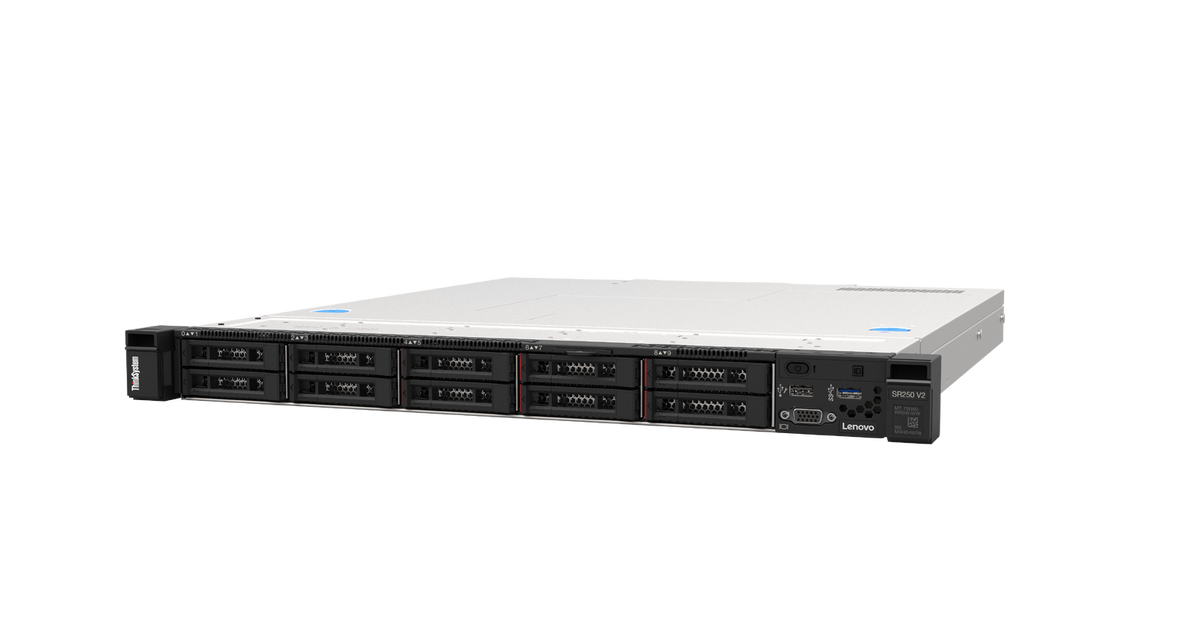

Lenovo THINKSYSTEM SR250 V2 XEON E-2356G 16GB 2RX8 450W

Lenovo ThinkSystem SR250 V2: The Ultimate 1U Rack Server for Growing Businesses

The Lenovo ThinkSystem SR250 V2, available at 7stores.au, is a powerful and versatile 1U rack server designed for growing businesses that demand optimized performance, scalability, and enterprise-class reliability. Built to handle a wide range of workloads, from IT infrastructure to web serving, virtualization, and edge deployments, this server delivers exceptional performance without compromising on security or manageability.

High-Performance Processing with Intel Xeon E-2356G

At the core of the ThinkSystem SR250 V2 is the Intel Xeon E-2356G processor. This hexa-core (6 cores) processor operates at a clock speed of 3.2 GHz with a 12 MB cache, providing robust performance for a variety of applications. This server is also part of the Intel Xeon E-2300 Series, known for its efficiency and power, ensuring your business can handle demanding workloads with ease.

Memory and Storage: Flexibility for Your Growing Needs

The ThinkSystem SR250 V2 comes equipped with 16GB of TruDDR4 ECC memory (2Rx8), ensuring data integrity and minimizing downtime. The server supports up to 128GB of 3200 MHz TruDDR4 ECC memory across four DIMM slots, allowing for significant expansion as your business needs grow.

Storage flexibility is a key feature of the SR250 V2, offering configurations that can support up to ten 2.5-inch hot-swap SATA/SAS drives or four 3.5-inch hot-swap drives. This ensures that you can optimize your server for either performance or capacity, depending on your specific requirements. For businesses needing faster data access, the SR250 V2 also supports NVMe PCIe SSDs. The inclusion of an optional SATA Mirrored M.2 boot drive kit provides reliable OS boot support with VROC RAID redundancy.

Expandability and Connectivity: Future-Proof Your Investment

The Lenovo ThinkSystem SR250 V2 is designed with scalability in mind, featuring three PCIe expansion slots, including the latest PCIe Gen4 interface, which maximizes I/O performance. This allows you to expand your server's capabilities with additional storage, network cards, or GPU support, making it a future-proof investment.

For networking, the SR250 V2 is equipped with dual integrated Gigabit Ethernet ports (Broadcom BCM5720) and an additional 1 GbE port dedicated to XClarity Controller (XCC) management. This ensures reliable and secure network connectivity, essential for maintaining seamless operations.

Advanced Management and Security Features

Management and security are critical for any business server, and the ThinkSystem SR250 V2 excels in both areas. The server includes the Lenovo XClarity Controller for advanced server management, offering features like service processor control, monitoring, and alerting functions. This controller simplifies the management of your server, enabling you to standardize and automate foundational server tasks, thereby reducing operational complexity.

Security is further enhanced with Intel® Software Guard Extensions (SGX), which protects sensitive application code and data. The server also includes an embedded TPM 2.0 module for hardware-based security, ensuring that your data is protected from unauthorized access. For added physical security, an optional lockable front bezel is available.

Energy Efficiency in a Compact Design

The ThinkSystem SR250 V2 is not only powerful but also energy-efficient, supporting up to 450W power supplies. It’s designed to operate efficiently even in space-constrained environments, such as small offices or remote branch locations. The server's compact 1U form factor, with dimensions of 43mm height, 435mm width, and 545mm depth, makes it ideal for businesses that need a powerful server without the need for a large data center footprint.

Operating System Compatibility

The ThinkSystem SR250 V2 is compatible with a wide range of operating systems, ensuring that it can integrate seamlessly into your existing IT environment. Supported operating systems include Microsoft Windows Server 2022, Red Hat Enterprise Linux (versions 8.4, 8.7, 9.0, 9.1), SUSE Linux Enterprise Server (15 SP3, 15 SP4), and VMware ESXi.

Detailed Specifications

• Form Factor: 1U rack; Height: 43mm (1.7 inches), Width: 435mm (17.1 inches), Depth: 545mm (19.6 inches)
• Processor: 1x Intel® Xeon® E-2356G, 6 cores, 3.2 GHz, 12 MB cache
• Memory: 16GB TruDDR4 ECC (2Rx8) UDIMM, supports up to 128GB in 4x DIMM slots
• Storage Options:
  • 4x 3.5-inch simple-swap SATA drives
  • 4x 3.5-inch hot-swap SATA/SAS drives
  • 8x 2.5-inch hot-swap SATA/SAS drives
  • 10x 2.5-inch hot-swap SATA/SAS drives
  • Optional SATA Mirrored M.2 boot drive kit
• Expansion Slots:
  • 2x PCIe Gen4 x8 slots
  • 1x PCIe Gen4 x16 slot
  • 1x PCIe Gen4 x8 (x4 interface) internal RAID slot
• Network Interface:
  • 2x GbE on-board ports (Broadcom BCM5720)
  • 1x GbE port dedicated for XCC management
• Ports:
  • Front: 1x USB 3.2 Gen 1 (5Gbps), 1x USB 2.0 for local management
  • Rear: 2x USB 3.2 G2 (10Gbps), 2x RJ45 Gigabit Ethernet ports, 1x Serial port, 1x VGA port
• Security Features:
  • Embedded TPM 2.0
  • Intel® SGX
  • Optional lockable front bezel
• Power Supply: 450W fixed power supply, supports redundant hot-swap power supplies
• Operating System Support: Microsoft Windows Server 2022, Red Hat, SUSE, VMware ESXi
• Weight: Approx. 12.30 kg

Why Choose the Lenovo ThinkSystem SR250 V2?

The Lenovo ThinkSystem SR250 V2 is the perfect choice for businesses that require a scalable, reliable, and secure server to support their growth. With its high-performance Intel Xeon E-2356G processor, flexible memory and storage options, and advanced management features, this server is designed to meet the needs of today’s businesses while providing room to grow for tomorrow.

Available now at 7stores.au, the Lenovo ThinkSystem SR250 V2 is a smart investment in your business’s future, offering unmatched value in a compact and energy-efficient design. Equip your business with the best in class—choose the Lenovo ThinkSystem SR250 V2.
