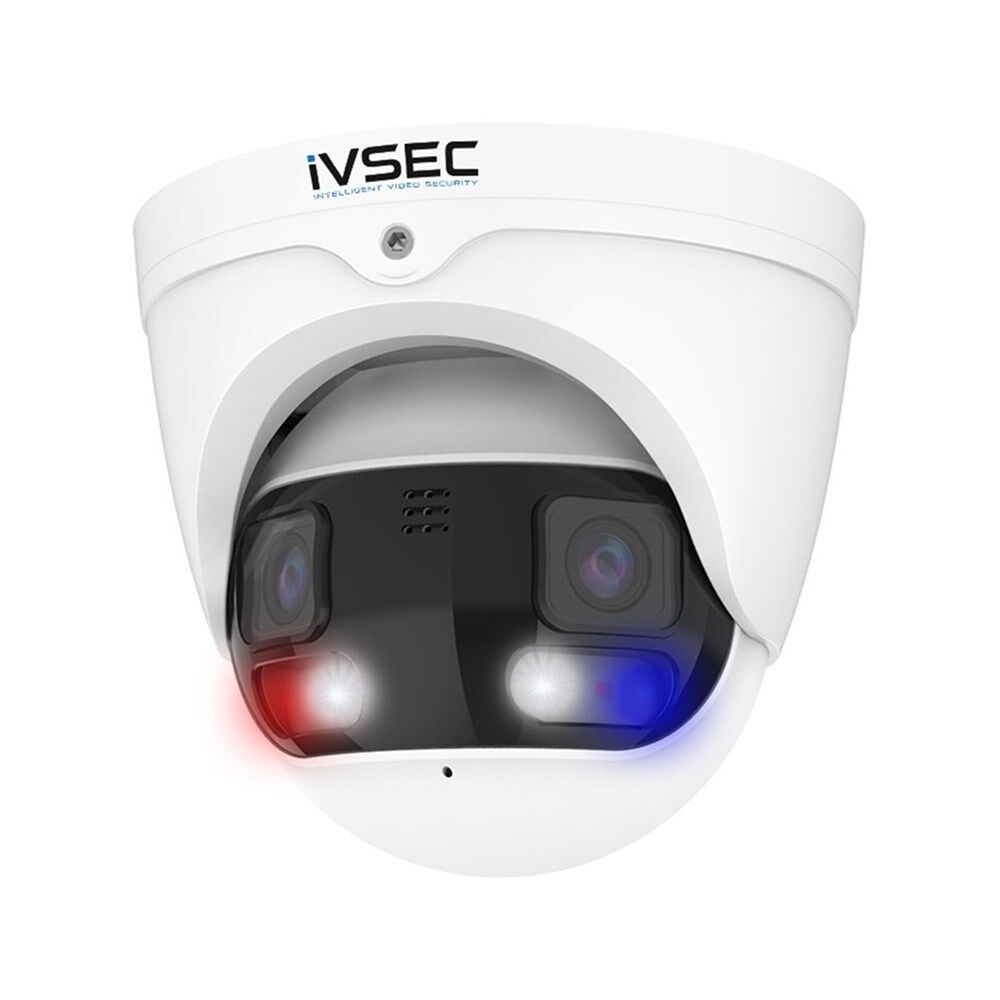

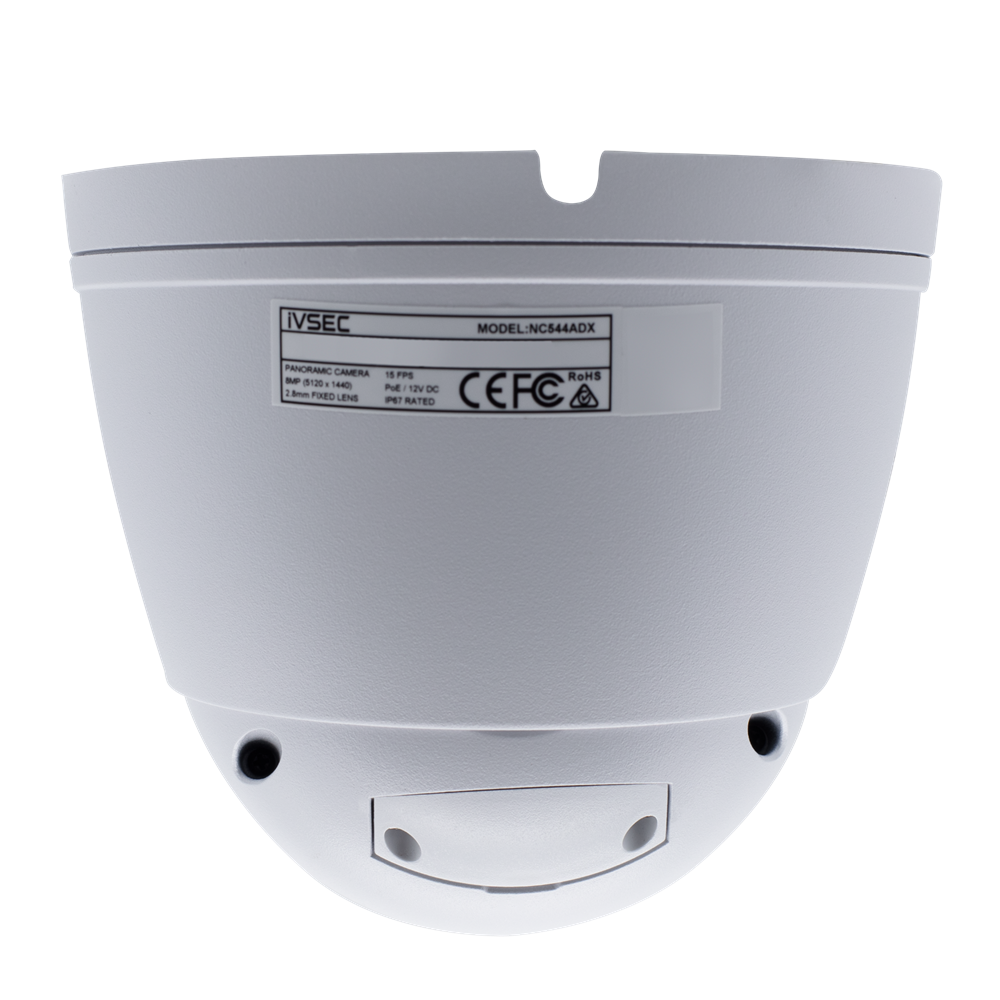

IVSEC NC544ADX 8MP Panoramic Turret IP Camera – Dual 4MP Lenses, 20FPS, Advanced Analytics, PoE

The IVSEC NC544ADX Panoramic Turret IP Camera is an advanced surveillance solution designed for professionals who demand comprehensive wide-area coverage, crystal-clear 8MP resolution, and intelligent video analytics. Featuring dual 4MP CMOS sensors working in unison, the NC544ADX captures expansive panoramic views at 5120 × 1440 resolution and 20 frames per second, ensuring smooth, detailed, and distortion-free footage across large monitoring zones.

Engineered for both commercial and residential applications, this panoramic IP camera is ideal for retail stores, warehouses, offices, car parks, educational institutions, and public spaces where maximum visibility and proactive threat deterrence are essential. With its 180° panoramic 2.8mm fixed lens, operators can monitor wide areas with fewer cameras, reducing installation costs while maintaining uncompromising surveillance quality.

The NC544ADX goes beyond standard recording by incorporating Advanced Intelligent Video Surveillance (IVS) capabilities, including face recognition, vehicle detection, perimeter intrusion alerts, line crossing detection, queue length monitoring, heat mapping, and license plate recognition (LPR). This allows businesses to transform raw footage into actionable security insights, improving both safety and operational efficiency.

Equipped with red/blue strobe lights, IR night vision up to 30m, and warm-white LEDs, the NC544ADX provides full-colour night imaging and active deterrence features to discourage intruders. Its two-way audio system with an integrated microphone and speaker allows for real-time communication or automated warnings directly through the camera.

Durability is built into its design with an IP67 weatherproof rating and IK10 vandal resistance, ensuring long-lasting reliability in even the harshest conditions. The camera also supports Power over Ethernet (PoE) for streamlined installation, edge recording via microSD/SDHC cards, and optional Dropbox cloud integration for secure backups.

Available now at 7stores.au, the IVSEC NC544ADX Panoramic IP Camera combines professional-grade hardware with AI-driven analytics, giving you a smarter, safer, and more cost-effective surveillance solution.

Why Buy the IVSEC NC544ADX?

• Dual 4MP Sensors – Combined 8MP resolution for seamless panoramic surveillance.

• Wide 180° Field of View – Expansive coverage with a single camera, reducing blind spots.

• 4K Ultra HD Clarity – High detail capture at 5120 × 1440 resolution, 20fps.

• Advanced Deterrence – IR, warm-light, and red/blue LEDs plus two-way audio for proactive security.

• AI-Powered Video Analytics (IVS) – Includes face recognition, intrusion alerts, queue monitoring, LPR, heat mapping, and people/vehicle detection.

• Day & Night Performance – Clear imaging in low-light or complete darkness with 30m IR.

• Durable Design – Weatherproof (IP67) and vandal-resistant (IK10) for outdoor/indoor use.

• Flexible Storage – Edge recording via microSD/SDHC cards and optional Dropbox cloud backup.

• Easy Installation with PoE – Single cable for both power and data.

• Backed by Warranty – Comes with a 3-Year Warranty and professional support.

Specifications

• Camera Type: Panoramic Turret IP Camera

• Image Sensor: 2 × 1/2.7″ Progressive CMOS (dual 4MP sensors)

• Resolution: 8MP (5120 × 1440)

• Frame Rate: 20fps

• Lens: 2.8mm panoramic, 180° FOV

• Lens Type: Fixed

• IR Distance: Up to 30m

• LEDs: IR, Warm White, Red & Blue

• Day/Night Mode: Day, Night, Auto, Schedule

• Compression: H.265+, H.265, H.264+, H.264, MJPEG

• Streams: 2 streams

• Audio: Two-way audio (microphone & speaker included)

• IVS Analytics: Motion detection, face recognition, vehicle/pedestrian detection, perimeter intrusion, line crossing, queue monitoring, heat map, license plate recognition, crowd density detection

• Cloud Option: Dropbox support

• Edge Recording: microSD/SDHC card support

• Ethernet: 10/100/1000 Base-T

• PoE: IEEE 802.3at supported

• Power Supply: PoE, DC12V

• Power Consumption: <14W

• Connectors: RJ-45, DC Power Input, Reset Button

• Operating Environment: -30°C to +60°C (-22°F to 149°F), ≤90% RH

• Durability: IP67 weatherproof, IK10 vandal-resistant

• Dimensions: 127 × 136 × 136 mm

• Accessories: IV2422X, IV2433X, IV2444X, IV2455X, IV2457X, IV2477X

• Warranty: 3-Year Warranty

• In the Box: Free software (FTP), quick start guide, installation template, mounting screws and plugs
