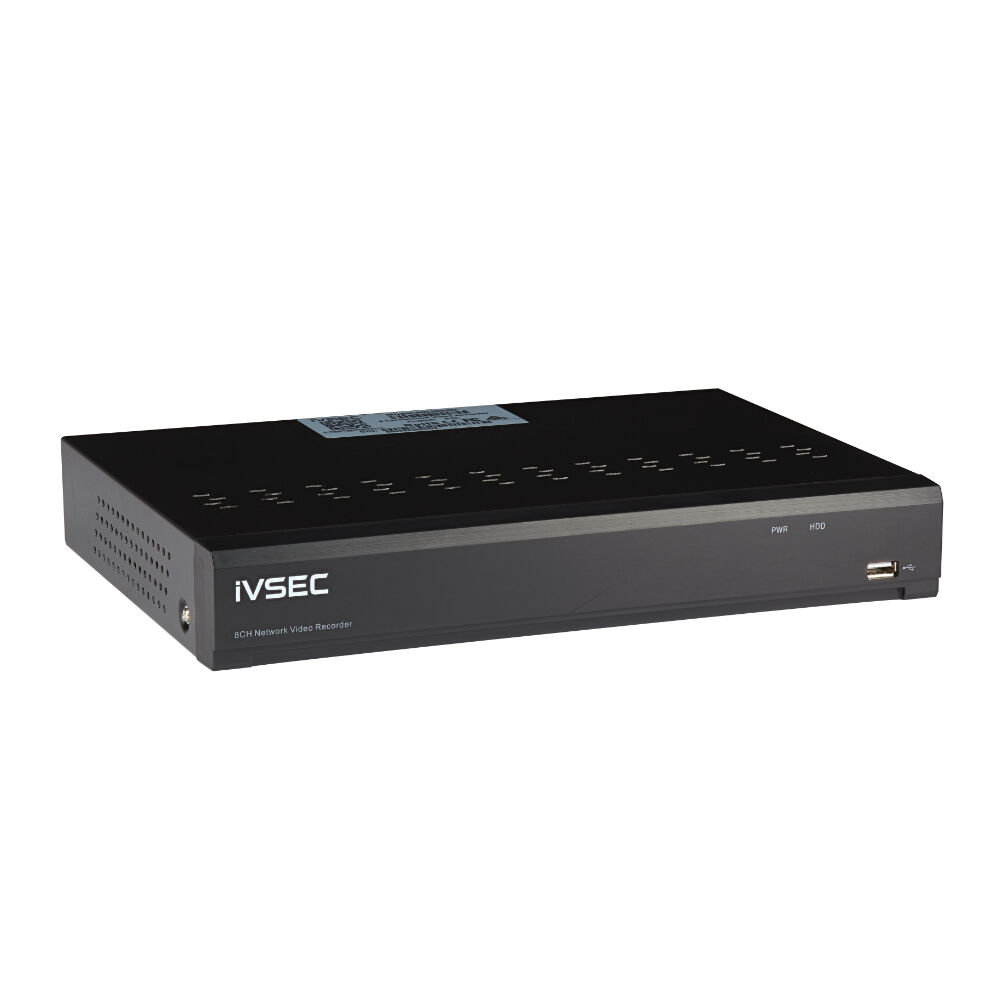

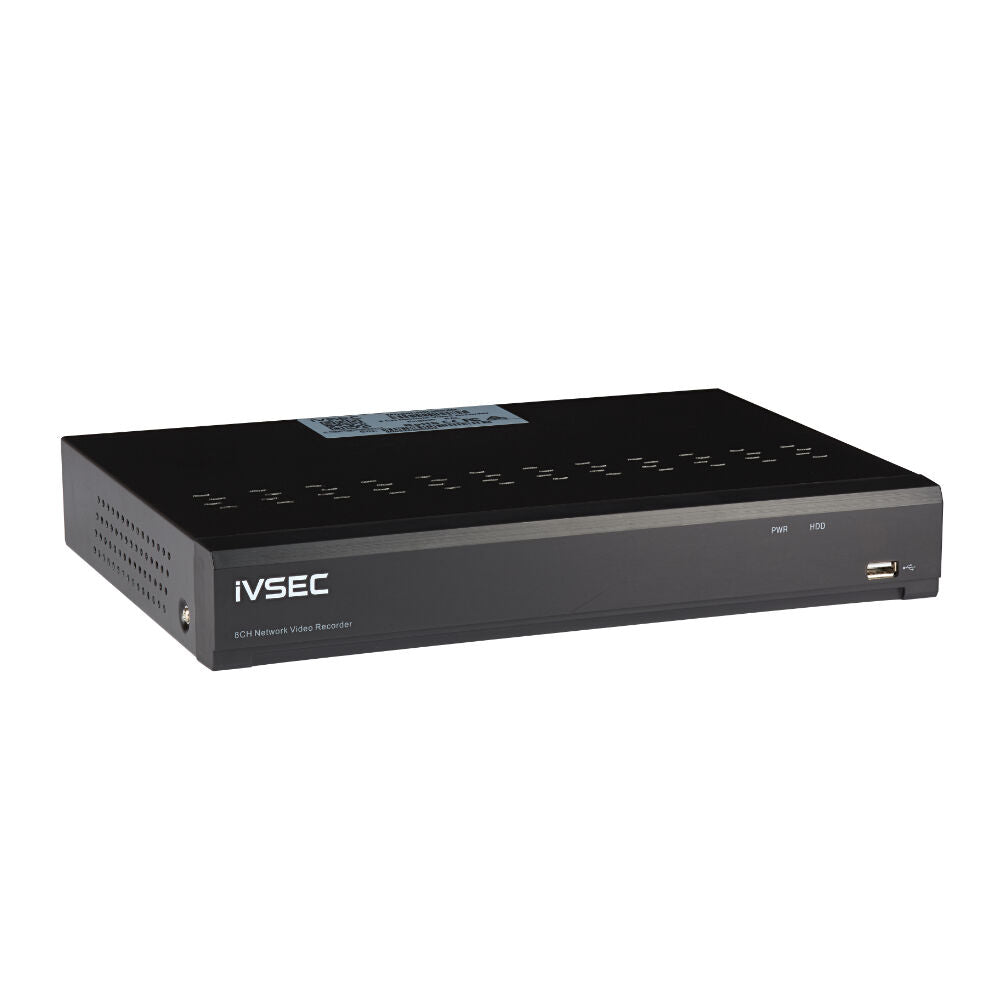

IVSEC NR316XD 16-Channel 12MP NVR with 16 PoE Ports, Dual HDD Bays, 4K HDMI & AI Video Analytics

The IVSEC NR316XD Network Video Recorder (NVR) is a professional 16-channel recording solution designed for enterprise-level surveillance systems that demand high performance, extended storage, and advanced AI video analytics. Supporting up to 16 IP cameras at 12MP resolution and offering a massive 160 Mbps bandwidth capacity, this NVR delivers seamless 24/7 monitoring, ultra-high-definition recording, and intelligent threat detection.

Equipped with 16 integrated PoE+ ports, the NR316XD simplifies installation by transmitting both power and data through a single Ethernet cable for each connected camera, reducing complexity and costs. With dual HDD bays supporting up to 16TB each, the NVR provides up to 32TB of scalable storage capacity, making it suitable for large-scale installations where long-term retention of video data is critical.

By supporting H.265/H.265+ video compression, the recorder significantly reduces bandwidth and storage demands without sacrificing quality. Combined with its AI-enabled Intelligent Video Surveillance (IVS) capabilities—such as facial recognition, human and vehicle detection, license plate recognition, intrusion alerts, line crossing detection, and heat mapping—this NVR transforms passive video recording into an active security and business intelligence platform.

Performance & Reliability

The IVSEC NR316XD is engineered for high-demand applications, ensuring smooth operation across all 16 channels with multi-resolution support up to 12MP per channel. Its 4K HDMI output guarantees sharp, clear video display for control rooms, retail monitoring, or enterprise-level surveillance centres. Flexible display modes (1, 4, 6, 8, 9, 10, 13, 14, or 16 split views) make it easy to monitor multiple sites simultaneously.

The NVR supports advanced search methods, including event-triggered searches (IVS, PIR, motion), timeline review, time-lapse, snapshot searching, cross counting, and face detection searches. This ensures rapid retrieval of footage for investigations, compliance, or audit requirements.

With its alarm relays (8 in / 1 out), the NR316XD can be integrated with external security systems such as sirens, access control, or alarm panels, enhancing real-time response to security events. The two-way audio streaming support adds an extra layer of interactivity, allowing real-time communication through compatible IP cameras.

Compact yet robust, the NVR is designed for continuous 24/7 operation, making it reliable in critical installations such as government facilities, corporate campuses, transportation hubs, warehouses, and retail complexes.

Why Choose the IVSEC NR316XD?

The IVSEC NR316XD 16-Channel NVR is the ultimate choice for organisations that require high-capacity recording, long-term video storage, and AI-enhanced surveillance management. With 32TB total storage, 16 PoE+ ports, 12MP resolution support, and advanced AI analytics, it offers both scalability and intelligence, making it ideal for future-proofing your security infrastructure.

Whether you need to secure a large business premises, manage multiple surveillance zones, or monitor crowded environments with heat mapping and crowd density analytics, the NR316XD delivers the performance and flexibility you need.

By purchasing from 7stores.au, you gain access to genuine IVSEC hardware, expert Australian-based support, fast shipping, and a 24-month warranty, ensuring reliability and peace of mind. This makes the NR316XD a smart, future-ready investment for any professional surveillance system.

Specifications

IVSEC NR316XD 16-Channel NVR

• Channels Supported: 16 (up to 12MP resolution per channel)

• Bandwidth Capacity: 160 Mbps input

• Video Compression: H.264, H.264+, H.265, H.265+, MJPEG

• Video Output Resolution: 4K, 1080p, 720p, 1.3MP, D1, VGA

• Display Modes: 1/4/6/8/9/10/13/14/16 split-screen layouts

• IVS Analytics (camera-dependent): Motion Detection, Face Recognition, Human & Vehicle Detection, License Plate Detection, Intrusion Detection, Line Crossing, Stationary Object Detection, Cross Counting, Heat Map, Crowd Density Monitoring, Queue Length Detection, Video Tampering

• Search Methods: Continuous, Scheduled, Event-triggered, PIR, IVS, Snapshot, Time-lapse, Timeline, Cross Counting, Tagging

• Storage Capacity: 2 x SATA HDD bays, up to 16TB per HDD (32TB total)

• PoE Ports: 16 x PoE+ (802.3at, 30W each)

• Audio Streaming: Supported (in/out)

• Alarm I/O: 8 inputs / 1 output

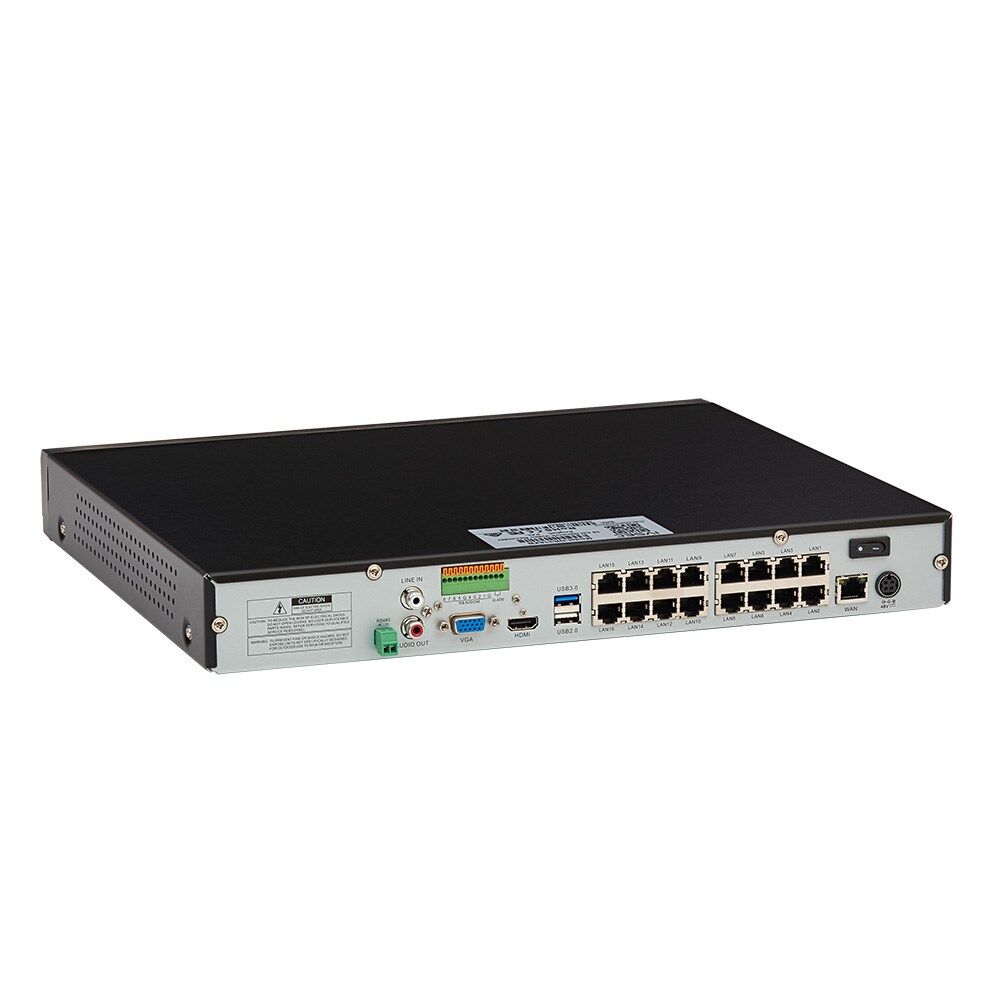

• Connectivity: 1 x Gigabit RJ-45 Ethernet, 16 x PoE+ ports, USB3 x 1, USB2 x 2, HDMI, VGA, Alarm Ports, Audio out, Power Input, On/Off switch

• Protocols: TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P (QR code)

• Supported Languages: English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, and more

• Power Supply: DC48V/3.75A

• Power Consumption: <10W (without HDD)

• Operating Environment: 5°C – 45°C, 20%–80% RH

• Dimensions: 380 x 320 x 54 mm

• Weight: 1.54 kg

• Warranty: 24 months

In The Box

• Printed Quick Installation Guide

• Mouse

• Remote Control

• HDD Screws

• Power Supply
