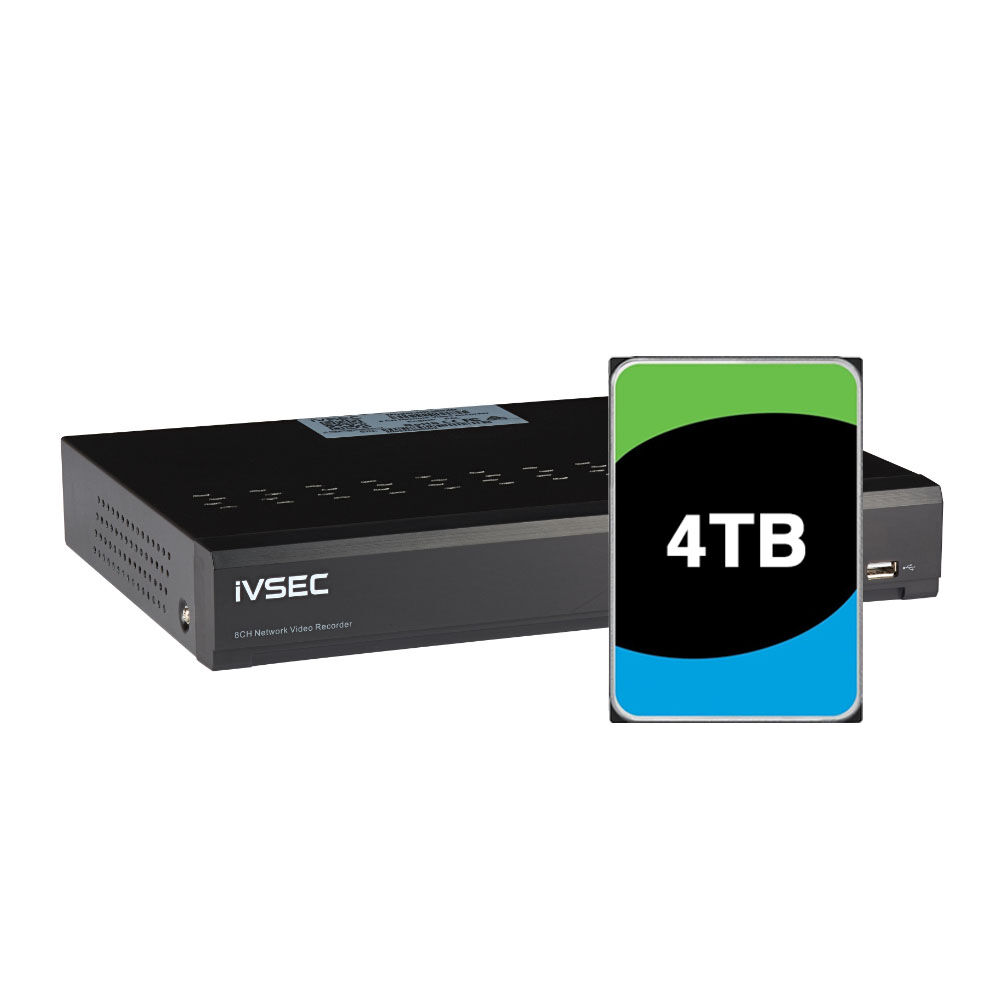

IVSEC NR308XD-4TB NVR

8 Channel, 12MP, 8 PoE Ports, 4TB Pre-Installed HDD, H.265+, 4K HDMI, IVS

The IVSEC NR308XD-4TB NVR is a professional 8-channel network video recorder engineered for high-performance surveillance in commercial, industrial, and residential environments. Featuring 12MP recording capability, 8 integrated PoE+ ports, and a pre-installed 4TB HDD, this device is ready to deploy straight out of the box, delivering both convenience and cutting-edge performance.

High-Resolution Recording with Powerful Bandwidth

Built to manage 128 Mbps of incoming bandwidth, the NR308XD-4TB guarantees smooth video transmission across multiple high-resolution channels. This ensures every frame is captured with uncompromising clarity, whether in 4K UHD or multi-channel 12MP recording, making it a reliable core for your CCTV ecosystem.

Advanced Intelligent Video Analytics (IVS)

This NVR isn’t just about storing footage—it’s a proactive surveillance solution. With IVS-based analytics, users gain access to face recognition, human and vehicle detection, intrusion detection, line crossing, heat mapping, and cross counting. These tools elevate security by enabling real-time monitoring, alerts, and intelligent event filtering that reduce false alarms and improve operational efficiency.

Storage Optimised with Pre-Installed 4TB HDD

Unlike standard recorders, the NR308XD-4TB comes with a 4TB surveillance-grade HDD pre-installed, making it ready to record immediately. With support for up to 16TB in a single bay, and enhanced by H.265+ compression technology, this NVR maximises storage efficiency while maintaining pristine video quality—ideal for users who need long-term video retention.

Remote Access & Management

Through the IVSEC X app, CMS/VMS client software, or P2P QR code setup, users can access, manage, and review footage remotely on PC or mobile devices. This ensures total control and peace of mind, with real-time alerts, playback, and smart search tools available from anywhere in the world.

Reliable Build for Modern Security Needs

With a robust design, energy-efficient operation, and a user-friendly interface, the NR308XD-4TB suits applications ranging from retail and office security to multi-site commercial deployments. Backed by 24 months warranty and available with trusted Australian support at 7stores.au, it is an investment in security, reliability, and future-proof performance.

Why Buy the IVSEC NR308XD-4TB NVR?

• 8-channel NVR with 12MP recording for crystal-clear surveillance.

• Pre-installed 4TB HDD for instant setup and recording.

• Supports up to 16TB storage with expandable bay.

• 8 integrated PoE+ ports (802.3at, 30W) simplify installation and power delivery.

• 128 Mbps bandwidth ensures smooth multi-channel video management.

• H.265+ compression for reduced bandwidth and extended storage efficiency.

• IVS intelligent analytics: face recognition, intrusion detection, heat map, human & vehicle detection.

• 4K HDMI & VGA outputs for professional-grade playback and monitoring.

• Mobile and remote access with IVSEC X app, VMS software, and QR setup.

• 24 months warranty with reliable Australian service through 7stores.au.

Technical Specifications

• Maximum Channels: 8

• Max Video Resolution: 12MP

• Bandwidth: 128 Mbps

• Video Compression: H.264, H.264+, H.265, H.265+, MJPEG

• Video Output Resolution: 4K UHD, 1080p, 720p, 1.3MP, D1, VGA

• Display Layouts: 1, 4, 6, 8, 9

• Search Methods: Continuous, Scheduling, Event-triggered (PIR, IVS, Motion, Intrusion, Face Detection, Line Crossing, Cross Counting)

• Storage: 1 × Bay, 4TB pre-installed (supports up to 16TB)

• Audio: Output supported

• Power Over Ethernet: 8 × PoE+ ports (802.3at, 30W)

• Connectors: 1 × RJ-45 (Gigabit), 8 × PoE+, HDMI, VGA, USB2 × 2, USB3 × 1, Alarm In/Out (8/1), Audio Out, HDD slot, Power input

• Power Supply: DC 48V / 2A

• Power Consumption: 8W (without HDD)

• Operating Environment: 5°C – 45°C | Humidity 20%–80% RH

• Dimensions (H × W × L): 53 × 300 × 227 mm

• Packaging Dimensions: 100 × 430 × 270 mm

• Weight (Net): 1.84 kg

• Weight (Gross): 2.14 kg

• In The Box: Quick installation guide, Mouse, Remote control, HDD screws, Power supply

• Warranty: 24 Months (Parts)
