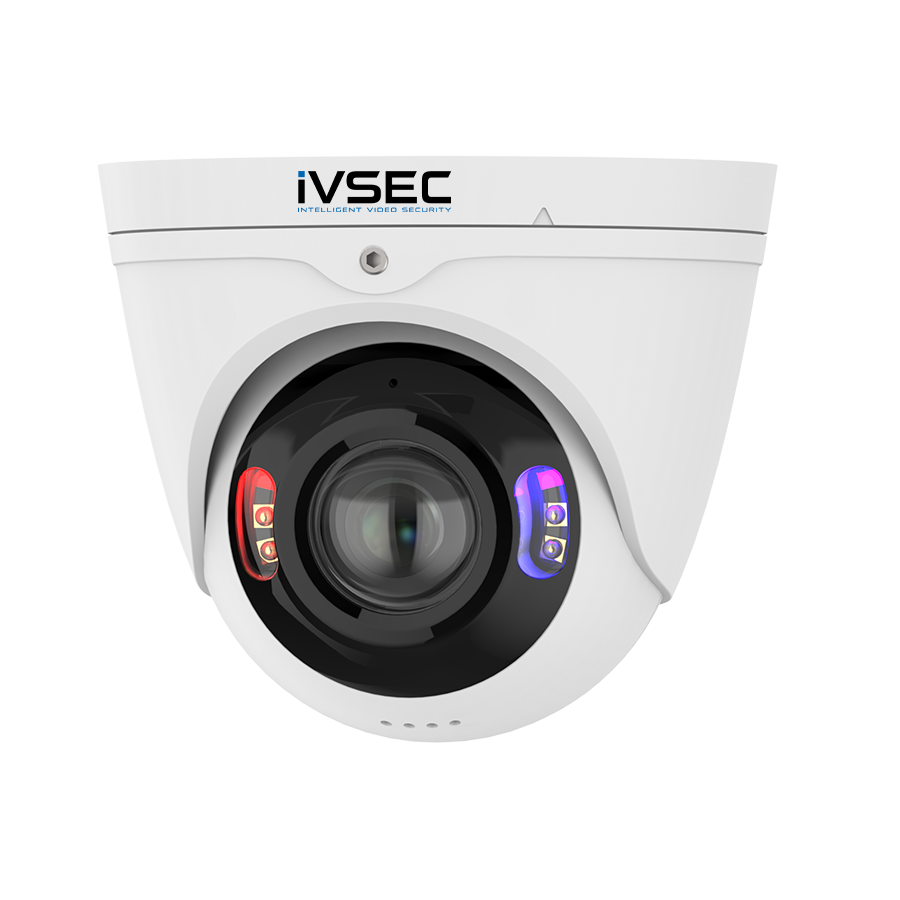

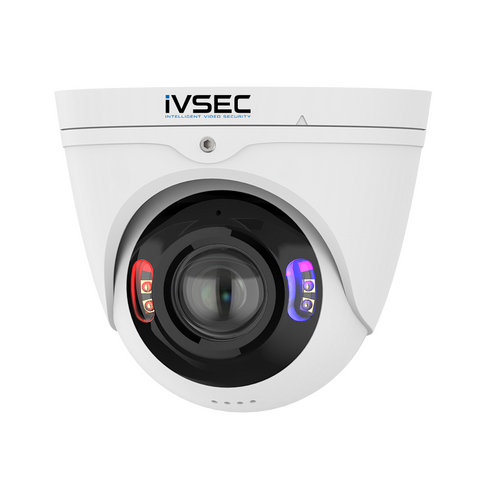

IVSEC NC543ADX 8MP Panoramic Eyeball IP Camera

180° View, 30FPS, Advanced IVS, PoE

The IVSEC NC543ADX Panoramic Eyeball IP Camera is a high-performance surveillance solution engineered for businesses and organisations requiring complete wide-area coverage with uncompromising clarity. Featuring an 8MP progressive CMOS sensor and delivering 4K Ultra HD resolution at 30 frames per second, this camera provides stunning detail while maintaining fluid motion capture, making it ideal for both high-traffic and sensitive security environments.

With its 180° panoramic 2.8mm fixed lens, the NC543ADX drastically reduces blind spots by covering expansive areas with just a single camera. From retail floors and shopping centres to warehouses, offices, schools, and transport hubs, this panoramic capability allows organisations to cut costs on installation and maintenance while increasing security efficiency.

The camera is further enhanced with advanced deterrence features, including integrated red/blue strobe lights and two-way audio with built-in microphone and speaker, enabling operators to proactively respond to suspicious activity. Combined with its Advanced Intelligent Video Analytics (IVS) such as face recognition, license plate detection, queue management, perimeter intrusion, and heat mapping, the NC543ADX transforms from a passive monitoring tool into an active security system.

Built to withstand demanding conditions, the NC543ADX is IP67 weather-rated and IK10 vandal-resistant, ensuring dependable outdoor or indoor use even in extreme environments. Its infrared and warm-light LEDs deliver up to 30m night vision, ensuring crisp and full-colour surveillance in low-light or complete darkness.

With support for Power over Ethernet (PoE), installation is simplified, requiring only a single cable for both power and data transmission. The NC543ADX also offers edge recording with microSD/SDHC cards, cloud backup via Dropbox, and seamless integration with popular CMS/VMS platforms via ONVIF Profiles S/G/T.

Now available at 7stores.au, the IVSEC NC543ADX Eyeball Panoramic IP Camera delivers unparalleled visibility, intelligent detection, and proactive deterrence features, making it the ultimate choice for those who demand cutting-edge professional surveillance solutions.

Why Buy the IVSEC NC543ADX?

• 4K Ultra HD (8MP) Resolution – Crystal-clear video at 3840 × 2160 with 30fps smoothness.

• 180° Panoramic Coverage – One camera covers wide areas, reducing the need for multiple units.

• Advanced Deterrence – Built-in strobe lights, microphone, and speaker for active threat response.

• Intelligent Video Analytics (IVS) – Includes face recognition, vehicle detection, heat map, queue length detection, intrusion alerts, and license plate recognition.

• Day & Night Excellence – IR and warm-light LEDs deliver up to 30m visibility in total darkness.

• Durable Design – IP67 weatherproof and IK10 vandal-resistant for outdoor/indoor reliability.

• Flexible Storage – Supports edge recording on microSD/SDHC cards plus Dropbox cloud backup.

• Easy Deployment with PoE – Simplifies cabling by combining data and power.

• Global Protocol Support – Multi-language firmware and ONVIF compliance for broad compatibility.

• Trusted Australian Supplier – Available at 7stores.au with full 3-Year Warranty.

Specifications

• Camera Type: Panoramic Eyeball IP Camera

• Image Sensor: 1/2.7″ Progressive CMOS

• Resolution: 8MP (3840 × 2160)

• Frame Rate: 30fps

• Lens: 2.8mm panoramic (180° field of view)

• Lens Type: Fixed

• IR Distance: Up to 30m

• LEDs: IR, Red & Blue, Warm White

• Day/Night Mode: Day, Night, Auto, Schedule

• Compression: H.265+, H.265, H.264+, H.264, MJPEG

• Streams: 3 streams

• Audio: Two-way audio (microphone & speaker included)

• IVS Analytics: Motion detection, face recognition, pedestrian & vehicle detection, line crossing, heat map, license plate recognition, region intrusion, queue length monitoring, object detection

• Cloud Option: Dropbox support

• Edge Recording: microSD/SDHC card

• Ethernet: 10/100/1000 Base-T

• PoE: IEEE 802.3at supported

• Power Supply: PoE, DC12V

• Power Consumption: <14W

• Connectors: RJ-45, DC Power Input, Reset Button

• Operating Environment: -30°C to +60°C (-22°F to 149°F), ≤90% RH

• Durability: IP67 weatherproof, IK10 vandal-resistant

• Dimensions: 127 × 136 × 136 mm

• Weight (Net/Gross): 0.80kg / 0.50kg

• Accessories: IV2422X, IV2433X, IV2444X, IV2455X, IV2457X, IV2477X

• Warranty: 3-Year Warranty

• In the Box: Free software (FTP), printed user guide, installation template, mounting screws and plugs
