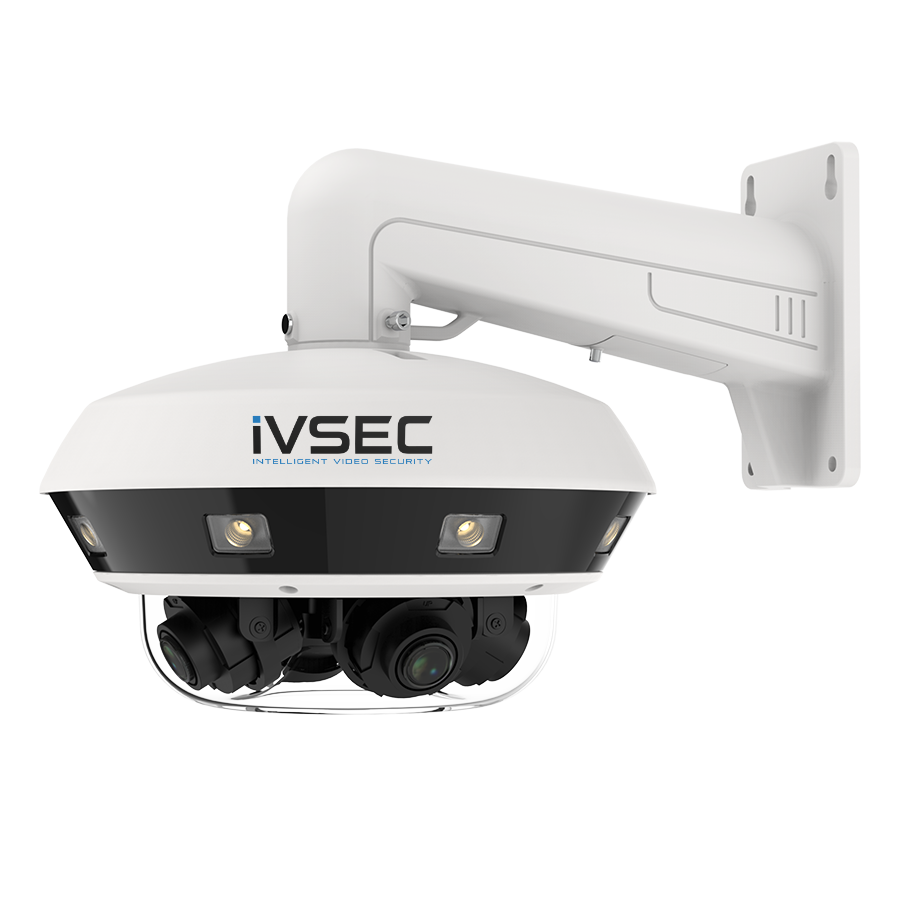

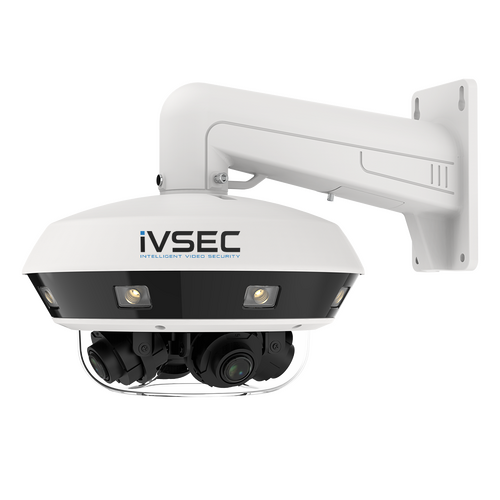

IVSEC NC542ADX 32MP Multi-Sensor Dome IP Camera

360° Coverage, Motorised Zoom, IR, PoE

The IVSEC NC542ADX Dome IP Camera represents the pinnacle of next-generation surveillance technology, delivering unmatched coverage and clarity for large-scale security applications. Featuring four independent 8MP sensors within a single robust housing, this 32MP multi-sensor dome camera provides a full 360° panoramic view with extraordinary detail. Each sensor can be individually adjusted and fine-tuned, making it the ideal solution for stadiums, airports, shopping centres, critical infrastructure, campuses, and commercial facilities where wide-area monitoring is essential.

At 25 frames per second, each channel captures fluid, lifelike video streams, while the 2.8–12mm motorised zoom lenses allow precise focus on critical areas without compromising overall coverage. Its 1/1.8″ Progressive Scan CMOS sensors ensure superior low-light performance, while advanced IR and white LED illuminators provide up to 35m of night vision, guaranteeing uninterrupted surveillance even in complete darkness.

Equipped with Intelligent Video Analytics (IVS), the NC542ADX can detect and respond to events in real time. Features such as face recognition, vehicle and pedestrian detection, license plate recognition, heat mapping, queue management, and perimeter intrusion detection allow businesses and government agencies to proactively identify risks and enhance security operations.

Built with a rugged IK10 vandal-resistant and IP67 weatherproof housing, the NC542ADX withstands harsh outdoor conditions while maintaining reliable operation in temperatures ranging from -30°C to +55°C. Its edge recording with microSD/SDHC card support and Dropbox cloud backup provide flexible data storage, while H.265+ compression reduces storage and bandwidth requirements without sacrificing video quality.

The camera also supports PoE (IEEE 802.3at), making installation straightforward with a single cable for both power and data. Seamless integration is guaranteed with ONVIF Profiles S/G/T and compatibility with a wide range of CMS, VMS, and NVR systems.

Now available at 7stores.au, the IVSEC NC542ADX is the professional’s choice for 360° wide-area surveillance, backed by a 3-Year Warranty and local Australian support.

Why Buy the IVSEC NC542ADX Dome IP Camera?

• Massive 32MP Resolution – Four 8MP sensors deliver unparalleled detail across a 360° field of view.

• Individually Adjustable Lenses – Customise coverage with 2.8–12mm motorised zoom lenses.

• Advanced Analytics (IVS) – Intelligent functions including face recognition, license plate detection, heat mapping, and queue length monitoring.

• Powerful Night Vision – IR and white LEDs provide up to 35m visibility in darkness.

• Durable & Reliable – IP67-rated, IK10 vandal resistant housing ensures year-round outdoor use.

• High Efficiency Video Compression – H.265+ reduces bandwidth and storage requirements.

• Flexible Storage Options – Edge recording with microSD card support plus Dropbox cloud integration.

• Easy Installation with PoE – Simplifies deployment in complex environments.

• Perfect for Wide-Area Security – Ideal for airports, retail centres, campuses, and government facilities.

• Available at 7stores.au – Australian stock with local support and full 3-Year Warranty.

Specifications

• Camera Type: Multi-Sensor Dome (360° Coverage)

• Image Sensor: 1/1.8″ Progressive Scan CMOS x4

• Total Resolution: 32MP (8MP x4 sensors)

• Video Resolution: 3840 × 2160 per sensor

• Frame Rate: 25fps

• Lens: 2.8–12mm Motorised Zoom

• Field of View (H.FOV): 48° to 112° per sensor

• Night Vision: 35m IR & White LEDs

• Day/Night Mode: Auto

• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG

• Streams: 2 Streams

• Audio Streaming: Supported (external mic input)

• Intelligent Video (IVS): Motion detection, face recognition, vehicle/pedestrian detection, line crossing, intrusion, object detection, heat map, queue length, license plate recognition

• Edge Recording: microSD/SDHC Card

• Cloud Backup: Dropbox supported

• Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, PPPoE

• ONVIF: Profiles S/G/T

• Ethernet: 10/100/1000 Base-T

• Power Supply: PoE IEEE 802.3at, DC12V, AC24V

• Power Consumption: <43W

• Connectors: RJ-45, DC Power Input, Analog Video Out, Audio In/Out, Alarm In/Out (x4)

• Operating Conditions: -30°C to +55°C, ≤95% RH

• Housing: IP67 weatherproof, IK10 vandal resistant

• Dimensions (HxWxL): 195 × 300 × 300mm

• Weight (Net): 4.6kg

• Warranty: 3-Year Warranty

• In the Box: Free software (FTP), printed user guide, installation template, mounting screws and plugs
