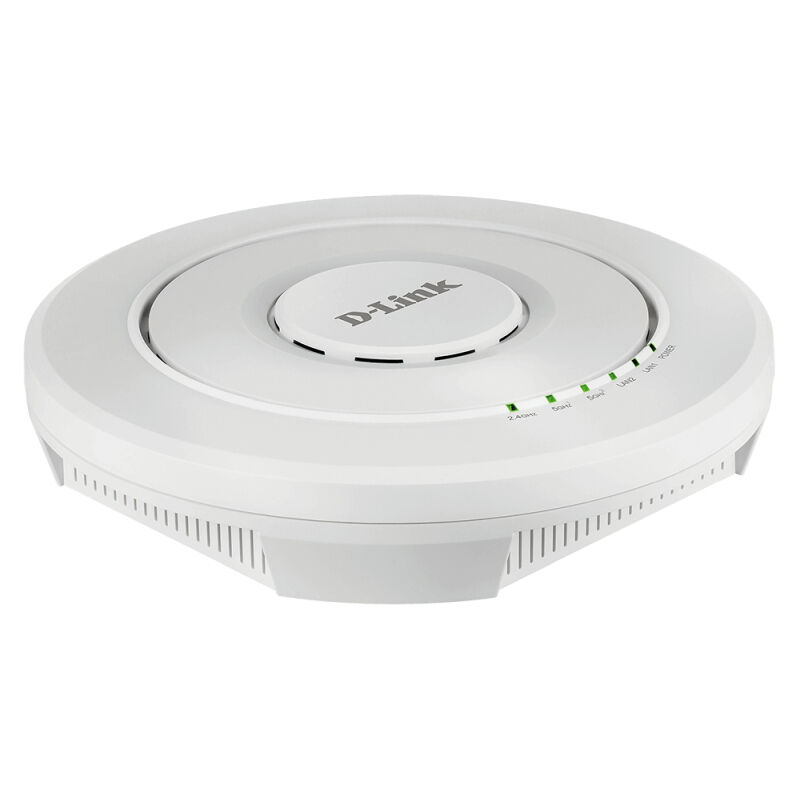

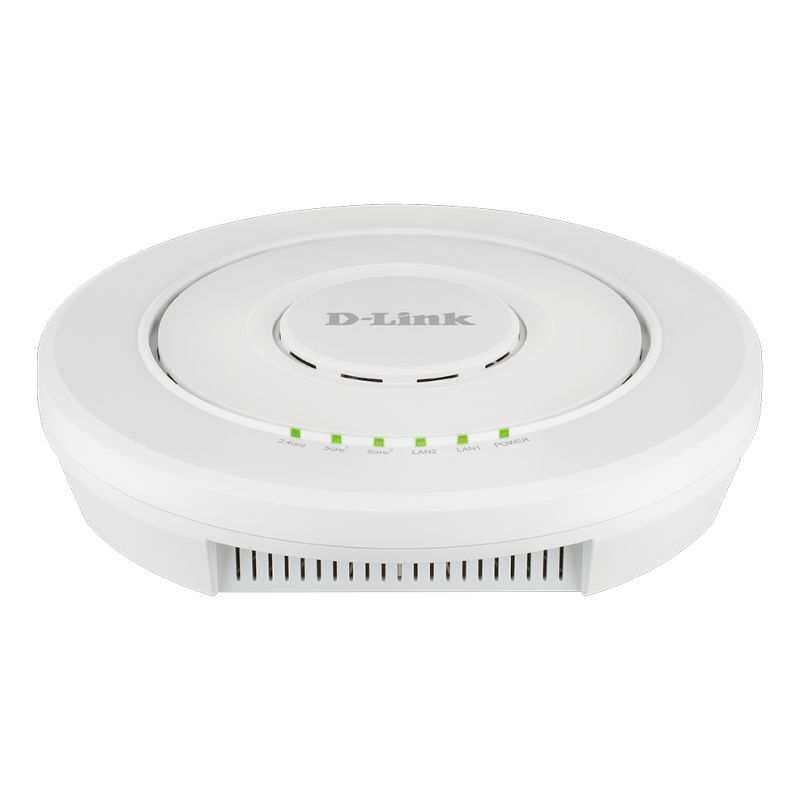

D-Link AC2200 Wave 2 Tri-Band PoE+ Access Point (DWL-7620AP) – High-Performance Indoor Wi-Fi with MU-MIMO, Controller Support, and 2.2Gbps Tri-Band Speed

The D-Link DWL-7620AP AC2200 Wave 2 Tri-Band PoE+ Access Point delivers next-generation enterprise wireless performance with tri-band concurrent connectivity, MU-MIMO, and flexible controller-based or standalone management. Designed for dense deployment environments such as schools, hotels, offices, and conference centres, this powerful access point offers combined wireless speeds up to 2.2Gbps, ensuring ultra-low latency, seamless roaming, and high client capacity—critical for modern digital infrastructure.

Equipped with one 2.4GHz band and two 5GHz radios, the DWL-7620AP enables load balancing across more devices and channels, reducing congestion and optimizing throughput for bandwidth-intensive applications like HD streaming, VoIP, cloud services, and large file transfers. Integrated MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology enhances efficiency by simultaneously communicating with multiple clients—ideal for enterprise environments with dozens of concurrent users.

The AP features two Gigabit Ethernet ports with Link Aggregation support, maximizing wired throughput and redundancy. It’s powered by IEEE 802.3at PoE+, allowing for streamlined installations with combined power and data over a single cable—ideal for ceiling, wall, or plenum-mount setups. The built-in antennas ensure a clean, integrated look with enterprise-grade wireless coverage.

The DWL-7620AP supports advanced roaming features, including Layer 2 and Layer 3 roaming, Fast Roaming, and band steering, ensuring seamless client transitions between access points without service interruption. Security is top-tier, with support for WPA3, WPA/WPA2 Enterprise, MAC filtering, rogue AP detection, and intrusion mitigation—keeping your network secure against unauthorized access and threats.

For large-scale network environments, the DWL-7620AP can be centrally managed via D-Link’s DWC-1000 or DWC-2000 wireless controllers, offering real-time monitoring, clustering, AP provisioning, and policy-based management. It also supports standalone and cluster-managed modes, delivering flexibility for both SMBs and enterprises.

Now available at 7stores.au with expert support and fast nationwide delivery, this enterprise-class access point ensures reliable, high-performance, scalable indoor Wi-Fi with enterprise-grade security and management.

Why the D-Link AC2200 Wave 2 PoE+ Access Point from 7stores.au?

• Tri-Band Wi-Fi Performance: Concurrent 2.4GHz + 2x 5GHz radios deliver up to 2.2Gbps aggregated throughput, ideal for high-density environments.

• Wave 2 802.11ac Technology: Features MU-MIMO, band steering, and beamforming for optimal performance across multiple clients.

• Controller-Managed or Standalone: Seamlessly integrates with DWC-1000 and DWC-2000 for scalable centralized wireless management.

• Enterprise-Ready Roaming: Includes Fast Roaming, Layer 2 and Layer 3 roaming, and seamless handoff for uninterrupted mobile client performance.

• PoE+ Powered Installation: Supports IEEE 802.3at PoE+ for simple, flexible deployment—no dedicated power outlet required.

• Secure Connectivity: Offers WPA3, WPA2-Enterprise, 802.1X authentication, rogue AP detection, and intrusion prevention.

• High Scalability with 32 SSIDs: Ideal for network segmentation in enterprise or multi-tenant environments.

• Dual Gigabit LAN with Link Aggregation: Enables high-speed wired redundancy and uplink flexibility.

• Available Now at 7stores.au: Local Australian support, expert service, and fast delivery, backed by D-Link’s Limited Lifetime Warranty.

D-Link DWL-7620AP AC2200 Access Point – Specifications

• Wi-Fi Standard: 802.11ac Wave 2

• Wi-Fi Configuration: Tri-Band – 2.4GHz + 2x 5GHz

• Wi-Fi Speed:

  • 2.4GHz: Up to 400 Mbps

  • 5GHz (x2): Up to 867 Mbps each

  • Combined: Up to 2.2 Gbps

• Antenna Type: Internal built-in antennas

• AP Design: Indoor | Ceiling or wall mountable

• LAN Interface: 2 x Gigabit Ethernet (with Link Aggregation support)

• PoE Support: IEEE 802.3at PoE+

• Operating Modes:

  • Access Point (AP)

  • WDS (Site-to-Multisite)

• Management Options:

  • Standalone

  • Cluster Managed

  • Controller Managed (DWC-1000 / DWC-2000)

• Security:

  • WPA3, WPA2-Enterprise, WPA/WPA2-PSK

  • 802.1X authentication

  • WEP

  • MAC filtering

  • Rogue AP detection

  • Intrusion detection and mitigation

• SSID Support: Up to 32 SSIDs

• Roaming Capabilities:

  • Layer 2 Roaming

  • Layer 3 Roaming

  • Fast Roaming

• Auto Features:

  • Auto Channel Selection

  • Auto Power Adjustment

• Dimensions: 205 x 39 mm

• Indoor or Outdoor: Indoor only

• Warranty: Limited Lifetime Warranty
