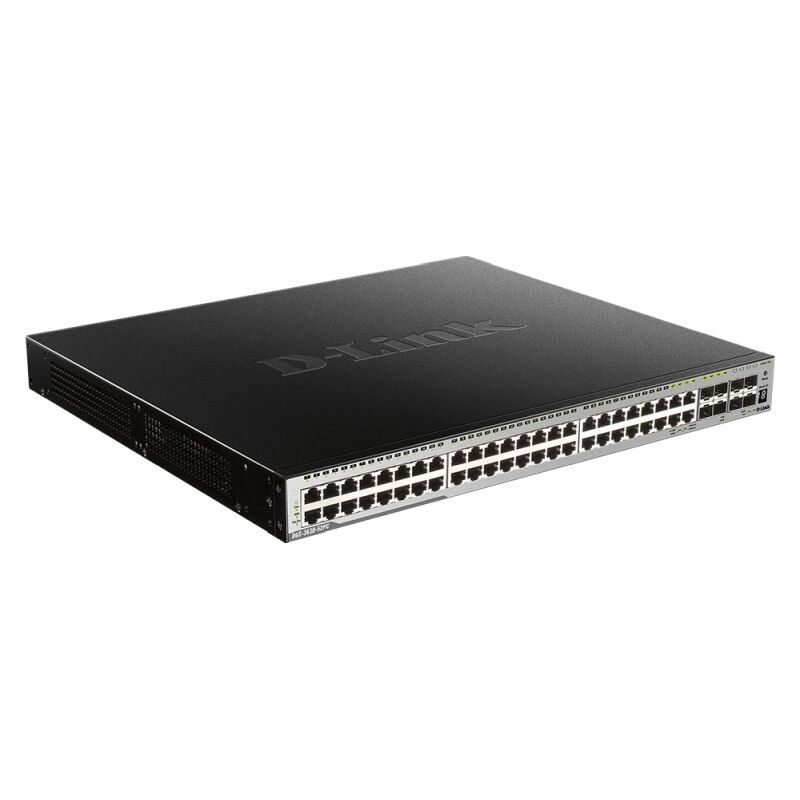

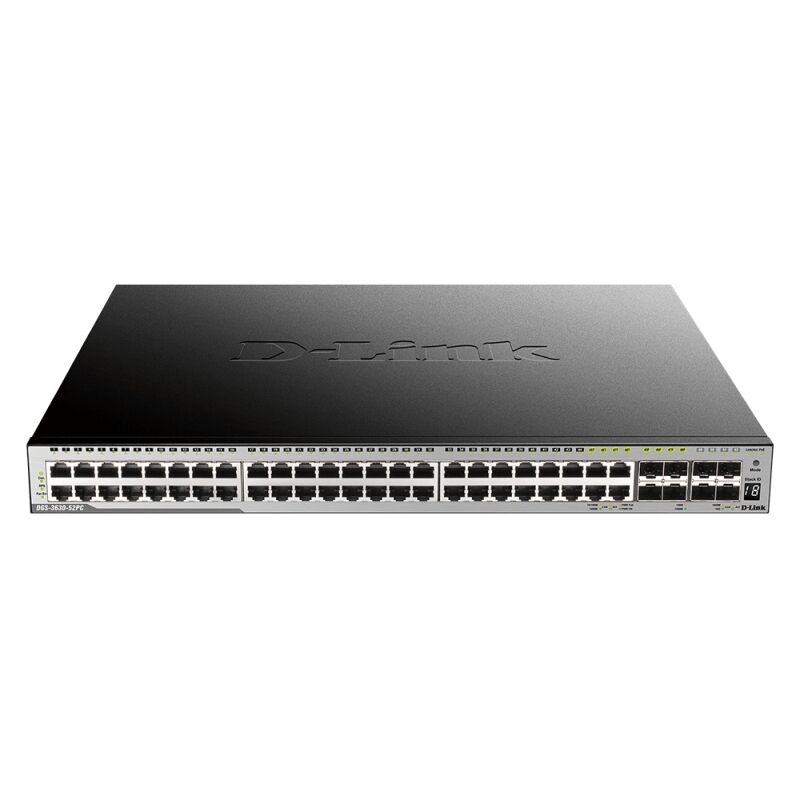

D-Link DGS-3630-52PC | 52-Port Layer 3+ Stackable Gigabit PoE Managed Switch with 4 x 10GbE Uplinks – Enterprise-Class Switching | Available at 7stores.au

^{D-Link DGS-3630-52PC 52-Port Layer 3+ Stackable Gigabit PoE Managed Switch with 4 x 10GbE SFP+ – Intelligent High-Density Switching for Power-Hungry Enterprise Networks}

The D-Link DGS-3630-52PC is a high-performance, enterprise-grade Layer 3+ managed switch designed to meet the evolving needs of high-density business networks, campus infrastructure, and large-scale IP surveillance deployments. Equipped with 48 x Gigabit PoE/PoE+ ports, 4 combo SFP ports, and 4 x 10GbE SFP+ uplinks, this switch provides a scalable, secure, and intelligent switching solution capable of handling the most demanding networking environments.

With a default PoE power budget of 370W, expandable to 740W via the DPS-700 redundant power supply, the DGS-3630-52PC is ideal for powering a wide range of PoE-enabled devices, including wireless access points, IP phones, VoIP gateways, and high-definition security cameras. Each port is fortified with 6kV surge protection, ensuring continued uptime even in challenging electrical environments.

This model supports advanced Layer 3+ features including RIP, OSPF, BGP, VRRP, multicast routing, and policy-based routing, which can be enabled through the Enhanced Image License, transforming the switch into a core routing engine with up to 16,000 IP routes and high-speed inter-VLAN performance.

Thanks to 80 Gbps stacking bandwidth, the DGS-3630-52PC allows up to 9 switches to be physically stacked or 32 to be virtually linked, creating a resilient and unified management domain across your enterprise. Combined with a switching capacity of 176 Gbps, it guarantees non-blocking throughput for latency-sensitive applications, VoIP, and high-definition video.

The switch also includes energy-efficient features such as IEEE 802.3az compliance and D-Link Green technology, reducing energy usage without sacrificing speed or performance. Built-in Web GUI, CLI, and SNMP support enable IT professionals to manage configurations, monitor performance, and respond to network changes with ease.

Available now at 7stores.au, the DGS-3630-52PC is your go-to choice for a robust, reliable, and fully scalable Layer 3+ PoE solution backed by D-Link’s Limited Lifetime Warranty.

^{Why Buy the DGS-3630-52PC from 7stores.au?}

• Enterprise-Class PoE Switching
  48 PoE/PoE+ Gigabit ports with a scalable power budget up to 740W—perfect for powering high-performance IP devices at the edge.

• Full Layer 3+ Routing Capability
  Upgrade with the Enhanced Image License to enable advanced protocols including RIP, OSPF, BGP, and policy-based routing for complete network control.

• High-Capacity Uplinks & Stacking
  Four 10GbE SFP+ uplinks provide seamless backbone connectivity and data aggregation, while stacking supports up to 9 physical or 32 virtual units.

• Superior Throughput & Switching Fabric
  Delivers 176 Gbps switching capacity for non-blocking, high-speed packet forwarding in complex, multi-segmented networks.

• Redundant Power & Surge Protection
  Supports the DPS-700 RPS and includes 6kV surge protection on all RJ-45 ports for maximum uptime and protection.

• Energy Efficient Design
  Features D-Link Green and IEEE 802.3az EEE compliance for reduced power consumption and sustainable operation.

• Advanced VLAN & Security
  Supports 4K VLANs, Guest VLANs, Voice VLANs, 802.1X authentication, ACLs, DHCP server screening, and more.

• Flexible Management Tools
  Choose from a user-friendly Web GUI, full-featured CLI, SNMP, or cable diagnostics—ideal for IT professionals in complex environments.

• Australian Support with Fast Delivery
  Available from 7stores.au, Australia’s trusted source for enterprise networking solutions. Backed by fast shipping and knowledgeable support.

^{Technical Specifications – D-Link DGS-3630-52PC}

• Series: DGS-3630

• Switch Type: Layer 3+ Managed Stackable PoE Switch

• Ports Configuration:

  • 48 x 1000Base-T PoE/PoE+

  • 4 x Combo Ports (1000Base-T or SFP)

  • 4 x 10GbE SFP+ Uplinks

• PoE Budget:

  • 370W default

  • 740W with DPS-700 Redundant Power Supply

• Routing Table Size: Up to 16,000 entries

• Layer 3+ Features (via Enhanced Image):

  • Static Routing

  • RIP, OSPF, BGP, VRRP

  • Multicast Routing (PIM-DM/SM)

  • Policy-Based Routing

  • Inter-VLAN Routing

• Stacking Support:

  • Physical Stacking: Up to 9 units

  • Virtual Stacking: Up to 32 units

• Stacking Bandwidth: 80 Gbps per unit

• Switching Capacity: 176 Gbps

• Security & VLAN Support:

  • 802.1X Access Control

  • DHCP Server Screening

  • Access Control Lists (ACL)

  • 4K VLAN Groups, Guest VLAN, Voice VLAN

  • IGMP Snooping

• QoS: Yes (Layer 2 and Layer 3)

• Jumbo Frame Support: 12K Bytes

• Link Aggregation: Yes

• Management Interfaces:

  • Web GUI

  • CLI

  • SNMP

  • Cable Diagnostics

• Energy Saving:

  • IEEE 802.3az (EEE)

  • D-Link Green

• Surge Protection: 6kV on all RJ-45 ports

• Fans: 4 Intelligent Cooling Fans

• Dimensions: 441 x 259.8 x 44 mm

• Form Factor: 19” Rack Mountable (1U)

• Warranty: Limited Lifetime Warranty
