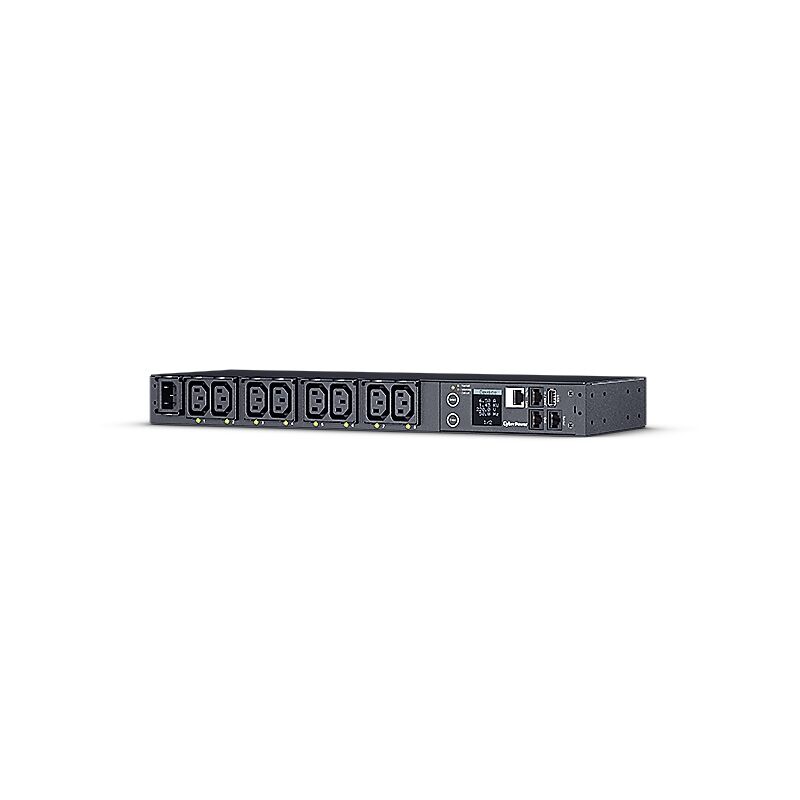

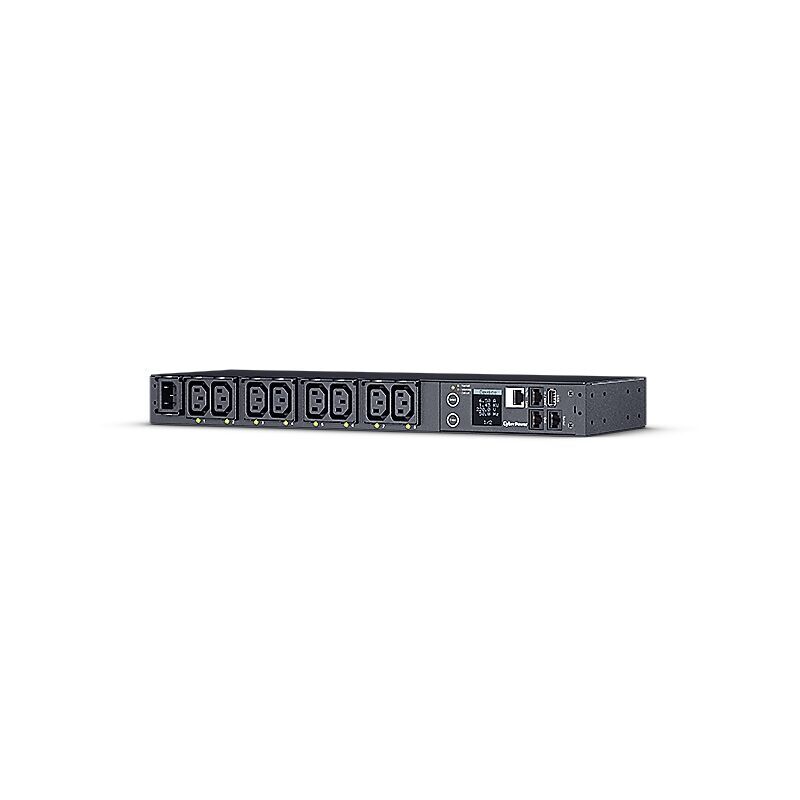

CyberPower Switched Enclosure PDU – 12-Amp | Intelligent 1U Rackmount PDU with SNMP Remote Management, Individual Outlet Control & ±1% Metering Accuracy

The CyberPower Switched Enclosure PDU 12-Amp is an enterprise-grade, intelligent switched power distribution unit designed for rackmount deployments requiring precision control, advanced monitoring, and secure power management. Engineered to meet the demands of modern data centers, colocation facilities, network closets, and enterprise server environments, this 1U horizontal or vertical rackmount PDU delivers controlled and monitored power to mission-critical IT equipment while supporting full remote access via SNMP and IP protocols.

This 12A rated switched PDU features 8 individually controllable IEC C13 outlets, fed by a secure IEC C14 input, offering real-time outlet-level control with remote ON/OFF switching, power sequencing, and load balancing to optimize uptime and energy usage. The ±1% metering accuracy, combined with a hot-swappable and auto-orienting color LCD panel, provides comprehensive local data visibility—including input voltage, current, frequency, power consumption, network status, and even environmental conditions via optional ENVIROSENSOR support.

Ideal for both small-scale and large-scale IT environments, the PDU supports SNMPv1/v3, IPv6, HTTPS, SSH, RADIUS, LDAP, Windows AD, and other key protocols required for secure, centralised management. Paired with PowerPanel Business or PowerPanel Enterprise software, administrators gain complete command of power usage, control scheduling, environmental alerts, firmware upgrades, and event logging from anywhere.

Housed in a durable industrial-grade steel chassis, the unit features IEC outlet locking, cord retention tray, external ground pin, and dual adjustable L-short and L-long brackets for flexible mounting. With ultra-low power consumption (<5W idle) and compliance with CE, UL60950, UL62368, and RoHS standards, this intelligent switched PDU delivers resilient, secure, and centralized rack-level power control.

Now available at 7stores.au, the CyberPower Switched Enclosure PDU 12A is a critical upgrade for any enterprise infrastructure seeking smart energy management, automation, and improved operational visibility in the rack.

Why Buy the CyberPower Switched Enclosure PDU 12A from 7stores.au?

• Individually Controllable Outlets: Manage and monitor each IEC C13 outlet remotely, ideal for load shedding, rebooting, and scheduling.

• Real-Time Load Monitoring: ±1% metering accuracy with hot-swappable, full-color LCD providing detailed diagnostics and alerts.

• Secure, Scalable Remote Access: SNMP, HTTPS, SSH, and full support for IPv4/IPv6 protocols, with authentication via LDAP, RADIUS, and Active Directory.

• Environmental Integration: Supports ENVIROSENSOR for real-time environmental monitoring (temperature, humidity, etc.).

• Professional Installation-Ready: Includes IEC locking, cord retention tray, steel enclosure, and adjustable mounting brackets.

• Future-Proof & Upgradeable: USB-based firmware upgrades and a user-upgradeable platform keep your PDU up to date without downtime.

• Energy-Efficient Operation: Consumes less than 5W idle—ideal for high-efficiency IT ecosystems.

• Local Australian Support: Backed by 7stores.au’s trusted warranty services and technical assistance with 2-Year Advanced Replacement Warranty.

Specifications – CyberPower Switched Enclosure PDU 12-Amp

• Nominal Input Voltage: 100 – 240V

• Input Frequency: 50 / 60 Hz

• Maximum Input Current: 12A (UL) / 10A (CE)

• Input Connector: IEC C14

• Power Cord Length: 3.05m

• Total Outlets: 8 x IEC C13

• Form Factor: 1U Horizontal or Vertical Rackmount

• Output Voltage: Matches Input

• Idle Power Consumption: < 5W

• Overcurrent Protection: Yes (Circuit Breaker)

• Outlet-Level Monitoring Accuracy: ± 1%

• Remote Outlet Control: Yes (Individual Switching & Sequencing)

• LCD Display Info:

  • Input Voltage, Input Frequency

  • Current (Amps), Power (kW)

  • Serial Number, Network Status

  • Environmental Status (when sensor connected)

  • Firmware & Hardware Versions

• Hot-Swappable LCD Module: Yes

• Auto LCD Orientation: Yes

• LED Indicators: PDU Status, Tx/Rx, Link, Outlet Status

• Connectivity Ports:

  • 1 x RJ45 (Ethernet)

  • 1 x RJ45 (Serial)

  • 1 x RJ45 (ENVIROSENSOR / Daisy Chain In)

  • 1 x RJ45 (Daisy Chain Out)

  • 1 x USB-A (for firmware upgrades)

• Supported Software:

  • PowerPanel Business Edition (Small-Medium Sites)

  • PowerPanel Enterprise Edition (Large-Scale Environments)

• Network Protocols Supported:

  • IPv4/IPv6, SNMPv1/v3, HTTP/HTTPS

  • TCP/IP, UDP, DHCP, NTP, DNS

  • SMTP, SSL, SSH, TLS, FTP, Telnet, Syslog

• Authentication Support: RADIUS, LDAP/LDAPS, Windows Active Directory

• Environmental Monitoring Support: Yes (via ENVIROSENSOR)

• Cord Retention Tray: Yes

• IEC Receptacle Locking: Yes

• External Ground Pin: Yes

• Adjustable Mounting Brackets: 2 Sets (L-short, L-long)

• Construction: Industrial-Grade Steel

• Dimensions (mm): 433 x 44 x 112

• Weight: 2.1 kg

• Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A

• RoHS Compliant: Yes

• Warranty: 2 Years Advanced Replacement (via 7stores.au)

What’s in the Box?

• 1 x CyberPower Switched Enclosure PDU 12-Amp

• 1 x Cord Retention Tray

• 2 x Adjustable Mounting Bracket Sets (L-short & L-long)

• 1 x Power Cord (3.05m)

• 1 x Serial Cable

• 1 x Screw Kit

• 1 x Set of Cable Ties

• 1 x User Manual
