CyberPower PDU81004 12A Switched Managed Bypass Power Distribution Unit – Precision-Controlled Intelligent PDU with Real-Time Monitoring

The CyberPower PDU81004 Switched Managed Bypass PDU – 12 Amp is a compact, high-performance intelligent power distribution unit engineered for advanced control, monitoring, and energy optimization in critical IT, networking, and server rack environments. Designed to operate efficiently in high-demand applications, the PDU81004 delivers precision load management through independent outlet control, ±1% metering accuracy, and comprehensive network integration across SNMP and web-based platforms.

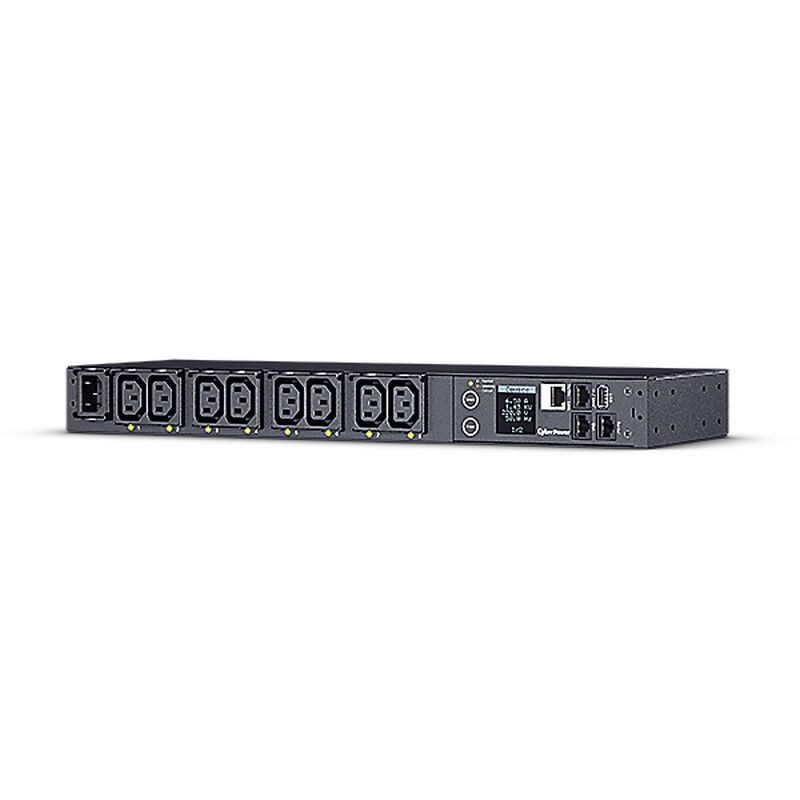

Featuring 8 individually switchable IEC C13 outlets, this 1U vertical or horizontal rackmount unit is equipped with a hot-swappable, rotatable LCD that provides real-time information on voltage, frequency, amperage, and kilowatt usage. The PDU81004’s bypass function ensures maintenance and servicing can occur without interrupting power to critical devices. Its steel industrial-grade construction, user-upgradeable firmware, and compatibility with PowerPanel Business/Enterprise software make it the perfect choice for data centers, edge computing nodes, and enterprise-grade server environments.

With a 12 Amp UL rating and 10 Amp CE compliance, the PDU81004 is globally deployable and fully equipped with remote SNMP control, environmental sensor support, and robust protocol authentication such as LDAP, RADIUS, and Windows AD. Available now from 7stores.au, this model is covered by a 2-Year Manufacturer’s Warranty and backed by Australian-based support.

Why Buy the CyberPower PDU81004 12A Switched Bypass PDU from 7stores.au?

• Switched Outlet Control for Precision Management: Control each of the 8 IEC C13 outlets independently to remotely reboot devices, manage energy usage, or cycle power without physical access.

• Bypass Function for Zero Downtime: Allows service and maintenance without interrupting connected equipment, ensuring continuous operation in mission-critical deployments.

• Real-Time Intelligent Monitoring: The color LCD delivers granular insights, including input voltage, power draw in kW, and system-level diagnostics, backed by ±1% metering precision.

• Network-Ready with Extensive Protocol Support: Integrates seamlessly with enterprise networks using SNMPv3, HTTPS, Syslog, Telnet, and more.

• Compact & Versatile Form Factor: Install as 1U horizontal or vertical rackmount with flexible bracket options (L-short & L-long) and IEC receptacle locking for secure deployment.

• Industrial Durability & Compliance: Constructed from durable steel and certified for CE, FCC Class A, UL60950, and RoHS — engineered to perform under high-temperature environments.

• Environmental Awareness & Automation: Supports ENVIROSENSOR, enabling intelligent response based on real-time temperature or humidity changes within the rack.

CyberPower PDU81004 – Technical Specifications

• Phase: Single Phase

• Nominal Input Voltage: 100 – 240 VAC

• Input Frequency: 50 / 60 Hz

• Max Input Current: 12A (UL), 10A (CE)

• Input Connector: 1 x IEC C14

• Power Cord Length: 3.05m

• Output Voltage: Mirrors Input Voltage

• Outlet Banks: 1

• Outlets: 8 x IEC C13 (Front)

• Remote Outlet Control: Yes, per outlet

• Outlet Metering Accuracy: ±1%

• Rack Height: 1U

• Form Factor: 1U Vertical / Horizontal Rackmount

• Construction: Steel

• Weight: 2.1kg

• Dimensions: 433 x 44 x 112mm

• Certifications: CE, FCC Class A, UL60950, EN 55032 Class A, RoHS

• Warranty: 2 Years

Monitoring & Connectivity

• LCD Display: Hot-swappable, rotatable, color

• Display Metrics:

  • Input Voltage (Volts)

  • Frequency (Hz)

  • Load Amps

  • Power Consumption (kW)

  • Serial Number

  • Network Diagnostics

  • Firmware & Hardware Versions

  • Environmental Status

• LED Indicators: PDU Status, Tx/Rx, Link, Outlet

• Ports:

  • RJ45 (Network)

  • RJ45 (Serial)

  • RJ45 In/Out (Daisy Chain)

  • RJ45 (ENVIROSENSOR)

  • USB-A for Firmware Upgrade

• Supported Protocols:
  IPv4/IPv6, SNMPv1/v3, HTTP/HTTPS, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog

• Authentication Support: RADIUS, LDAP, LDAPS, Windows AD

• Firmware: Upgradeable by USB

Key Features

• Switched Outlet Management

• Automatic Bypass Operation

• Real-Time Local & Remote Monitoring

• Power Sequencing for Device Boot Control

• Rotatable Color LCD with ±1% Metering Accuracy

• PowerPanel Business & Enterprise Software Compatibility

• Daisy-Chain Capable

• Supports Environmental Sensors

• Industrial-Grade Steel Chassis

• Cord Retention Tray

• IEC Receptacle Locking

• USB Firmware Upgrade Port

• Multiple Mounting Bracket Sets Included

What’s in the Box?

• 1 x CyberPower PDU81004

• 1 x User Manual

• 1 x Product Registration Card

• 1 x Cord Retention Tray

• 1 x Set of Mounting Brackets (L-short & L-long)

• 1 x Cable Tie Kit

• 1 x Screw Kit
