CyberPower OR1000ERM1U Premium Smart App Rack UPS – 1000VA/600W | Energy-Efficient, Compact, and Scalable Backup Power for Rack Environments

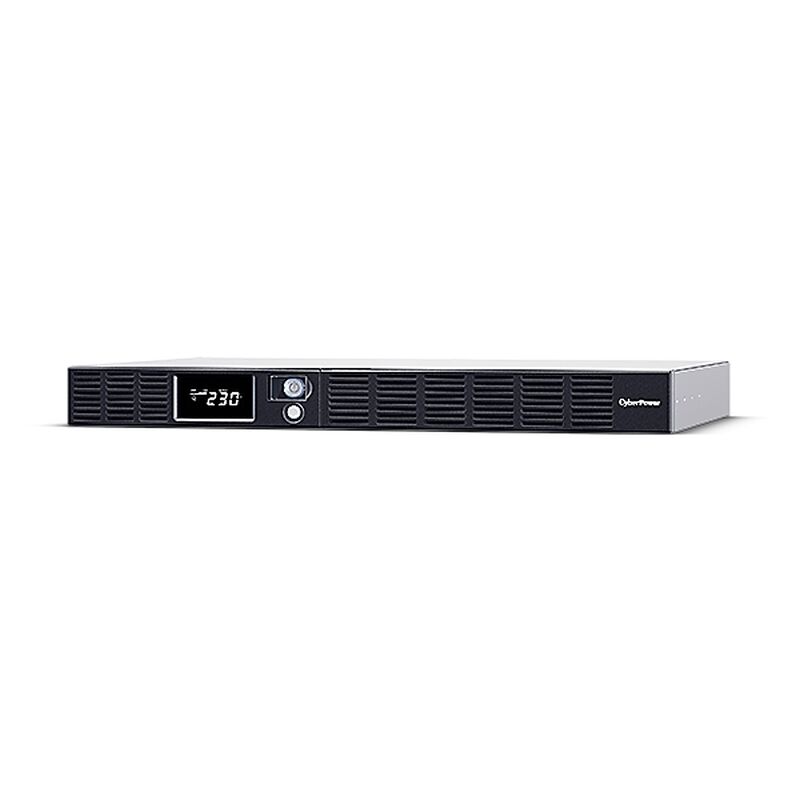

The CyberPower OR1000ERM1U Premium Smart App Rack UPS is a high-performance, energy-efficient line-interactive backup power solution, specifically designed for rackmount IT environments, network equipment, and critical electronics that demand reliability in compact form. With a power rating of 1000VA / 600W, this 1U UPS offers robust voltage regulation, battery backup, and surge protection—ensuring uptime and equipment longevity in the face of electrical disturbances.

At the core of the OR1000ERM1U is CyberPower's GreenPower UPS™ Bypass Technology, which enhances system efficiency by reducing energy consumption and heat output, resulting in lower operating costs. The automatic voltage regulation (AVR) boosts under-voltage conditions without switching to battery, extending battery life. It delivers simulated sine wave output during outages, suitable for small to medium-sized servers, NAS devices, telecom gear, and other non-sensitive electronics.

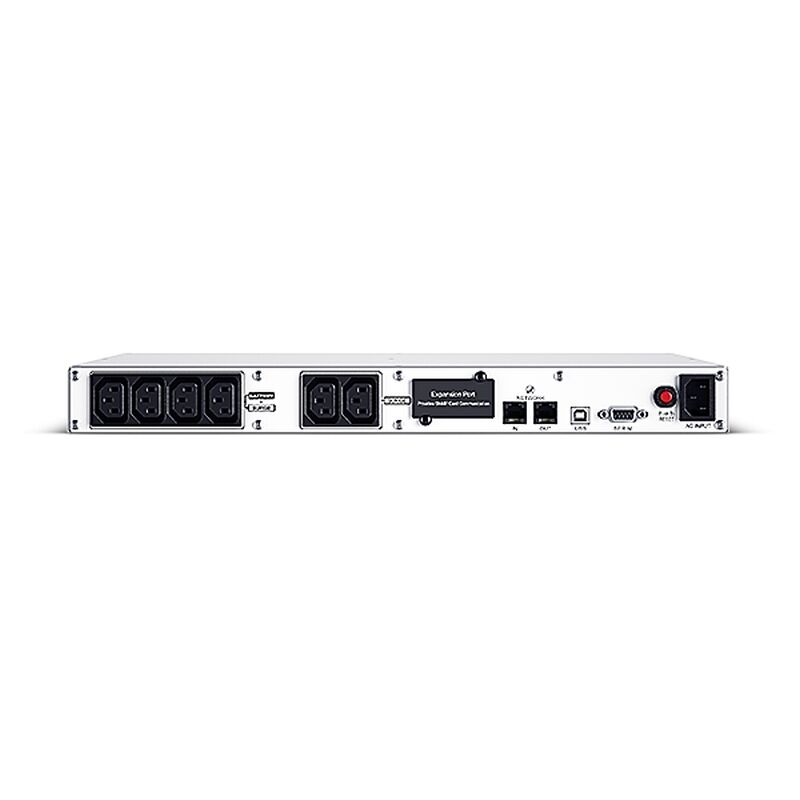

The unit includes 6 IEC C13 outlets, with 4 providing battery and surge protection, and 2 dedicated to surge-only protection, allowing for flexible load distribution. The LCD panel provides real-time status for power, battery, and load conditions, while USB and serial ports, along with optional SNMP/HTTP capability, allow seamless integration into your network monitoring environment via PowerPanel Business software.

Weighing just 13.7kg and designed with hot-swappable, user-replaceable batteries, the OR1000ERM1U is not only compact but also serviceable and scalable with SNMP support and network-grade surge protection. Backed by a 2-year warranty and readily available at 7stores.au, it is the perfect choice for businesses looking to protect their IT infrastructure without compromising on rack space, energy efficiency, or control.

Why Buy the CyberPower OR1000ERM1U from 7stores.au?

• Space-Saving 1U Rackmount Design: Ideal for network racks with limited vertical space—perfect for MSPs, SMEs, and edge computing environments.

• GreenPower Energy Saving Technology: Reduces power consumption, heat, and operating costs—aligned with eco-conscious IT environments.

• Line-Interactive UPS Topology: Offers fast, automatic voltage regulation and battery backup during voltage sags or outages, ensuring uptime.

• Simulated Sine Wave Output: Protects devices that are less sensitive to waveform type while offering significant cost efficiency.

• Advanced LCD Display & Alerts: Easily monitor UPS and power status with intuitive LCD and audible alarms.

• USB & Dry Contact Ports: Offers flexible connectivity and integration into IT infrastructure.

• Remote Monitoring Ready: Upgradeable via optional RMCARD205 SNMP card for remote management and real-time system alerts.

• Built-in Network/Phone Line Protection: RJ11/RJ45 input and output protect communication lines from surges.

• Hot-Swappable Batteries: Maintain uptime during maintenance—replace batteries without powering down the UPS or connected devices.

• Expertly Supported in Australia: Backed by 7stores.au with reliable customer support and fast local availability.

Specifications – CyberPower OR1000ERM1U Premium Smart App Rack UPS

• Capacity: 1000VA / 600W

• Topology: Line-Interactive

• Output Waveform: Simulated Sine Wave

• Form Factor: 1U Rackmount

• Input Voltage: 230V Nominal

• Input Voltage Range: 165 - 271V

• Adjustable Voltage Range: 189–207V or 253–271V

• Input Frequency: 50 ± 3Hz | 60 ± 3Hz (Auto-Sensing)

• Power Factor: 0.6

• Input Connector: IEC C14

• Power Cord Type: Detachable IEC C14 x1

• Power Cord Length: 1.83m

• Outlets: 6 x IEC C13

  • Battery + Surge Protected: 4

  • Surge-Only Protected: 2

• Transfer Time: Typical 4ms

• AVR Function: Single Boost

• Runtime at Half Load: 14 minutes

• Runtime at Full Load: 3.5 minutes

• Recharge Time: 8 hours (typical)

• Battery Type: User-Replaceable, Hot-Swappable

• Replacement Battery Pack: RBP0025 (1x)

• Surge Protection: 810 Joules

• EMI/RFI Filtering: Yes

• Phone/Network Protection: RJ11/RJ45 Combo (1-in, 1-out)

• LCD Panel: Status Display (Power, Battery, Load, Mode)

• Controls: Alarm, Mode, Input/Output Display

• Indicators: Power On LED

• Communication Ports:

  • 1x HID USB

  • 1x Serial (Dry Contact)

• Remote Management: SNMP/HTTP with Optional RMCARD205

• Software: PowerPanel Business Edition (Recommended)

• Enclosure: Metal

• Rackmount Hardware: Included (Rackmount Ears)

• Dimensions (mm): 433 x 44 x 389

• Weight: 13.7 kg

• Rack Height: 1U

• Thermal Dissipation: 24 BTU/hr

• Certifications: CE, EAC, RCM, RoHS

• Warranty: 2-Year Standard (with local support via 7stores.au)

What’s in the Box?

• 1 x CyberPower OR1000ERM1U UPS

• 1 x Set of Rackmount Ears

• 1 x USB Cable

• 1 x Power Cord

• 1 x User Manual
