CyberPower PDU24004 Metered ATS Power Distribution Unit – 10 Amp | Dual Input 1U Rackmount PDU with Auto Transfer Switching and Real-Time Load Monitoring

The CyberPower PDU24004 Metered ATS 10A is a high-performance Auto Transfer Switch (ATS) Power Distribution Unit, engineered for seamless power redundancy and real-time load visibility in enterprise server racks, networking environments, data centers, and mission-critical IT deployments. Designed with dual IEC C14 power inputs, this intelligent 1U horizontal PDU ensures uninterrupted power delivery by automatically switching to the secondary power source if the primary input fails—all within 10 milliseconds or less, eliminating downtime and safeguarding sensitive electronic infrastructure.

With a maximum input current rating of 10A (CE) and 12A (UL), the CyberPower PDU24004 supports up to 12 IEC C13 rear-mounted outlets, allowing centralized distribution of unfiltered electrical power to IT and AV equipment. Its industrial-grade steel chassis, cord retention tray, and IEC receptacle locking mechanisms make it a robust and secure addition to any high-availability setup.

The metered LCD interface offers real-time local monitoring of input voltage, frequency, current draw, power consumption, and even hardware/firmware versions. The LCD module is hot-swappable and fully user-configurable, allowing technicians to define preferred source, load configuration, and screen behavior. Built-in RJ45 serial connectivity enables firmware updates and remote setup, while user-upgradeable firmware ensures your PDU stays future-ready.

Now available at 7stores.au, the CyberPower PDU24004 Metered ATS PDU combines critical power resilience, intelligent monitoring, and flexible configuration—a trusted solution for IT managers seeking to ensure business continuity, remote visibility, and rack-level control.

Why Buy the CyberPower PDU24004 ATS PDU from 7stores.au?

• Redundant Power Input Design: Dual IEC C14 inputs support auto-switching between two power sources with <10 ms failover, ensuring continuous uptime.

• Real-Time Load Monitoring: LCD panel provides local readouts of volts, hertz, amps, kilowatt usage, and system firmware data—ideal for capacity planning and diagnostics.

• User-Configurable Display & Controls: Easily manage source preferences, outlet behavior, and visual settings via the hot-swappable color LCD interface.

• Rack-Optimized 1U Form Factor: Slim profile fits into standard 19” racks, enabling dense deployments without occupying valuable vertical space.

• Secure, Reliable Construction: Steel enclosure, IEC outlet locking, cord retention tray, and external ground pin ensure compliance and physical safety.

• Easy Maintenance & Upgrades: Hot-swappable LCD and USB-based firmware updates keep your infrastructure current without taking systems offline.

• Trusted Local Support from 7stores.au: Backed by a 2-year advanced replacement warranty and fast Australian-based service.

Specifications – CyberPower PDU24004 Metered ATS 10A Rackmount PDU

• Phase: Single Phase

• Input Voltage: 200 – 240V

• Input Frequency: 50 / 60 Hz

• Maximum Input Current: 12A (UL) | 10A (CE)

• Power Inputs: Dual IEC C14 (x2)

• Power Cord Length: 3.05m

• Form Factor: 1U Horizontal Rackmount

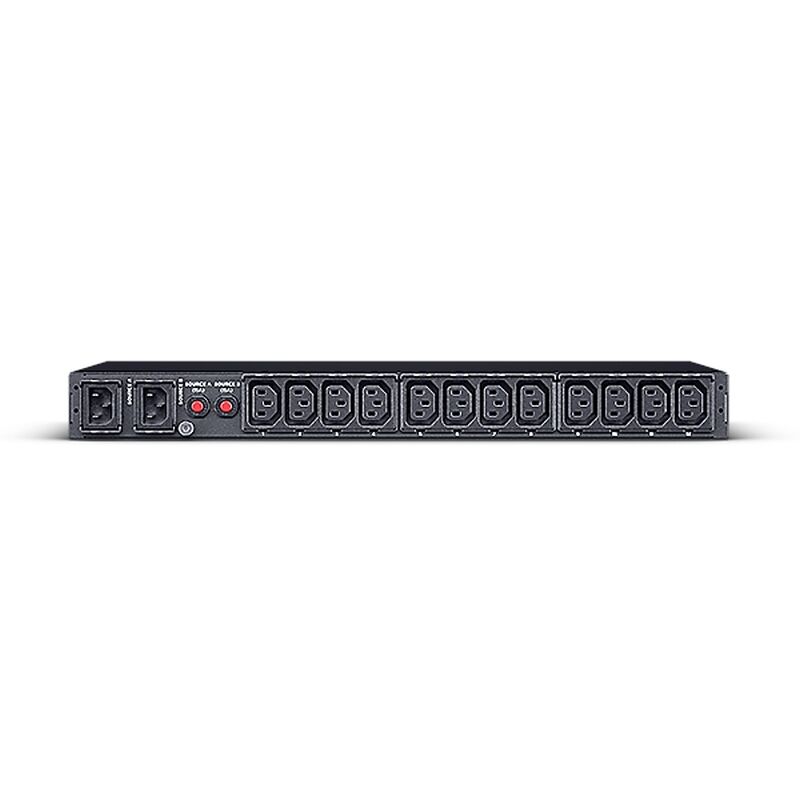

• Total Outlets: 12 Rear Outlets

  • 12 x IEC C13

• Output Voltage: Pass-through (Depends on Input)

• Overload Protection: Circuit Breaker

• Overcurrent Protection (Bank): 10A

• Cord Retention Tray: Yes

• IEC Receptacle Locking: Yes

• External Ground Pin: Yes

• Mounting Brackets: Adjustable (1 Set Included)

• LCD Display:

  • Input Voltage

  • Input Frequency

  • Current (Amps)

  • Power (Kilowatts)

  • Serial Number

  • Hardware & Firmware Versions

• LCD Features:

  • Hot-swappable

  • Color Interface

  • Preferred Source Setting

  • Load Configuration

  • LCD Brightness & Reset

• LED Indicators: PDU Status | Source Status | Load

• Connectivity: RJ45 Serial Port

• Firmware: User-upgradeable via USB

• Enclosure: Steel

• Dimensions (mm): 433 x 44 x 215

• Weight: 3.5 kg

• Certifications: CE | FCC Class A | UL62368 | EN55032 Class A | IEC 62368 | RoHS

• Warranty: 2 Years (Advanced Replacement via 7stores.au)

Key Features

• Dual-input ATS (Automatic Transfer Switch) with <10ms switchover

• 12 IEC C13 rear-mounted outlets

• LCD monitoring panel with hot-swappable design

• Real-time monitoring of power usage and input source

• USB firmware upgrade support

• Adjustable mounting brackets and cord retention tray

• Rugged steel chassis with locking IEC receptacles

• Rack-friendly 1U horizontal design

What’s in the Box?

• 1 x CyberPower PDU24004 Metered ATS PDU

• 1 x Cord Retention Tray

• 1 x Set of Adjustable Mounting Brackets

• 1 x Power Cord (3.05m)

• 1 x Serial Cable (RJ45)

• 1 x Screw Kit

• 1 x Cable Ties

• 1 x User Manual
