CyberPower OLS10KERT5U 10kVA/10kW Premium Smart App Rackmount UPS – Online Double Conversion | Available at 7stores.au

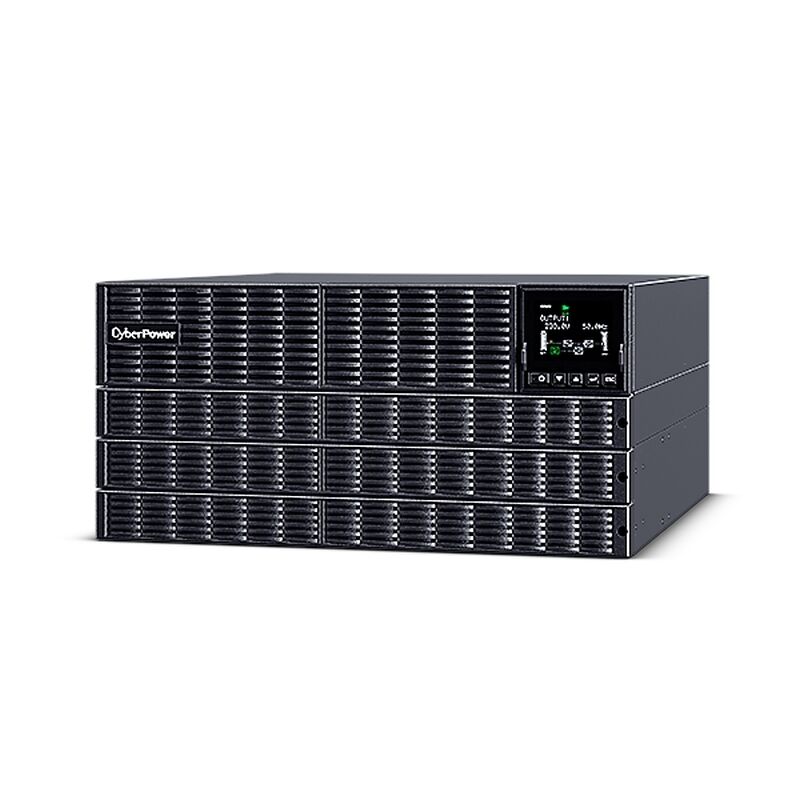

CyberPower OLS10KERT5U 10000VA/10000W Premium Smart App Rack UPS – Enterprise-Grade Online Power Backup for Critical Systems

The CyberPower OLS10KERT5U Premium Smart App UPS delivers uncompromising 10kVA/10kW of high-density online power protection in a space-efficient 5U rackmount/tower convertible form factor. Designed for enterprise-grade infrastructure, this advanced UPS system uses true online double-conversion topology to provide pure sine wave output with zero transfer time, ensuring uninterrupted, clean power delivery to servers, storage arrays, virtualized environments, datacenters, telecom gear, industrial automation systems, and critical medical devices.

Featuring a unity power factor (PF = 1.0), the OLS10KERT5U supplies full 10000W of usable power, supporting today’s high-performance computing workloads. The system offers exceptional efficiency with ECO Mode >98%, significantly lowering total cost of ownership through reduced energy loss and cooling requirements. Smart integration features like Smart Battery Management (SBM), adjustable charging current, and hot-swappable user-replaceable batteries make this UPS both intelligent and adaptable to your specific backup needs.

The OLS10KERT5U supports up to 10 Extended Battery Modules (EBMs – BPS240V9ART3U) for scalable runtime expansion and features auto-detection for plug-and-play integration. It includes a built-in Remote Cloud Card via Ethernet, and also supports optional SNMP/HTTP monitoring via RMCARD205, enabling real-time remote visibility and control from anywhere.

With comprehensive surge protection (1335 Joules), EMI/RFI filtration, manual/automatic bypass, and maintenance bypass switch, it ensures operational continuity, simplified maintenance, and superior protection across all operating conditions. The color rotatable LCD panel tilts up to 15 degrees for optimal visibility and control, providing detailed system status, logs, and alarm settings.

Available now at 7stores.au, the CyberPower OLS10KERT5U 10kVA UPS offers unmatched reliability, expandability, and intelligent monitoring—delivered by Australia’s trusted IT infrastructure partner.

Why Buy the CyberPower OLS10KERT5U UPS from 7stores.au?

• True Online Double Conversion UPS – Pure sine wave output for complete electrical isolation and maximum protection

• 10kVA / 10kW with Unity Power Factor – Full real power delivery to demanding equipment loads

• ECO Mode Efficiency >98% – Minimizes power loss and reduces energy costs

• Hot-Swappable, User-Replaceable Batteries – Ensures uninterrupted operation during maintenance

• Maintenance Bypass Switch Included – Enables live service without system downtime

• Supports Up to 10 Extended Battery Modules (EBMs) – Scalable runtime for long-duration backup

• Built-in Remote Cloud Card via Ethernet – Advanced cloud-based remote monitoring without additional modules

• SNMP/HTTP Remote Management Ready – Integrates with enterprise power management via optional RMCARD205

• Tiltable LCD Panel (15°) – Full control and visibility in any installation environment

• Advanced Surge and EMI/RFI Protection – 1335 Joules + filtering for robust electrical safety

• Backed by 7stores.au – Expert advice, local warranty support, and fast shipping Australia-wide

Product Specifications – CyberPower OLS10KERT5U Rack/Tower 10kVA UPS

General

• Model: OLS10KERT5U

• Topology: Online Double Conversion

• Form Factor: Rackmount / Tower Convertible

• Installed Rack Height: 5U

• Output Capacity: 10000VA / 10000W

• Power Factor: 1.0

• Generator Compatible: Yes

• Efficiency (ECO Mode): >98%

Input

• Nominal Voltage: 230V

• Voltage Range: 110 – 300V

• Adjustable Range (Load Dependent):

  • 110–144V @ 50% Load

  • 145–179V @ 75% Load

  • 180–300V @ 100% Load

• Input Frequency: 50–60Hz (Auto-sensing)

• Rated Input Current: 49.5A

• Input Power Factor: 0.99

• Input Connector: Hardwire Terminal Block

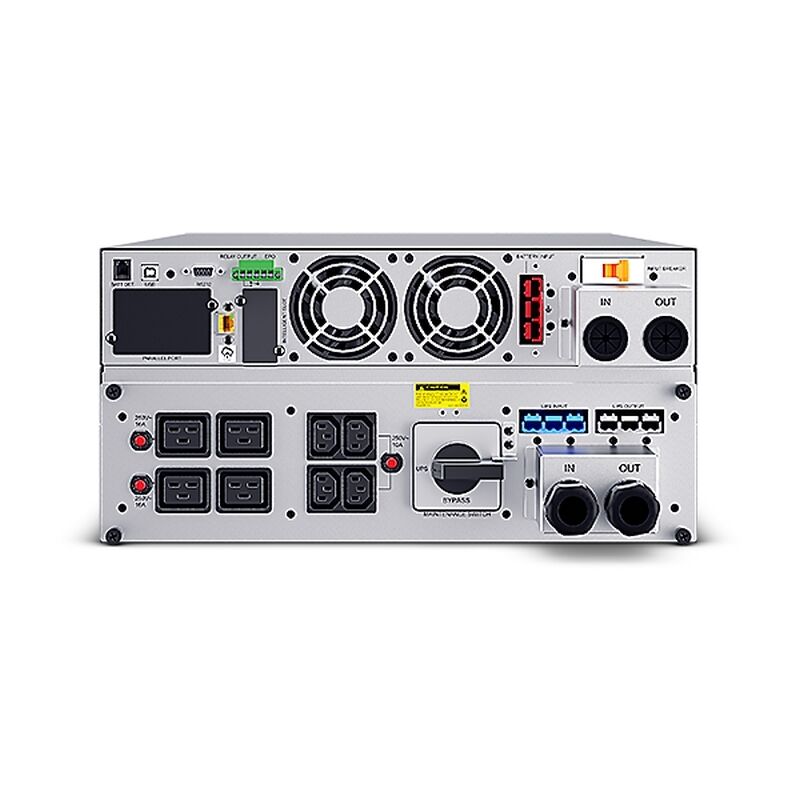

Output

• Waveform Output: Pure Sine Wave

• Frequency: 50 ±0.5% / 60 ±0.5% (Configurable)

• Outlet Count: 9

  • 1 × Hardwire Terminal Block

  • 4 × IEC C13

  • 4 × IEC C19

• Transfer Time: 0 ms

• Crest Factor: 3:1

• Harmonic Distortion:

  • Linear Load: ≤1.5%

  • Non-Linear Load: ≤3%

• Overload Protection – Line & Battery Mode:

  • 105–130% for 10 sec

  • 130% for 1.5 sec

• Overload Protection – Bypass Mode:

  • 110–120% for 30 min

  • 120–130% for 2 min

  • 130–150% for 15 sec

  • 150% immediate trip

• Internal Bypass: Manual & Automatic

• Maintenance Bypass: Included

Battery

• Smart Battery Management (SBM): Yes

• Start On Battery: Yes

• Battery Type: Sealed Lead-Acid

• User Replaceable: Yes

• Hot Swappable: Yes

• Recharge Time: 4 hours

• Max Charging Current: 4A (Adjustable: 1–4A)

• Runtime at Half Load: 11.2 minutes

• Runtime at Full Load: 2.9 minutes

• Extended Battery Module Support:

  • Model: BPS240V9ART3U

  • Quantity: Up to 10

  • Auto-Detection: Yes

Monitoring & Control

• Display: Color Rotatable LCD, 15° Tiltable

• LCD Info: Status, Faults, Logs, Load, Battery, Alarms

• USB Port: 1 × HID Compliant

• Serial Port: RS232

• Dry Contact (Relay): Yes

• SNMP/HTTP Monitoring: Yes (Optional RMCARD205)

• Built-in Remote Cloud Card: Yes (via Ethernet)

• EPO Port: Yes

Protection

• Surge Suppression: 1335 Joules

• EMI/RFI Filtration: Yes

• Audible Alarms:

  • Battery Mode

  • Low Battery

  • Overload

  • Overheat

  • Overcharge

  • UPS Fault

  • Replace Battery

Physical

• Construction: Metal

• Dimensions (WxHxD): 433 × 213.5 × 661 mm

• Weight: 80 kg

• Thermal Dissipation: 2047 BTU/hr

• Audible Noise: 62 dBA at 1 meter

• Rackmount Accessories:

  • Rail Kit

  • Rackmount Ears

  • External Maintenance Bypass PDU

Certifications

• CE

• RoHS

• Warranty: 2-Year Advanced Replacement

What's in the Box

• 1 × CyberPower OLS10KERT5U UPS

• 1 × External Maintenance Bypass PDU

• 1 × Rackmount Rail Kit

• 1 × Rackmount Ears

• 1 × Screw Kit

• 1 × USB Cable

• 1 × Power Cord

• 1 × Phone Line

• 1 × User Manual
