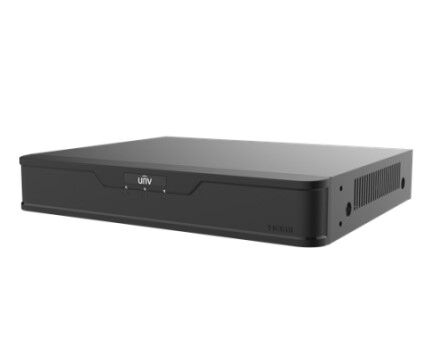

NVR301-08B-P8-IQ
Network Video Recorder

• Support Ultra 265/H.265/H.264 video formats
• 4/8/16 channel input
• Support mainstream cameras of ONVIF conformanceProfile S Profile G Profile T and RTSP protocols
• Support HDMI and VGA simultaneous output
• Up to 12 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

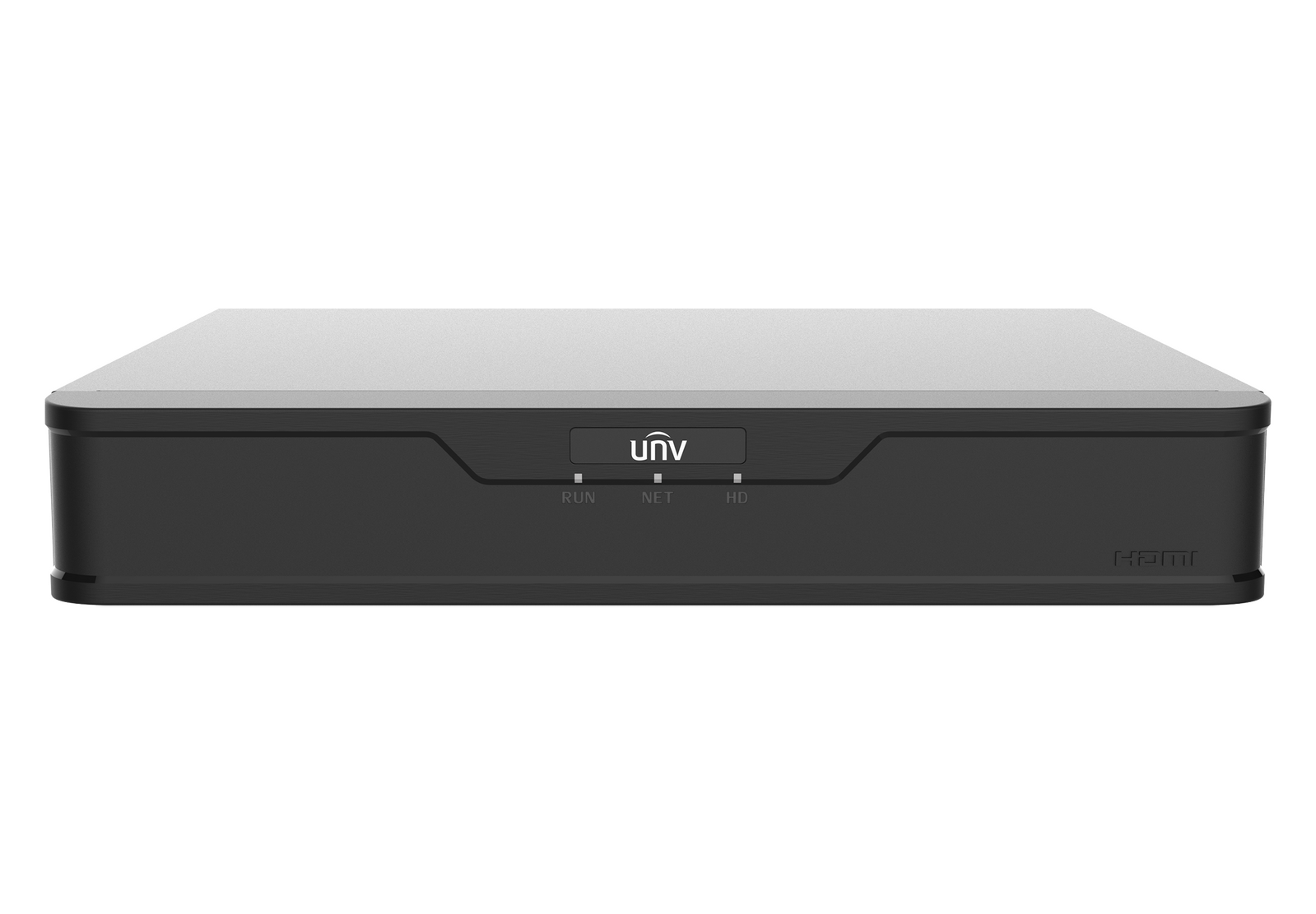

NVR301-04B-P4-IQ
1 HDD 4-ch 4 PoE 1U Network Video Recorder

• Support Ultra 265/H.265/H.264 video formats
• 4/8-channel input
• Plug & Play with 4/8 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformanceProfile S Profile G Profile T and RTSP protocols
• Support HDMI and VGA simultaneous output
• Up to 12 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

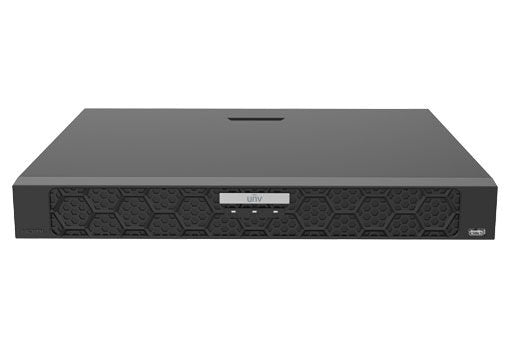

NVR502-16B-P16
Network Video Recorder

• Support Ultra 265/H.265/H.264 video formats
• 8/16/32-channel input
• Plug & Play with 8/16 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformanceProfile S Profile G Profile T and RTSP protocols
• Support 1-ch HDMI 1-ch VGA. HDMI up to 4K 3840x2160 resolution
• VGA and HDMI independent output
• Up to 16 Megapixels resolution recording
• 2 SATA HDD up to 10TB for each HDD
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Support Ultra 265/H.265/H.264 video formats

8/16-channel input

Third-party IP cameras supported with ONVIF conformance Profile S Profile G Profile C Profile Q Profile A Profile T

Support 1-ch HDMI 1-ch VGA HDMI at up to 4K3840x2160 resolution

HDMI and VGA simultaneous output

Up to 12 Megapixels resolution recording

2 SATA HDDs up to 8TB for each HDD

Plug & Play with up to 8/16 independent PoE network interfaces

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Fixed Dome Outdoor Wall Mount

• Application - Wall installation for IPC36XXL IPCD1XX and IPCT1XX series fixed dome Extra back outlet
• Dimensions - 126.7 × 126.4 × 228.4mm 4.99” × 4.98” × 8.99”
• Weight - 1kg 2.20lb
• Material - Aluminum Alloy

TR-JB07/WM03-F-IN
Fixed Dome Outdoor Wall Mount

• Application - Wall installation for IPC363X and IPC36XXS/E series fixed domeExtra back outlet
• Dimensions - Φ125mm125mm233mm 4.92” x4.92”x9.17”
• Weight - 0.98kg2.16lb
• Material - Aluminum alloy

TR-WM04-IN
4-inch Fixed Dome Indoor Wall Mount

• Application - Indoor wall installation for 4-inch fixed dome
• Dimensions - 208mmx125mmx125mm 8.2” x4.9” x4.9”
• Weight - 0.48kg1.1lb
• Material - Aluminum alloy

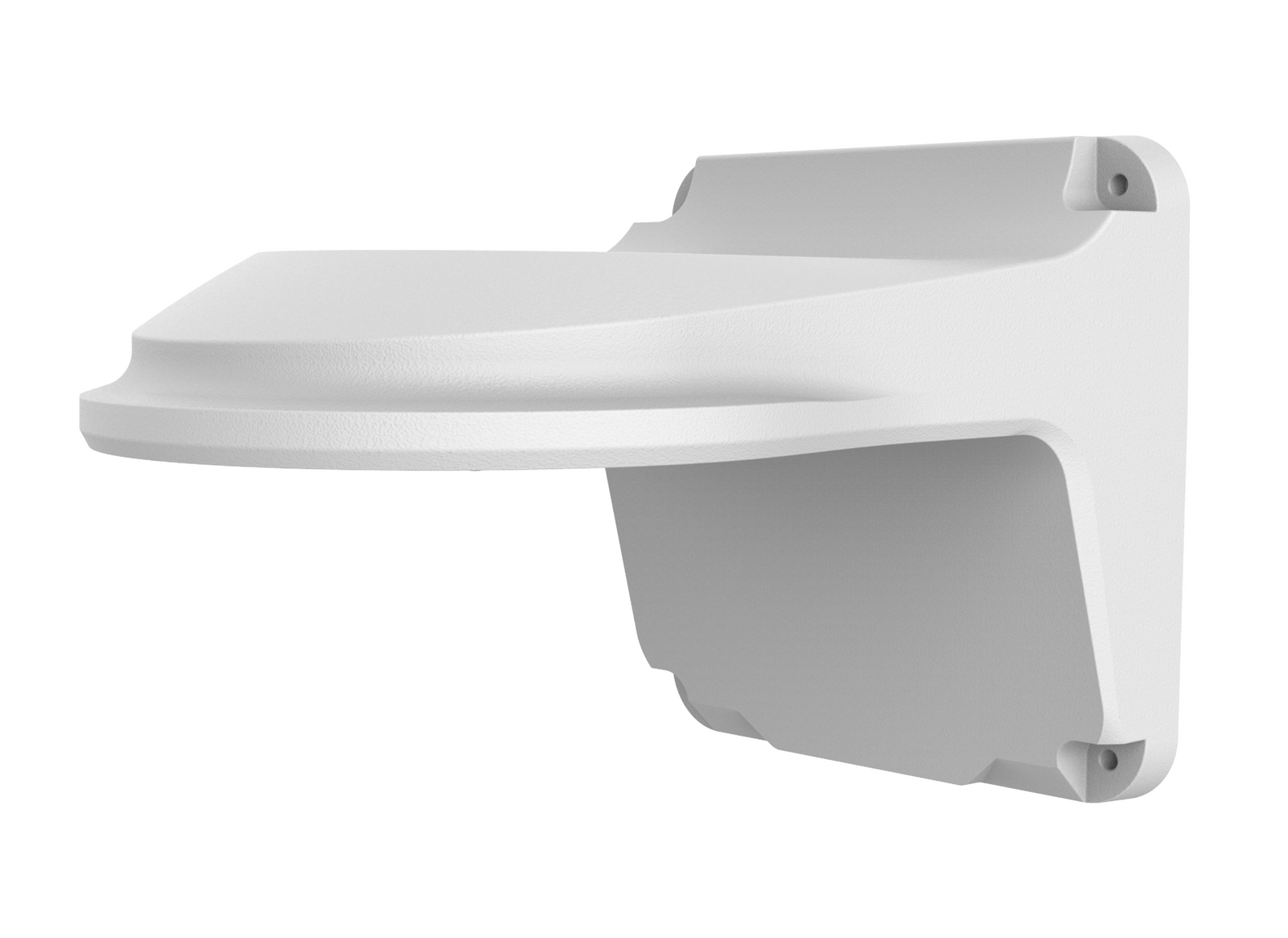

TR-WM03-D-IN
Wall Mounting Bracket for 32 Fix-dome&Mini Fix-dome&Plastic Turret Camera

• Application Wall installation for IPC32XS/E/L series
• Bracket Dimensions 126mmx127mmx183mm 4.96” x5” x7.20”
• Bracket Weight 0.52kg1.15lb
• Bracket Material Aluminum alloy

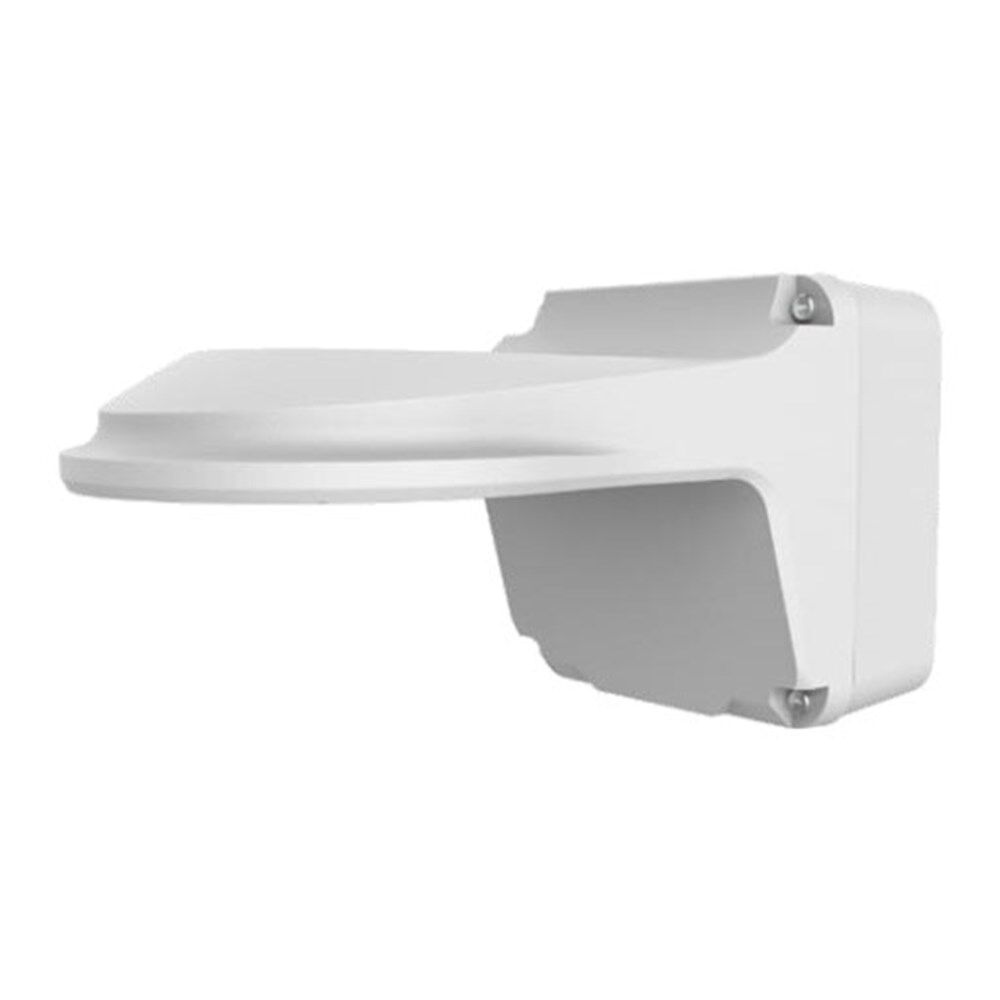

TR-WM03-C-IN
Fixed Dome Outdoor Wall Mount

• Application - Wall installation for fixed dome cameras
• Dimensions L×W×H - 188 x 126 x 126mm 7.4 x 5 x 5”
• Weight - 0.44kg 0.97lb
• Material - Aluminum Alloy

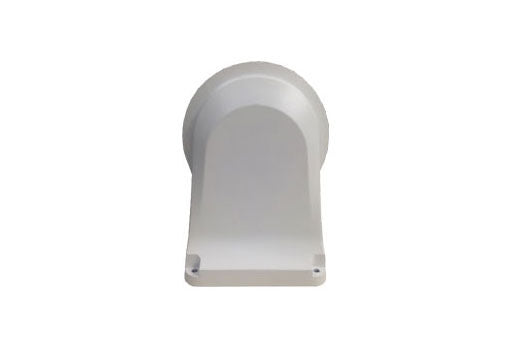

TR-WM03-B-IN

• 3-inch Fixed Dome Mount
• The Uniview interior L adapter is designed to install cameras from the same manufacturer for wall mounting. The camera is placed in a horizontal position thanks to its holder.
• The 188 mm x 126 mm x 126 mm and 440 g holders are designed for Uniview branded IPC322x 324x 361x and 8xx series products.
• Material Aluminum alloy.

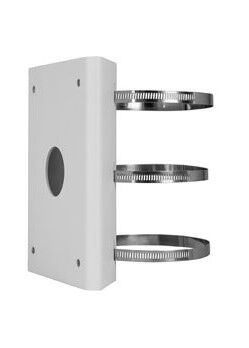

TR-UP08-B-IN
Pole Mount Adapter

• Application Indoor or outdoor pole installation for PTZ dome camera
• DimensionsL × W × H 215mmx172mmx65mm8.5” x 6.8”x 2.6”
• Embrace hoop diameter 67mm127mm2.6”5”
• Weight 0.55kg1.2lb
• Material Aluminium alloy

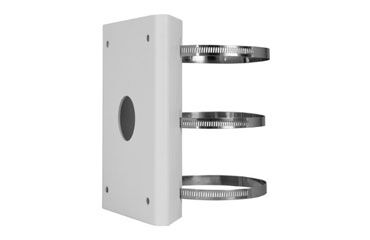

Pole Mount Adapter

• Application - Indoor or outdoor pole installation for PTZ dome camera
• Dimensions L × W × H - 215mmx175mmx60.0mm 8.5” x 6.9”x 2.4”
• Embrace hoop diameter - 67mm127mm 2.6”5”
• Weight - 1.47kg3.2lb
• Material - Steel

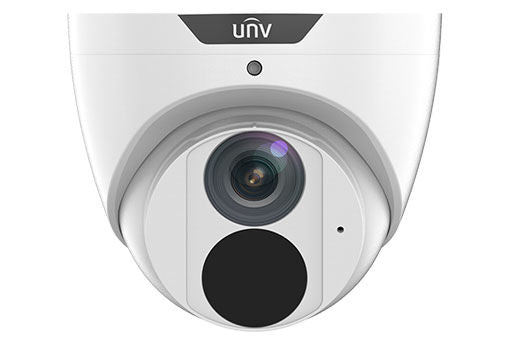

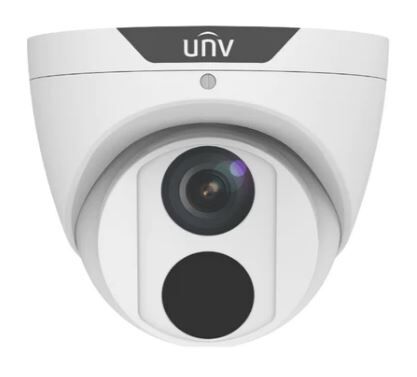

IPC3616SB-ADF28

UniView IPC3616SB-ADF28KM-I0 Prime-series LightHunter AI H265 6MP PoE IP IR 30m 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Audio Mic. 5MP HD Intelligent LightHunter IR Fixed Eyeball Network Camera.

• High quality image with 5MP 1/2.7CMOS sensor
• 5MP 28801620 30/25fps; 4MP 25601440 30/25fps; 3MP 23041296 30/25fps; 2MP 19201080 30/25fps
• Ultra 265 H.265 H.264 MJPEG
• Intelligent perimeter protection include cross line intrusion enter area leave area detection
• Based on target classification smart intrusion prevention significantly reduce false alarm caused by leaves birds and lights etc. accurately focus on human and motor vehicle and non-motor vehicle
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 916 Corridor Mode
• Built-in Mic
• Smart IR up to 30m 98ft IR distance
• Supports 256 G Micro SD card
• IP67 protection

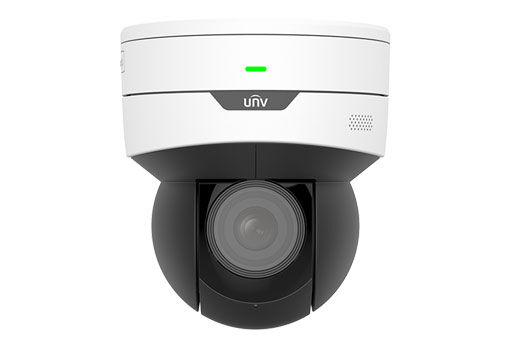

• High quality image with 5MP1/2.7’’ CMOS sensor
• 2880162030fps in the main stream 169 aspect ratio
• Ultra 265 H.265 H.264 MJPEG
• 5X optical zoom allows for closer viewing of subjects
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR Wide Dynamic Range
• Wi-Fi connection and easy installation
• Built-in Mic & Speaker support two-way audio
• Alarm 1 in and 1 out
• Smart IR up to 30m 98 ft IR distance

Optics

• Day/night functionality
• Lowlight surveillance
• 2D/3D DNR Digital Noise Reduction
• Up to 120 dB WDRWide Dynamic Range

Compression

• Triple streams
• ROI Region of Interest
• 916 corridor mode
• Customized OSD

Network

• ONVIF Conformance

Structure

• AC 24V /DC 12 V/PoE power supply
• Wide temperature range -20°C to 60°C -4°F to 140°F
• Wide voltage range of ±10
• 6 KV surge protection designed for network interface

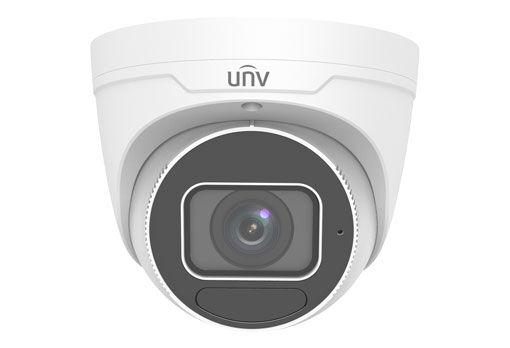

IPC3635SB-ADZK-I0
5MP HD Intelligent LightHunter IR VF Eyeball Network Camera

• High quality image with 5MP 1/2.7CMOS sensor
• 5MP 28801620 30/25fps; 4MP 25601440 30/25fps; 3MP 23041296 30/25fps; 2MP 19201080 30/25fps
• Ultra 265 H.265 H.264 MJPEG
• Intelligent perimeter protection include cross line intrusion enter area leave area detection
• Based on target classification smart intrusion prevention significantly reduce false alarm caused by leaves birds and lights etc. accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 916 Corridor Mode
• Built-in Mic
• Smart IR up to 40m 131ft IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant and IP67 protection

• High quality image with 8MP 1/2.8CMOS sensor
• 8MP 3840216020fps; 5MP 3072172830/25fps; 4MP 2560144030/25fps; 2MP 19201080 30/25fps
• Ultra 265 H.265 H.264 MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 916 Corridor Mode
• Built-in Mic
• Alarm1 in/1 out Audio 1 in/1 out
• Smart IR up to 40m 131ft IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

IPC3235SB-ADZK-I0
5MP HD Intelligent LightHunter IR VF Dome Network Camera

• High quality image with 5MP 1/2.7CMOS sensor
• 5MP 28801620 30/25fps; 4MP 25601440 30/25fps; 3MP 23041296 30/25fps; 2MP 19201080 30/25fps
• Ultra 265 H.265 H.264 MJPEG
• Intelligent perimeter protection include cross line intrusion enter area leave area detection
• Based on target classification smart intrusion prevention significantly reduce false alarm caused by leaves birds and lights etc. accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 916 Corridor Mode
• Built-in Mic
• Alarm1 in/1 out Audio 1 in/1 out
• Smart IR up to 40m 131ft IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant and IP67 protection

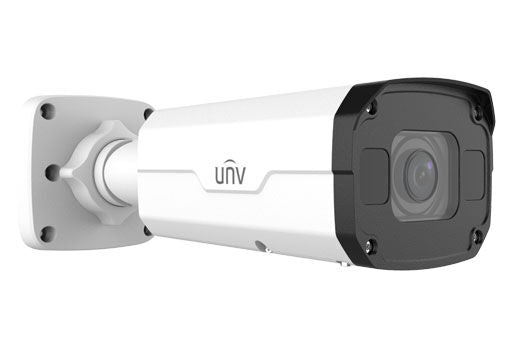

IPC2328SB-DZK-I0
8MP HD Intelligent LighterHunter IR VF Bullet Network Camera

• High quality image with 8MP 1/2.8CMOS sensor
• 8MP 3840216020fps; 5MP 3072172830/25fps; 4MP 2560144030/25fps; 2MP 19201080 30/25fps
• Ultra 265 H.265 H.264 MJPEG
• Smart intrusion prevention include cross line intrusion enter area leave area detection
• Based on target classification smart intrusion prevention significantly reduce false alarm caused by leaves birds and lights etc. accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 916 Corridor Mode
• Alarm1 in/1 out Audio 1 in/1 out
• Smart IR up to 50m 164ft IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

IPC2325SB-DZK-I0
5MP HD Intelligent LightHunter IR VF Bullet Network Camera

• High quality image with 5MP 1/2.7CMOS sensor
• 5MP 28801620 30/25fps; 4MP 25601440 30/25fps; 3MP 23041296 30/25fps; 2MP 19201080 30/25fps
• Ultra 265 H.265 H.264 MJPEG
• Smart intrusion prevention include cross line intrusion enter area leave area detection
• Based on target classification smart intrusion prevention significantly reduce false alarm caused by leaves birds and lights etc. accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 916 Corridor Mode
• Alarm1 in/1 out Audio 1 in/1 out
• Smart IR up to 50m 164ft IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant and IP67 protection
• Support PoE power supply

TR-JB06-A-IN-SE
Network Video Recorder

• Application Outdoor or indoor cable junction box for IPC23XX OEM seriesExtra back outlet
• Bracket Dimensions Φ104mm104mm55.5mm 4.09” x4.09”x2.19”
• Bracket Weight 0.42kg0.93lb
• Bracket Material Aluminum alloy

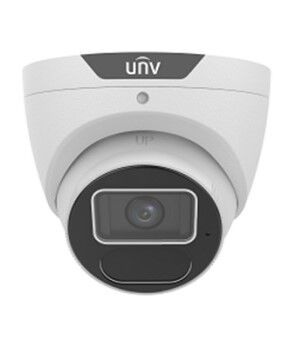

IPC3616SS-ADF28K
6MP HD Intelligent LightHunter IR Fixed Eyeball Network Cameraonly for ANZ

• High quality image with 6MP 1/2.7CMOS sensor
• 6MP 30722048 20/25defaultfps; 4MP 25601440 30/25fps; 3MP 23041296 30/25fps; 2MP 19201080 30/25fps
• Ultra 265 H.265 H.264 MJPEG
• Intelligent perimeter protection include cross line intrusion enter area leave area detection
• Based on target classification smart intrusion prevention significantly reduce false alarm caused by leaves birds and lights etc. accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Auto Scene Match ASM&65288;Only WDR&65289;
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 130dB true WDR technology enables clear image in strong light scene
• Support 916 Corridor Mode
• Built-in Mic
• Smart IR up to 40m 131ft IR distance
• Supports 256 G Micro SD card
• IP67 protection

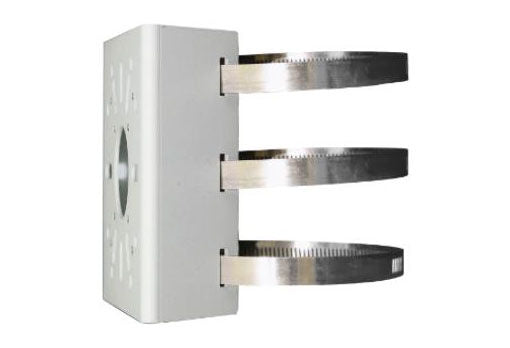

TR-UP06-IN
Pole Mount Adapter

• Application - Outdoor pole or rail installation
• Dimensions L × W × H - 136mmx127mmx62.4mm 5.4”x5.0”x2.5”
• Embrace hoop diameter - 67mm127mm 2.6”5”
• Weight - 0.75kg1.65lb
• Material - Galvanized sheet

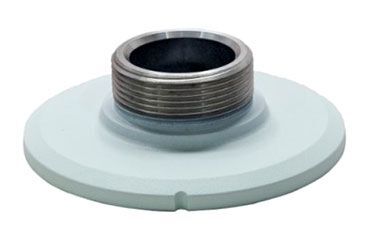

TR-UF45-D-IN
PTZ Dome Indoor Pendant Mount

• Application - Indoor PTZ dome pendant installation
• Dimensions - Φ116mmx30.5mm Φ4.6” x1.2”
• Weight - 0.3kg0.66lb
• Material - Aluminum alloy

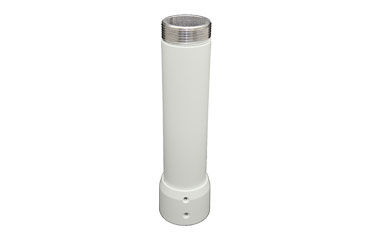

TR-SE45-IN
PTZ Dome Pendant Mount 200mm

• Application - Indoor or outdoor PTZ dome pendant installation
• Dimensions - Φ59mmx226mmΦ2.3”x8.9”
• Weight - 0.42kg0.9lb
• Material - Aluminum alloy
