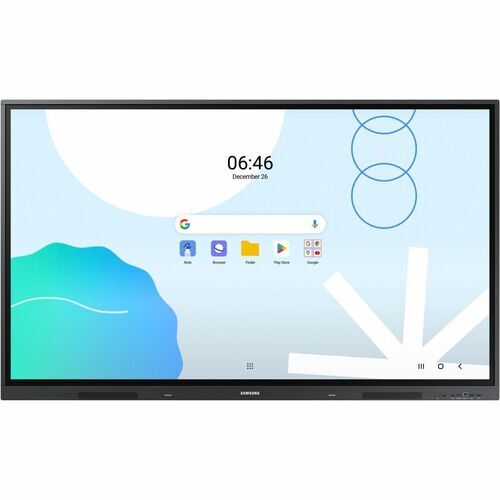

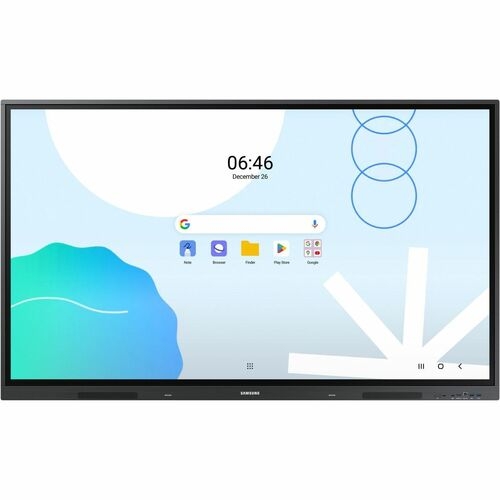

Samsung WA86D 86″ 4K UHD Interactive Collaboration Display

Android 13 EDLA Touchscreen

The Samsung WA86D 86-inch 4K UHD Interactive Collaboration Display is a professional-grade touchscreen eboard engineered for modern classrooms, training rooms, and collaborative workspaces. Powered by Android 13 with EDLA certification, it delivers a familiar, secure, and app-rich environment with Google Play, YouTube, and Chrome access. Featuring 20-point Infrared (IrDA) touch, 4K UHD clarity, front-facing 30W speakers, and advanced eye-care protection, the WA86D transforms lessons and meetings into immersive, multi-screen, wireless experiences—available from 7stores.au.

The Samsung WA86D WAD Series Interactive Display is purpose-built to unlock next-generation collaboration by combining enterprise-ready hardware with a user-friendly Android™ ecosystem. Its 86-inch IPS 4K UHD panel (3840 × 2160) ensures crisp text, lifelike visuals, and wide 178° viewing angles, making it ideal for large rooms where clarity and engagement matter. The Infrared (IrDA) touchscreen supports up to 20 simultaneous touch points, enabling natural handwriting, annotation, and group interaction with low latency and high precision.

Features

• Android™ 13 OS with EDLA Certification
• Google Play, YouTube & Chrome ready
• Multi-Screen & Multi-Window Mode
• Cross-platform wireless sharing
• 20-point Infrared touchscreen
• TÜV-certified Eye Care (anti-glare, low blue light)
• Front-facing 2Ch 15W speakers (30W total)

Technical Specifications

Display & Graphics

• Screen Size: 86″
• Resolution: 3840 × 2160 (4K UHD, 2160p)
• Panel Type: LCD, IPS Technology
• Brightness: 400 cd/m²
• Contrast Ratio: 1,200:1
• Refresh Rate: 60 Hz
• Response Time: 8 ms
• Viewing Angle: 178° (H) / 178° (V)

Touchscreen

• Technology: Infrared (IrDA)
• Touch Points: Up to 20

System & Software

• Operating System: Android™ 13
• EDLA Certified: Yes
• Internal Storage: 64 GB

Audio

• Speakers: 2 × Front-facing
• Output Power: 30 W RMS (2 × 15 W)

Connectivity

• HDMI Inputs: 3
• USB Ports: 5 (1 × USB 2.0, 4 × USB 3.0)
• Ethernet (RJ-45): Yes
• Bluetooth: Yes
• Wireless LAN: Yes
• Audio In/Out: Yes
• Serial: Yes

Power

• Input Voltage: 120–230 V AC
• Power Consumption: 486 W
• Standby Power: 500 mW
• Physical & Mounting
• Dimensions (W × H × D): 1957 × 1160 × 99 mm
• Weight: Approx. 56.5 kg
• VESA Mount: 800 × 600
• Colour: Space Gray / Black

General

• Product Model: WA86D
• Series: WAD
• Manufacturer Part Number: LH86WADWLGCXXY
• Product Type: Interactive Collaboration Display
