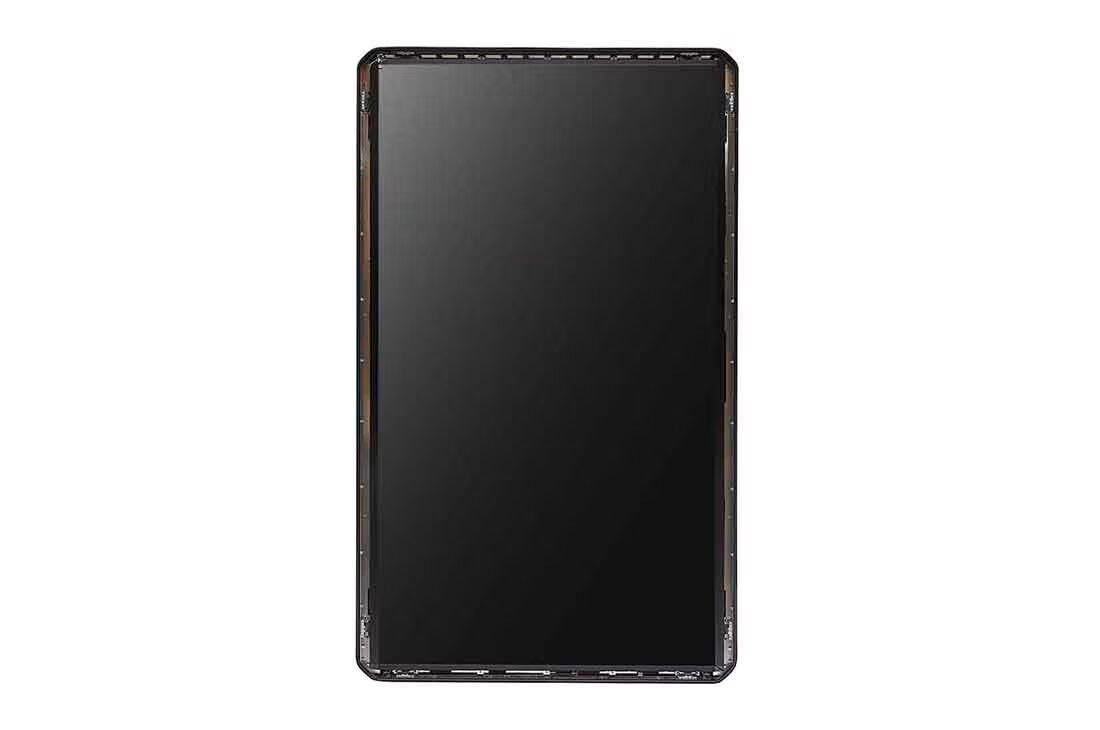

LG 86XF3FK 86” 4K Open Frame Outdoor Digital Signage Panel

3300 Nits | 24/7 | webOS 6.0

The LG 86XF3FK 86” 4K Open Frame Digital Signage Panel is an ultra-high brightness, commercial-grade outdoor-ready display engineered for demanding DOOH (Digital Out of Home) applications such as bus stops, roadside advertising, retail storefronts, drive-thru environments, and high-traffic public spaces. Designed to deliver powerful visual impact in direct sunlight, this premium signage solution combines a massive 86-inch UHD 4K (3840 x 2160) screen with an incredible 3,300 nits brightness (typ.) and true 24/7 operation, ensuring your advertising content stays sharp, readable, and vibrant around the clock.

Built for long-term performance in harsh outdoor environments, the LG 86XF3FK integrates advanced protection features including Conformal Coating to help shield internal boards against humidity and water vapour, plus intelligent Smart Brightness Control and Smart Brightness Compensation to maintain consistent screen performance over time. It also features wide IPS viewing angles (178° x 178°) and 10-bit colour depth (1.07 billion colours) to ensure your visual messaging looks crisp and professional from every direction, even in large open public areas.

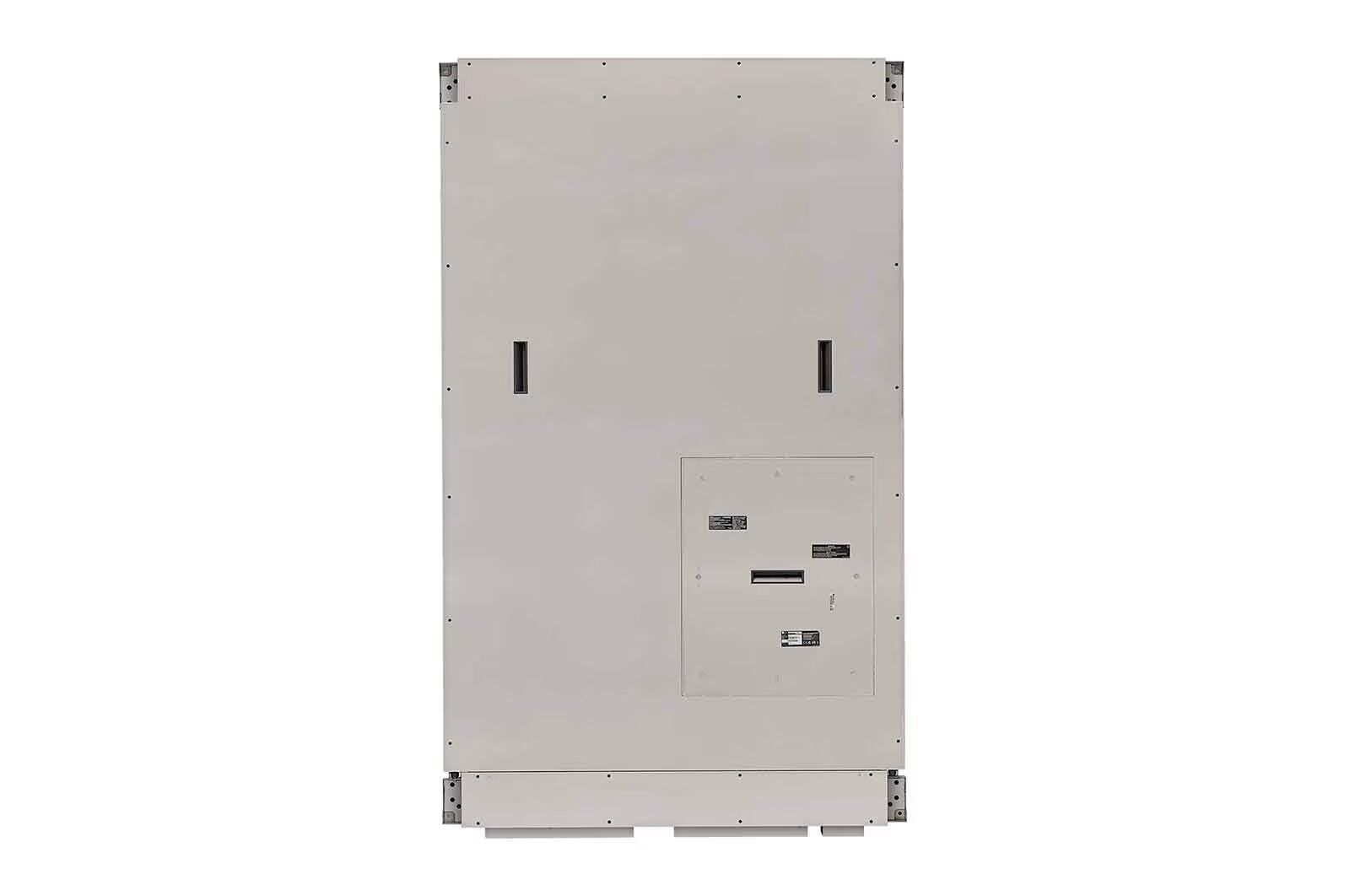

A key advantage of the LG 86XF3FK is its open-frame design, giving system integrators, AV installers, and solution providers the flexibility to custom-build a housing to suit branding, architectural requirements, or enclosure protection standards. This makes it an ideal choice for custom outdoor signage builds where a standard finished chassis isn’t suitable. The display also supports temperature-tested outdoor operation, making it a reliable platform for long-term commercial deployments when installed correctly inside a casing according to the official guide.

Powered by LG webOS 6.0 Smart Signage Platform, the display delivers smooth multitasking, built-in signage control features, and a strong commercial toolset including USB Plug & Play, failover support, local content scheduling, and web-based remote monitoring via Control Manager. For businesses managing multiple locations, the LG 86XF3FK supports compatibility with LG SuperSign CMS, SuperSign Control/Control+, and LG ConnectedCare, allowing centralised content distribution and professional fleet management for multi-site rollouts.

Features

• 86” UHD 4K open-frame outdoor signage panel
• 3,300 nits (typ.) high brightness
• 24/7 commercial runtime
• LG webOS 6.0 smart signage platform

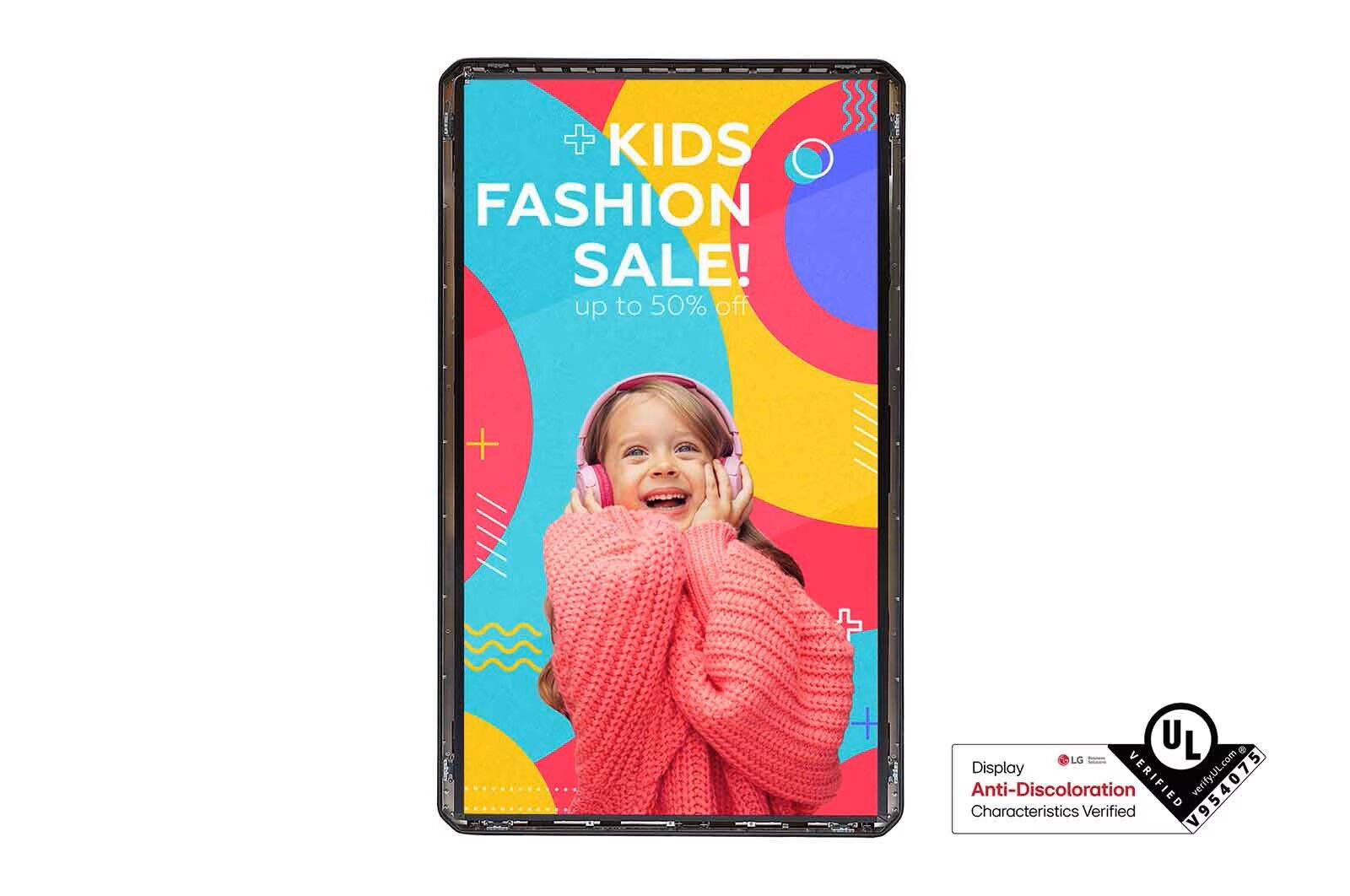

• UL verified anti-discoloration technology
• Smart brightness control + compensation
• IPS panel with 178° viewing angles
• 10-bit colour depth (1.07B colours)
• Conformal coating for board protection
• Web monitoring via Control Manager

Specifications

• Model: LG 86XF3FK
• Display Size: 86 inch
• Panel Technology: IPS, RGB
• Resolution: 3840 x 2160 (UHD 4K)
• Brightness (Typ.): 3,300 nits
• Contrast Ratio (Typ.): 1,100:1
• Dynamic Contrast Ratio: 500,000:1
• Colour Depth: 10-bit, 1.07 Billion colours
• Viewing Angle: 178° (H) x 178° (V)
• Response Time: 8ms (G to G)
• Surface Treatment (Haze): 3%
• Operation Hours: 24/7
• Orientation Support: Portrait Yes / Landscape No
• QWP (Quarter Wave Plate): Yes
• Connectivity (Input / Output)
• Inputs: HDMI (HDCP 2.2), DisplayPort (HDCP 1.4), RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type-A
• Outputs: RS-232C Out, RJ45 (LAN)

Performance / Signage Features

• Operating System: LG webOS 6.0
• Internal Memory: 8GB
• Embedded CMS: Local Contents Scheduling, Group Manager
• USB Plug & Play: Yes
• Failover: Supported
• Control & Sync Modes: RS-232C Sync, Local Network Sync, Backlight Sync
• Monitoring: Web Monitoring via Control Manager
• Network: Wake on LAN, Network Ready
• Other Commercial Tools: SNMP, ISM Method, Auto Set ID, Status Mailing, Brightness Compensation

Environmental & Reliability

• Conformal Coating: Yes
• Direct Sun Operation Temp: 0°C to 40°C
• No Direct Sun Operation Temp: 0°C to 50°C
• Humidity Range: 10% to 80%
• Special Protection: Power Protection (Circuit Breaker)

Power

• Power Supply: AC 100–240V, 50/60Hz
• Power Consumption (Typ./Max): 1450W / 1800W
• Power Type: Built-in Power

Dimensions & Weight

• Dimensions (W x H x D): 1225 x 2034.3 x 179.48 mm
• Weight (Head): 140 kg
• Packed Weight: 156.7 kg

Audio

• Built-in Speakers: No

Warranty

• Warranty: 3 Year Limited (Optional up to 5 years with LG ExtendedCare)
