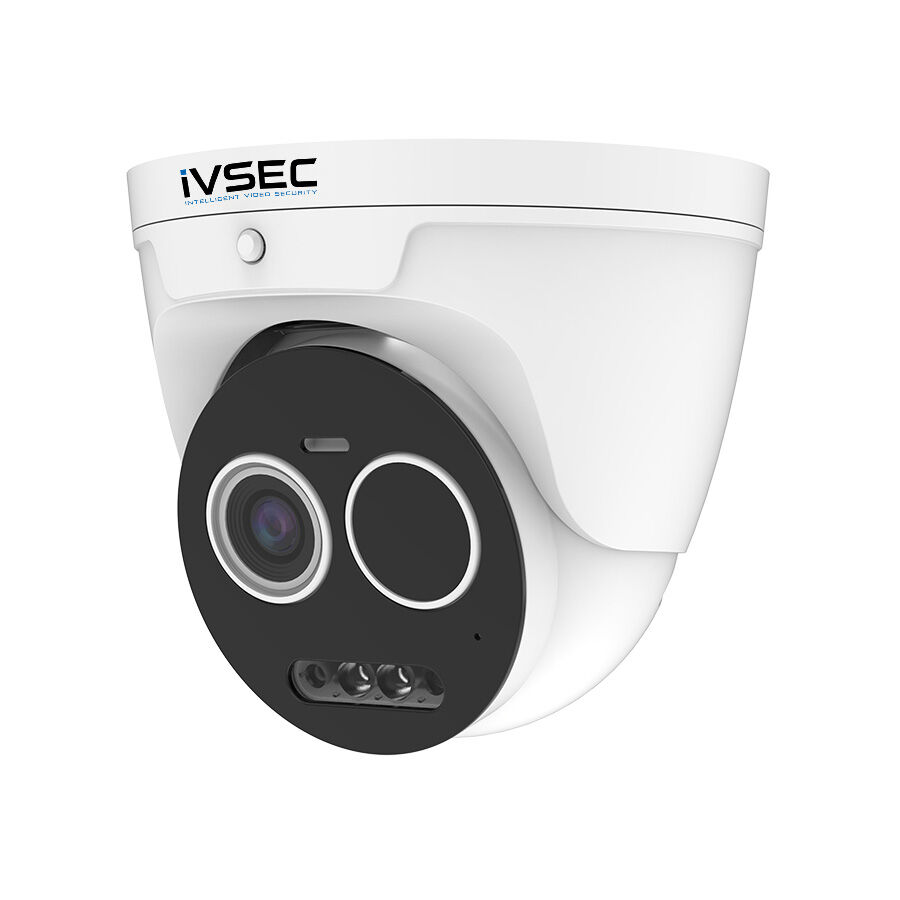

IVSEC NC620ADX 5MP Thermal Bi-Spectrum Turret IP Camera with Advanced Analytics

The IVSEC NC620ADX Thermal Turret IP Camera is a next-generation surveillance solution designed for organizations, enterprises, and high-security environments requiring advanced monitoring and superior threat detection. Engineered with a bi-spectrum dual-lens design, it combines 5MP colour imaging and thermal vision to deliver comprehensive 24/7 surveillance coverage in environments where traditional cameras may fail.

Unlike conventional cameras, the NC620ADX leverages thermal imaging technology with a 12µm pixel pitch sensor and a spectral range of 8–14μm, enabling precise detection of people, vehicles, and heat signatures in total darkness, heavy fog, smoke, or challenging weather conditions. Paired with its 5MP progressive CMOS colour sensor, users benefit from both detailed visual evidence and critical thermal detection, ensuring no event goes unnoticed.

Advanced Bi-Spectrum Imaging

The dual-lens system offers 5MP colour resolution (2592 × 1944) at 25 FPS, combined with a 1MP thermal channel (1280 × 720). This fusion provides side-by-side or blended views, allowing security operators to verify heat-based alerts with matching high-resolution colour imagery. Its 3.2 mm fixed lens delivers an 81° field of view (colour) and 56° (thermal), offering optimal coverage for both general surveillance and thermal detection.

Intelligent Video Analytics (IVS)

The NC620ADX excels with AI-powered intelligent video analytics, transforming it from a passive camera into a proactive security tool. It supports a wide range of IVS features, including:

• Perimeter intrusion detection

• Line crossing detection

• Face detection

• Human and vehicle recognition

• License plate detection (LPR)

• Crowd density analysis & queue monitoring

• Heat maps for traffic flow optimization

• Rare sound detection & video tampering alerts

• Fire detection & temperature measurement

These advanced capabilities allow businesses to reduce false alarms, improve situational awareness, and automate surveillance workflows for mission-critical security operations.

Built for Harsh Environments

The NC620ADX is built with IP67 weatherproof protection and vandal-resistant housing, making it ideal for outdoor deployment in extreme conditions. It operates reliably from -30°C to +60°C, ensuring performance in both sub-zero cold and scorching heat. With red/blue/white warning LEDs and 30m IR night vision, the camera provides both deterrence and reliable monitoring in all conditions.

Efficient Storage & Connectivity

With support for H.265+ compression, storage and bandwidth use are drastically reduced without compromising quality. The camera is fully ONVIF compliant, supporting Profile S/G/T for seamless integration with leading VMS platforms. Power over Ethernet (PoE) ensures a single-cable installation for power and data, simplifying deployment in complex infrastructures. It also supports edge recording via microSD card, ensuring redundancy even if network connections fail.

Why Buy from 7stores.au?

At 7stores.au, we provide enterprise-grade surveillance solutions trusted by businesses and government organizations across Australia. The IVSEC NC620ADX represents the pinnacle of modern surveillance technology, combining thermal detection, AI analytics, vandal-proof durability, and bi-spectrum video fusion. Backed by a 3-year warranty, professional-grade accessories, and dedicated support from 7stores.au, it is the ultimate choice for businesses seeking next-level security assurance.

Specifications

• Camera Type: Thermal + Colour (Bi-Spectrum)

• Image Sensor: 1/2.8″ Progressive CMOS (Colour), Thermal sensor with 12μm pixel pitch

• Resolution: 5MP (2592 × 1944, Colour), 1MP (1280 × 720, Thermal)

• Frame Rate: 25 FPS

• Lens: 3.2 mm fixed, 81° FOV (Colour) / 56° FOV (Thermal)

• Thermal Sensitivity: ≤40mk @ 25°C, F1.0

• Thermal Reflective Temp: -20°C to 150°C

• Colour Palettes: Supported

• IR Night Vision: Up to 30m

• LEDs: Red, Blue, White

• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG

• Smart Video Analytics (IVS): Face detection, vehicle/human detection, intrusion, line crossing, LPR, fire detection, temperature measurement, heat maps, queue monitoring, sound detection

• Image Enhancements: Flip, brightness, contrast, sharpness, saturation, white balance, WDR, 3D noise reduction, defog

• Audio: No streaming (Audio I/O supported)

• Recording: Edge recording via microSD/SDHC card

• Streams: 3 (Colour) / 2 (Thermal)

• Connectivity: Ethernet (10/100 Base-T), PoE IEEE 802.3at, DC12V

• Consumption: <14W

• Build: IP67 weatherproof, vandal resistant

• Operating Environment: -30°C ~ +60°C, ≤90% RH

• Dimensions: 127 × 136 × 136 mm

• Net Weight: 0.80 kg

• Warranty: 3 Years
