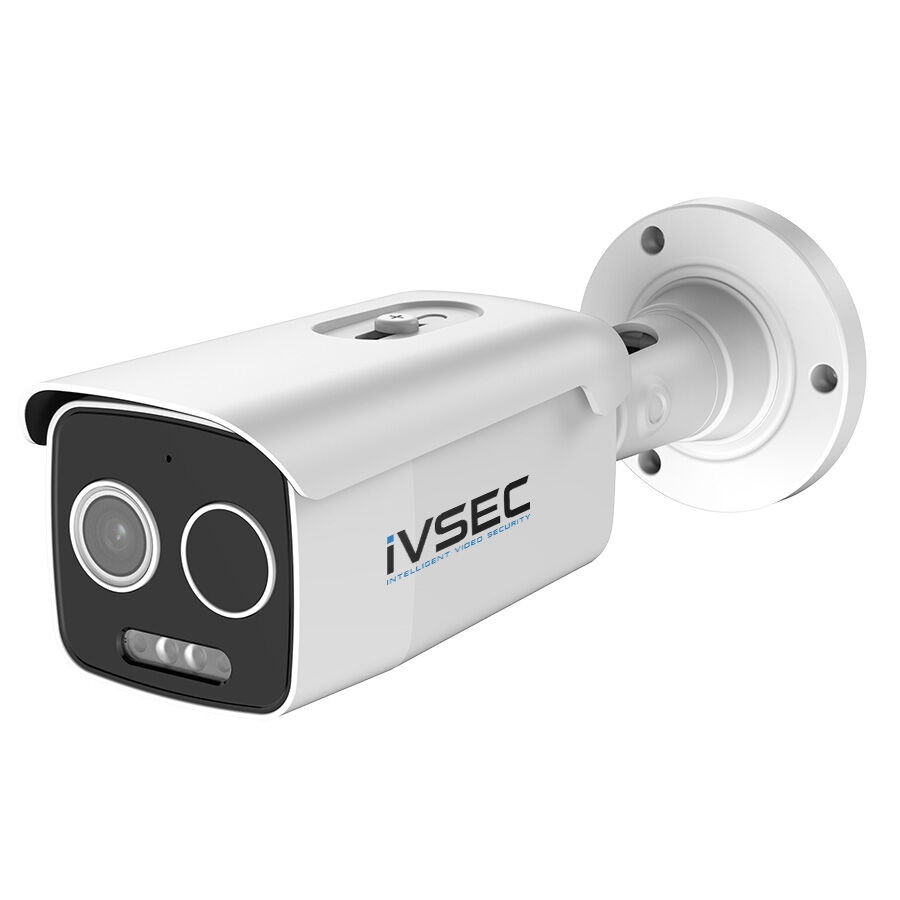

IVSEC NC630ADX Thermal Bullet IP Camera

5MP Bi-Spectrum, 3.2mm Lens, Advanced Detection

The IVSEC NC630ADX Thermal Bullet IP Camera is an advanced bi-spectrum surveillance solution engineered to deliver unmatched performance in demanding security environments. By combining 5MP full-colour imaging with thermal detection technology, this cutting-edge camera ensures comprehensive monitoring both day and night, even in extreme lighting or weather conditions.

Designed with a 3.2mm fixed lens and powered by a 1/2.8″ Progressive CMOS sensor, the NC630ADX provides crystal-clear 5MP (2592 × 1944) video for colour imaging and 1MP (1280 × 720) thermal video for precise heat mapping and detection. Its bi-spectrum design overlays thermal and optical feeds, offering security operators an enhanced, layered perspective that captures every possible threat scenario.

With a thermal spectral range of 8–14μm, a thermal sensitivity of ≤40mk at 25°C, and advanced thermal reflective temperature monitoring from -20°C to 150°C, this camera excels in industrial sites, transportation hubs, energy facilities, warehouses, and perimeter protection. Combined with multiple colour palettes for thermal imaging, it provides flexible monitoring options tailored to diverse surveillance needs.

The NC630ADX is equipped with advanced intelligent video analytics (IVS), transforming standard video into proactive threat intelligence. Features include face detection, vehicle and human detection, intrusion alerts, line crossing detection, license plate recognition, fire detection, temperature measurement, and rare sound detection. This enables businesses to reduce false alarms, improve situational awareness, and respond instantly to real incidents.

Engineered for reliability, the NC630ADX comes with an IP67 weatherproof rating and vandal-resistant housing, ensuring consistent operation even in the harshest conditions. Night-time surveillance is supported by 30m IR illumination and red/blue warning LEDs, ensuring full visibility and deterrence.

Installation is simple with Power over Ethernet (PoE+), which combines data and power into a single cable, and edge recording support via microSD cards. The camera integrates seamlessly with ONVIF-compliant CMS/VMS software, supports Dropbox cloud storage, and offers multilingual interface support, making it highly adaptable for global deployments.

Available at 7stores.au, the IVSEC NC630ADX is the ultimate choice for critical infrastructure protection, enterprise-grade surveillance, and professional monitoring applications—backed by a 3-Year Warranty for peace of mind.

Why Buy the IVSEC NC630ADX?

• Bi-Spectrum Imaging – Combines thermal and optical video feeds for enhanced situational awareness.

• High-Resolution Clarity – 5MP colour imaging and 1MP thermal output for versatile monitoring.

• Thermal Detection Technology – 8–14μm spectral range, ≤40mk sensitivity, and temperature detection from -20°C to 150°C.

• Advanced IVS Analytics – Includes fire detection, temperature measurement, face recognition, human/vehicle detection, and license plate recognition.

• Rugged & Weatherproof – IP67-rated and vandal-resistant for outdoor use.

• Night Vision & LED Deterrence – 30m IR distance with red/blue strobing lights.

• Flexible Recording – microSD edge storage, cloud integration via Dropbox, and 3-stream encoding.

• Easy Deployment – PoE+ supported, reducing cabling complexity.

• Industrial-Grade Reliability – Built for harsh environments with extended operating temperature range.

• Trusted Support – Available from 7stores.au with a 3-Year Warranty.

Specifications

• Camera Type: Thermal Bullet IP Camera

• Image Sensor: 1/2.8″ Progressive CMOS

• Resolution (Colour): 5MP (2592 × 1944)

• Resolution (Thermal): 1MP (1280 × 720)

• Frames per Second: 25fps

• Lens: 3.2mm fixed

• Pixel Pitch (Thermal): 12μm

• Spectral Range (Thermal): 8–14μm

• Thermal Sensitivity: ≤40mk @ 25°C, F1.0

• Thermal Temperature Range: -20°C to 150°C

• Thermal Colour Palettes: Yes

• IR Distance: Up to 30m

• LEDs: Red, Blue, White

• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG

• ONVIF Support: Profiles S/G/T (firmware-dependent), HTTP API

• IVS Analytics: Face recognition, human & vehicle detection, perimeter intrusion, line crossing, cross counting, heat map, crowd density, queue length, license plate detection, rare sound detection, video tampering, fire detection, temperature measurement

• Audio: Not supported

• Storage: microSD/SDHC edge recording, Dropbox cloud support

• Streams: 3 streams (colour), 2 streams (thermal)

• Network Protocols: TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPnP, SMTP, P2P

• Languages Supported: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish

• Ethernet: 10/100 Base-T

• PoE: IEEE 802.3at

• Power Supply: PoE+, DC12V

• Power Consumption: <14W

• Connectors: RJ-45, DC Power Input, Audio In/Out, Alarm I/O *1, Reset Button, SD card slot

• Operating Environment: -30°C to +60°C (-22°F to +149°F), ≤90% RH

• Durability: IP67 weatherproof, vandal-resistant

• Dimensions (H × W × L): 301 × 108 × 108 mm

• Weight (Net/Gross): 0.80kg / 0.50kg

• Packaging Dimensions: 330 × 150 × 150 mm

• In the Box: Free software (FTP), quick start guide, installation template, mounting screws/plugs

• Warranty: 3-Year Warranty
