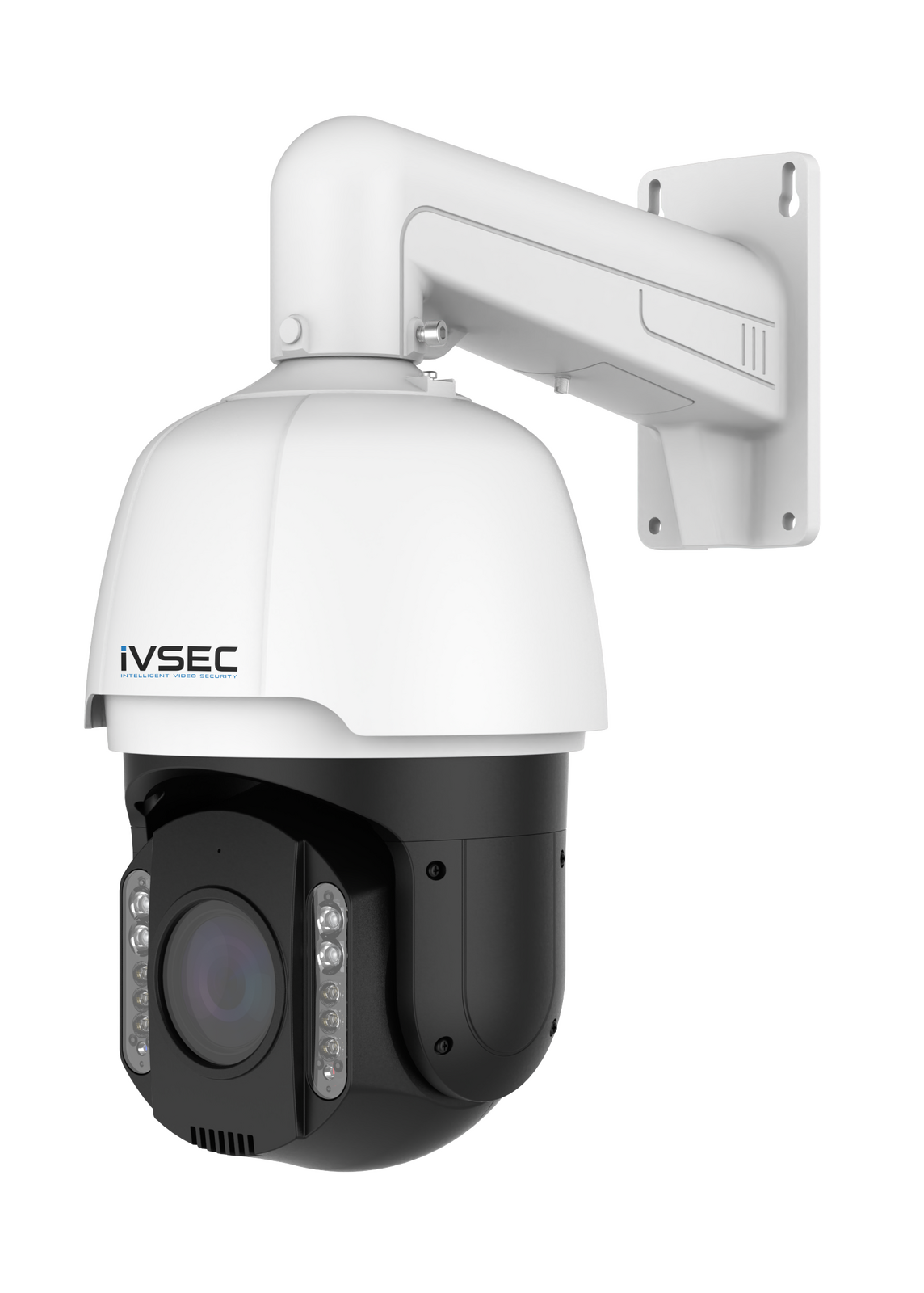

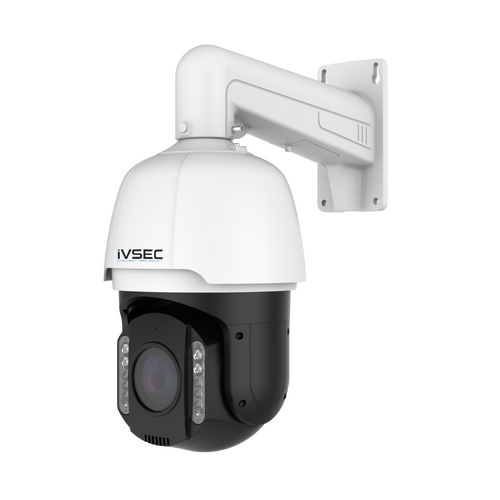

IVSEC NC693ADX PTZ Speed Dome Camera

8MP, 37x Optical Zoom, 200m IR, AI IVS, PoE, IP67

The IVSEC NC693ADX PTZ Speed Dome IP Camera is a next-generation professional surveillance solution engineered to deliver outstanding clarity, long-range coverage, and proactive protection. Designed with an 8MP ultra-high-definition sensor and an extraordinary 37x optical zoom lens (5.5–202mm), this camera allows operators to capture the finest details even from extreme distances—making it ideal for large-scale security environments such as airports, seaports, industrial sites, shopping complexes, and critical infrastructure.

At the core of the NC693ADX is a 1/1.8″ Progressive CMOS image sensor, capable of recording 4K resolution (3840 × 2160) at up to 25fps, ensuring smooth and crystal-clear footage. With enhanced low-light performance and built-in IR illuminators that reach up to 200 meters, the camera guarantees reliable visibility around the clock, even in complete darkness. The addition of red/blue strobing lights and dual white LEDs provides active deterrence, alerting intruders and preventing crime before it happens.

Equipped with Advanced Intelligent Video Surveillance (IVS), the NC693ADX goes beyond standard monitoring. It integrates face recognition, license plate recognition (LPR), human and vehicle detection, perimeter intrusion alerts, heat mapping, and region entrance/exit detection, enabling real-time analytics for smarter, proactive security management. Its auto-tracking PTZ functionality ensures moving objects are monitored seamlessly without operator intervention.

Built to endure the toughest conditions, the NC693ADX boasts an IP67 weatherproof rating and IK10 vandal resistance, protecting against dust, rain, and tampering. Its durable construction and -35°C to +60°C operating range make it suitable for virtually any climate. Designed for efficiency, the camera supports H.265+ compression, reducing storage and bandwidth costs while maintaining exceptional video quality.

With PoE support, edge recording via microSD, cloud storage (Dropbox), and ONVIF compatibility, integration into existing systems is effortless. Available at 7stores.au, the NC693ADX comes with a 3-Year Warranty and professional support, making it the ultimate PTZ surveillance solution for businesses that demand uncompromising performance and reliability.

Why Buy the IVSEC NC693ADX?

• 8MP Ultra-HD Resolution – Delivers crisp 4K video at 25fps for maximum detail.

• 37x Optical Zoom (5.5–202mm) – Capture distant subjects with precision and clarity.

• 200m Night Vision – High-powered IR ensures visibility even in complete darkness.

• Active Deterrent Features – Red/blue strobing lights and dual white LEDs to deter intruders.

• Advanced AI Analytics – Face recognition, vehicle detection, LPR, heat maps, and intrusion alerts.

• Auto-Tracking PTZ – Automatically follows moving targets for comprehensive monitoring.

• Weather & Vandal Resistant – IP67 and IK10 ratings for maximum durability.

• Optimised Storage – H.265+ compression reduces bandwidth and storage costs.

• Flexible Recording – Edge recording with microSD, plus cloud storage options.

• Professional Support – Available at 7stores.au with a full 3-Year Warranty.

Specifications

• Camera Type: PTZ Speed Dome

• Image Sensor: 1/1.8″ Progressive CMOS

• Resolution: 8MP (3840 × 2160)

• Frame Rate: 25fps

• Lens: 5.5–202mm motorised (37x optical zoom)

• Field of View (H.FOV): 52° to 1.5°

• Night Vision Distance: Up to 200m IR

• LEDs: Red & Blue, Dual White

• Compression: H.265+, H.265, H.264+, H.264, MJPEG

• ONVIF Support: Profiles S/G/T/M (firmware-dependent), HTTP API

• Streams: Up to 3

• Audio: Input connector for external mic

• Edge Recording: microSD/SDHC card

• Cloud Option: Dropbox integration

• Protocols: IPv4/IPv6, TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPnP, SMTP, SNMP, P2P

• IVS Functions: Face recognition, human & vehicle detection, intrusion detection, line crossing, stationary object, crossing counting, heat map, license plate recognition, region entrance/exit detection

• Ethernet: 10/100 Base-T

• Power Supply: PoE (IEEE 802.3af), DC36V, AC24V

• Power Consumption: <45W

• Durability: IP67 weatherproof, IK10 vandal-resistant

• Operating Conditions: -35°C to +60°C, ≤90% RH

• Dimensions (H × W × L): 338 × 207 × 207 mm

• Weight (Net/Gross): 5.27kg / 6.0kg

• Packaging Dimensions: 510 × 310 × 310 mm

• Accessories: Mounting bracket, screws, plugs, installation template, quick user guide, free software (FTP download)

• Warranty: 3-Year Warranty
