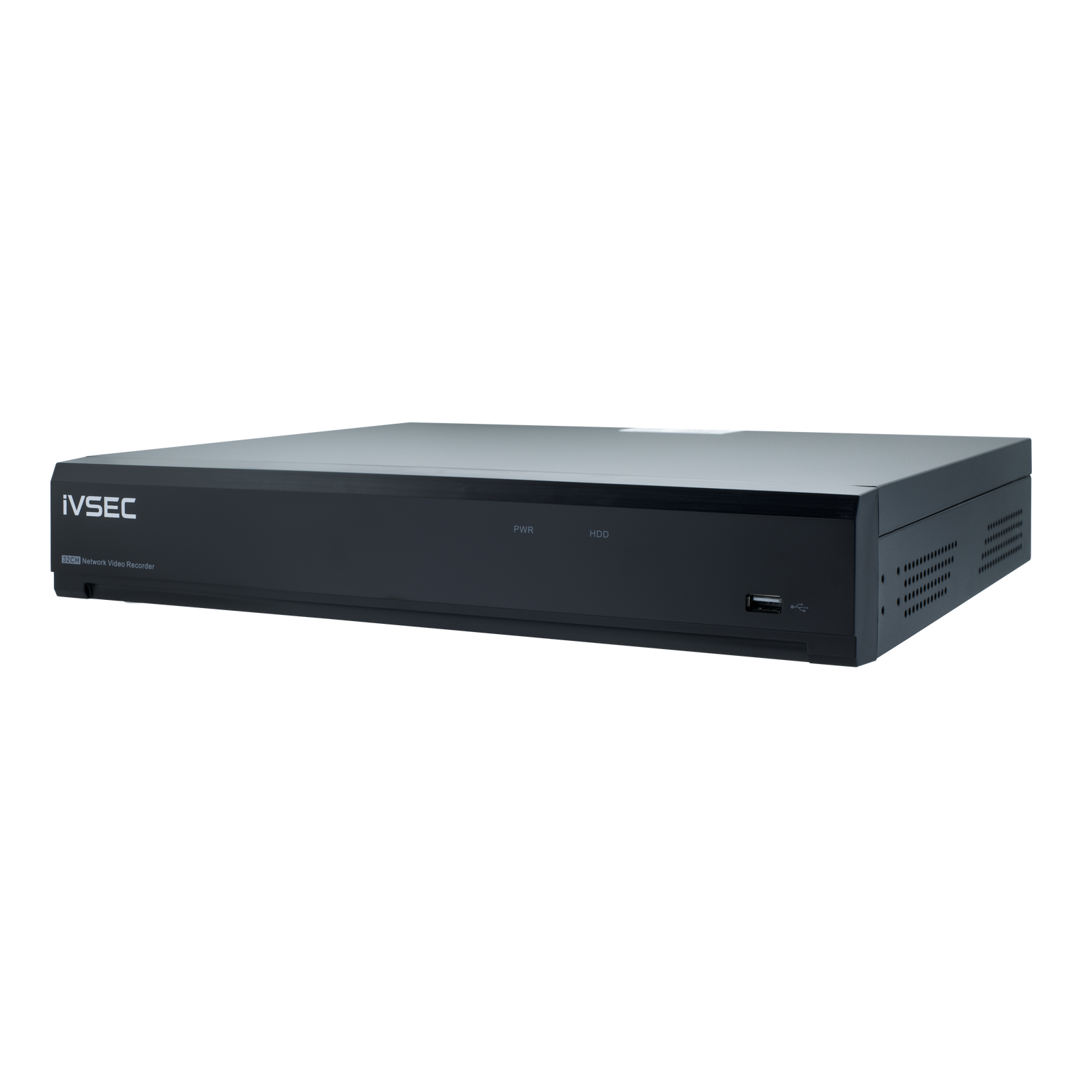

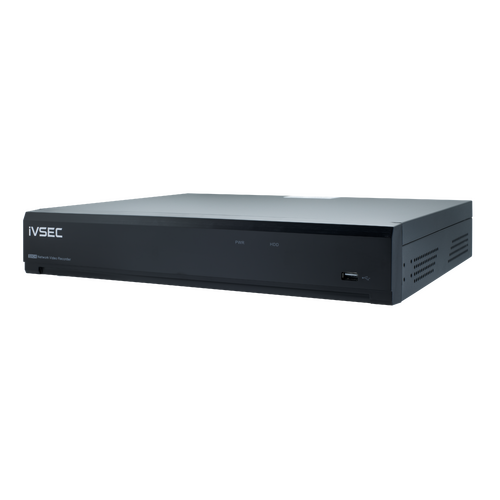

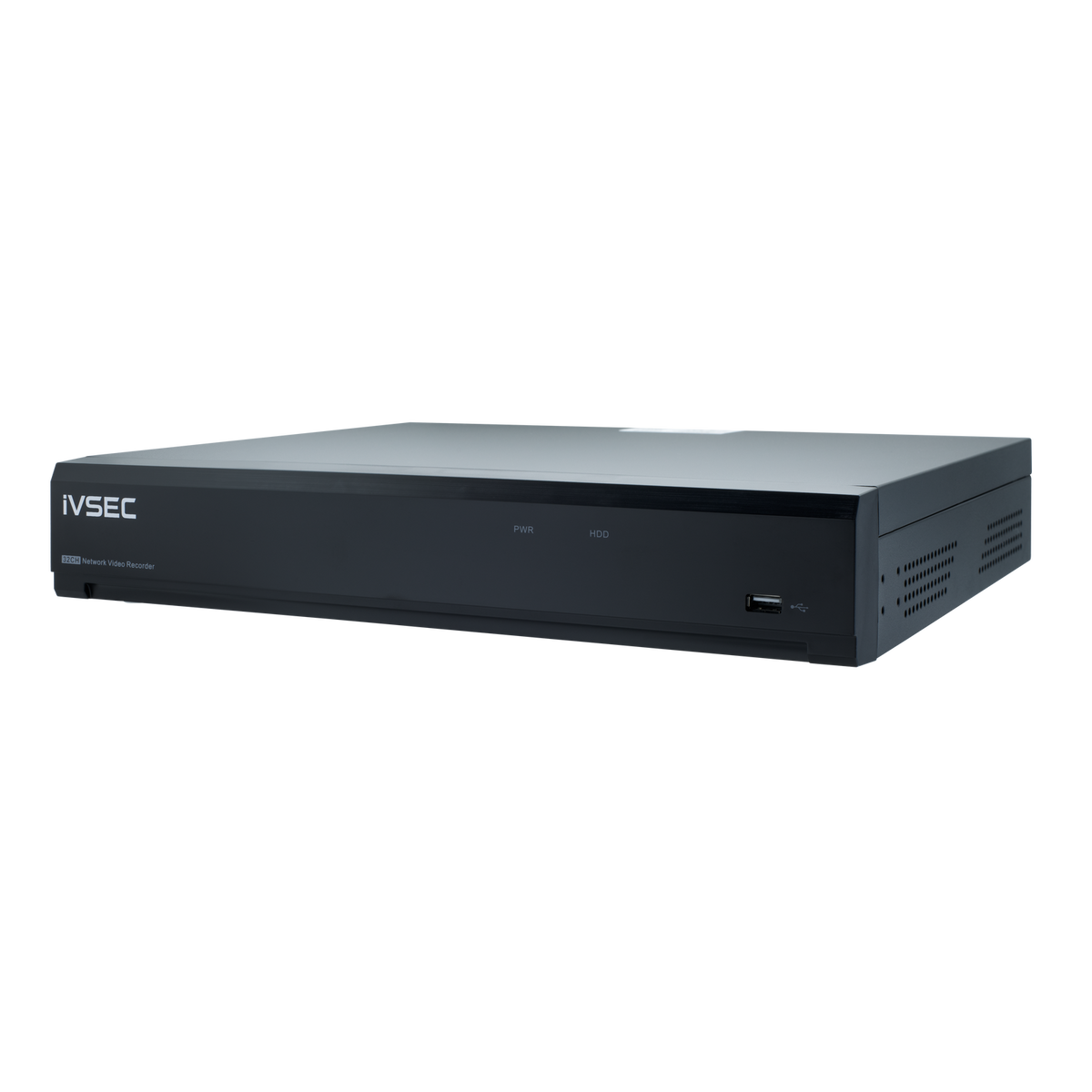

IVSEC NR6324XB NVR

32 Channel 12MP 16-Port PoE Professional 4-Bay 4K NVR with Advanced IVS

The IVSEC NR6324XB NVR is a professional-grade 32 channel network video recorder engineered for businesses, enterprises, and advanced security installations that require uncompromising reliability, storage scalability, and smart video analytics. Supporting up to 12MP resolution per channel and delivering a powerful 320 Mbps incoming bandwidth, this NVR ensures flawless management of multiple high-definition IP cameras with exceptional clarity.

Equipped with 16 integrated PoE+ ports and dual Gigabit network interfaces, the NR6324XB eliminates the need for separate PoE switches, making installation more efficient and reducing infrastructure costs. With support for H.265+/H.265 video compression, it maximizes storage efficiency without compromising video quality—perfect for systems where continuous 24/7 recording is critical.

Enterprise-Level Storage and Expandability

The NR6324XB features 4 SATA HDD bays, each supporting up to 24TB drives, for a total storage capacity of 96TB. This generous storage makes it ideal for enterprise-level surveillance environments such as commercial complexes, government facilities, logistics hubs, and large-scale retail operations. With powerful data management features and secure video retention, your critical surveillance footage is always available when needed.

Advanced Intelligent Video Analytics (IVS)

This NVR transforms traditional CCTV into a smart surveillance ecosystem. When used with compatible IVSEC cameras, it supports intelligent video analytics, including:

• Face Recognition

• Human & Vehicle Detection

• License Plate Recognition (LPR)

• Perimeter Intrusion & Line Crossing Detection

• Heat Mapping and Crowd Density Analysis

• Queue Length Detection

• Stationary Object and Rare Sound Detection

• Video Tampering Alerts

These advanced features allow proactive monitoring, immediate threat response, and actionable insights that improve operational efficiency and safety.

Multi-Display and Remote Access Flexibility

With 4K HDMI and VGA outputs, the NR6324XB supports multi-screen displays, enabling operators to monitor up to 32 simultaneous live views. Advanced search features such as time-lapse, thumbnail slice search, tagging, and event-triggered playback make it easy to quickly locate critical video footage.

Seamless integration with the IVSEC CMS/VMS software and mobile app ensures real-time remote access, giving users the ability to manage and review surveillance footage from anywhere. This makes the NR6324XB ideal for distributed security teams and multi-site operations.

Built for Reliability and Long-Term Use

Designed for tough environments, the NR6324XB operates reliably in temperatures from -10°C to +50°C with humidity tolerance below 90%. With redundant dual power inputs and a solid 2-year parts warranty, this NVR is built to deliver consistent long-term performance.

At 7stores.au, the IVSEC NR6324XB is available with expert guidance, fast shipping, and tailored solutions, making it the perfect choice for enterprise-grade video surveillance projects.

Why Choose the IVSEC NR6324XB from 7stores.au?

• 32 Channel NVR with support for 12MP ultra-HD video.

• 16 integrated PoE+ ports – reducing hardware costs and simplifying installation.

• Massive 96TB storage capacity across 4 HDD bays (up to 24TB each).

• 320 Mbps bandwidth for seamless multi-camera video streaming.

• Advanced IVS features: face recognition, license plate recognition, intrusion detection, and more.

• 4K HDMI + VGA outputs for control room monitoring.

• Smart search features – time-lapse, tagging, and snapshot slice search.

• Remote management via CMS/VMS and mobile app.

• Dual Gigabit Ethernet for redundancy and high-speed networking.

• Available at 7stores.au with warranty-backed reliability and professional customer support.

Technical Specifications

• Maximum Channels: 32

• Maximum Video Resolution: 12MP

• Bandwidth: 320 Mbps

• Video Compression: H.264, H.264+, H.265, H.265+

• Video Output Resolution: 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1.0MP (720P)

• Image Display Modes: 1–32 split layouts

• IVS Functions (with compatible cameras): Face Recognition, Human & Vehicle Detection, License Plate Recognition, Intrusion Detection, Heat Mapping, Crowd Density, Queue Detection, Rare Sound Detection, Video Tampering

• Search Methods: Continuous, Scheduled, Event Triggered, Snapshot Search, Tagging, Time Lapse, Slice (multi-thumbnail search), Timeline search

• Total Storage Capacity: 96TB

• HDD Bays: 4 × SATA (up to 24TB each)

• RAID Support: N/A

• Audio Streaming: Audio Out

• PoE Ports: 16 × PoE+ integrated

• Non-PoE Ports: 2 × Gigabit Ethernet RJ-45

• Video Outputs: HDMI, VGA

• Other Ports: USB2 × 2, e-SATA × 1, Alarm ports (8 in / 1 out), RS485

• Power Supply: DC 12V, 5A (dual inputs)

• Power Consumption: 12W (without HDD)

• Operating Environment: -10°C to +50°C, <90% RH

• Dimensions (H × W × L): 66 × 326 × 378 mm

• Packaging Dimensions: 120 × 380 × 500 mm

• Weight (Net/Gross): 3.8 kg / 4.1 kg

• In The Box: Quick installation guide, Mouse, HDD screws, Power supply

• Warranty: 2 Years Parts
