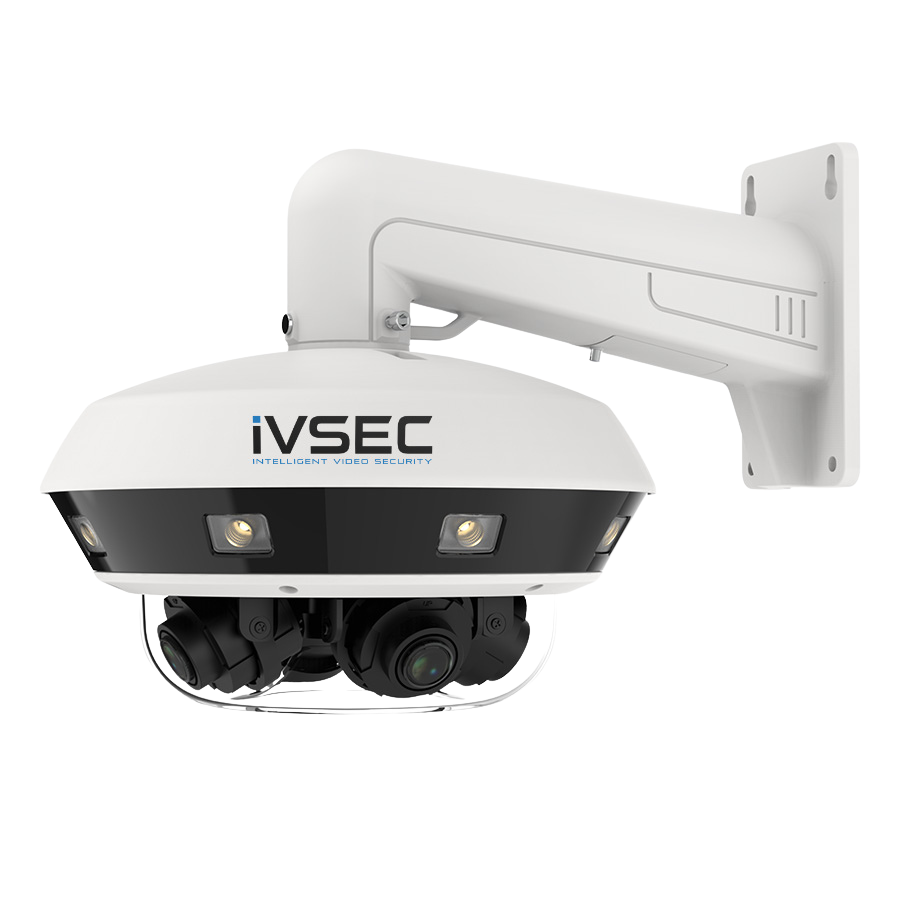

IVSEC NC540ADX 20MP Multi-Sensor Dome IP Camera – 360° Coverage, 4 x 5MP Lenses, 25FPS, PoE, IR, IP67, IK10

The IVSEC NC540ADX Dome IP Camera is a next-generation multi-sensor surveillance solution engineered for critical infrastructure, commercial, government, and high-security applications. With its innovative four-directional multi-sensor system, this camera captures every angle in stunning 20MP resolution, making it the ideal choice for environments that demand complete situational awareness without blind spots.

At its core, the NC540ADX integrates four independent 5MP sensors, each delivering 2880 x 1620 resolution at 25 frames per second, ensuring smooth, lifelike video capture. Combined, these sensors create a 20MP panoramic 360° field of view, giving operators the ability to monitor vast areas such as airports, campuses, warehouses, and city surveillance zones with one camera instead of multiple units. The motorised 2.8mm–12mm zoom lenses allow flexible adjustments, covering both wide-angle overviews and precise close-up details when required.

The NC540ADX excels in low-light and nighttime conditions, thanks to its Starlight technology and dual-source IR and warm white LEDs, ensuring reliable full-colour visibility around the clock. With a maximum IR distance of 30 metres, the camera captures fine detail even in near-total darkness, while advanced image enhancements (including 3D DNR, BLC, and White Balance controls) maintain clarity and accuracy in varying lighting conditions.

This multi-sensor dome camera goes beyond traditional video capture with its AI-powered Intelligent Video Analytics (IVS). Features such as motion detection, human and vehicle classification, face recognition, license plate recognition (LPR), intrusion detection, line crossing, queue length analysis, heat mapping, and crowd density detection enable proactive monitoring, reduced false alarms, and actionable insights for security teams.

Engineered for reliability and resilience, the NC540ADX is both IP67 weatherproof and IK10 vandal-resistant, ensuring robust performance in outdoor and high-risk environments. It supports Power over Ethernet (PoE IEEE 802.3af) and dual DC/AC power inputs for flexible installation. With H.265+ video compression, storage and bandwidth consumption are optimised, while edge recording via microSD/SDHC cards and Dropbox cloud support ensures redundant and secure data management.

Fully NDAA-compliant, the NC540ADX meets strict standards for government and enterprise use, making it suitable for regulated industries such as education, healthcare, transport, and public safety.

Available now at 7stores.au, the IVSEC NC540ADX delivers unparalleled 360° multi-sensor coverage, advanced AI-powered analytics, and robust durability, backed by a 3-Year Warranty.

Why Buy the IVSEC NC540ADX Dome IP Camera?

• 20MP Panoramic Surveillance – Four 5MP sensors deliver combined 360° coverage with crystal-clear 2880 x 1620 resolution.

• Motorised Zoom Lenses (2.8–12mm) – Flexible adjustment from wide-area monitoring to detailed close-ups.

• Starlight Low-Light Technology – Full-colour clarity in near darkness, enhanced with IR and warm light illumination.

• Advanced AI Video Analytics – Includes LPR, intrusion detection, face recognition, human & vehicle detection, heat maps, queue length analysis, and crowd density monitoring.

• Rugged Build Quality – IP67 weatherproof and IK10 vandal-resistant for outdoor and high-risk environments.

• Flexible Power Options – Supports PoE IEEE 802.3af, DC12V, and AC24V.

• Efficient Storage – H.265+ compression reduces file sizes without sacrificing detail; supports edge recording and cloud backup.

• Government & Enterprise Ready – Fully NDAA-compliant, suitable for high-security and regulatory applications.

• Professional-Grade Integration – Compatible with ONVIF (Profiles S/G/T/M), CMS/VMS platforms, and mobile apps.

• Available at 7stores.au – Trusted Australian supplier with 3-Year Warranty.

Specifications

• Camera Type: Dome / 360° Multi-Sensor

• Image Sensor: 1/2.7″ Progressive CMOS x 4

• Resolution: 20MP (2880 x 1620 per channel) @ 25fps

• Lens: Motorised 2.8–12mm, H.FOV: 35°–112°

• IR Distance: Up to 30m

• Illumination: IR + Warm White LEDs

• Day/Night Mode: Auto

• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG

• Streams: Triple-streaming supported

• Audio Streaming: Yes – external mic input

• IVS Features: Motion detection, Face recognition, Human/Vehicle detection, LPR, Intrusion detection, Line crossing, Heat Map, Crowd Density, Queue Length, Cross Counting, Object Detection

• Edge Recording: microSD/SDHC supported

• Protocols: IPv4/IPv6, TCP/IP, UDP, HTTP/HTTPS, DHCP, FTP, SMTP, UPnP, DNS, DDNS, NTP, PPPoE, RTP/RTSP, SNMP, P2P (QR Code)

• ONVIF: Profiles S/G/T/M (firmware dependent)

• Cloud Option: Dropbox

• Ethernet: 10/100/1000 Base-T

• Power Supply: PoE IEEE 802.3af, DC12V, AC24V

• Power Consumption: <39W

• Operating Environment: -30°C to +55°C, ≤95% RH

• IP Rating: IP67 Weatherproof

• Vandal Resistant: Yes, IK10 rated

• Dimensions (H x W x L): 195 x 300 x 300 mm

• Packaging Dimensions: 500 x 395 x 385 mm

• Weight: Net 4.6kg / Gross 5.0kg

• Accessories: IV2491X (included), IV2444X, IV2488X

• Software: Device Search/Config Tool, CMS/VMS, Mobile App

• In The Box: Free software, printed quick start guide, mounting template, screws and plugs

• Warranty: 3-Year Warranty
