Hisense HAIO163 163" All-in-One FHD LED Display

Ultra-Bright 1000 Nits | Professional AV Solution

About...

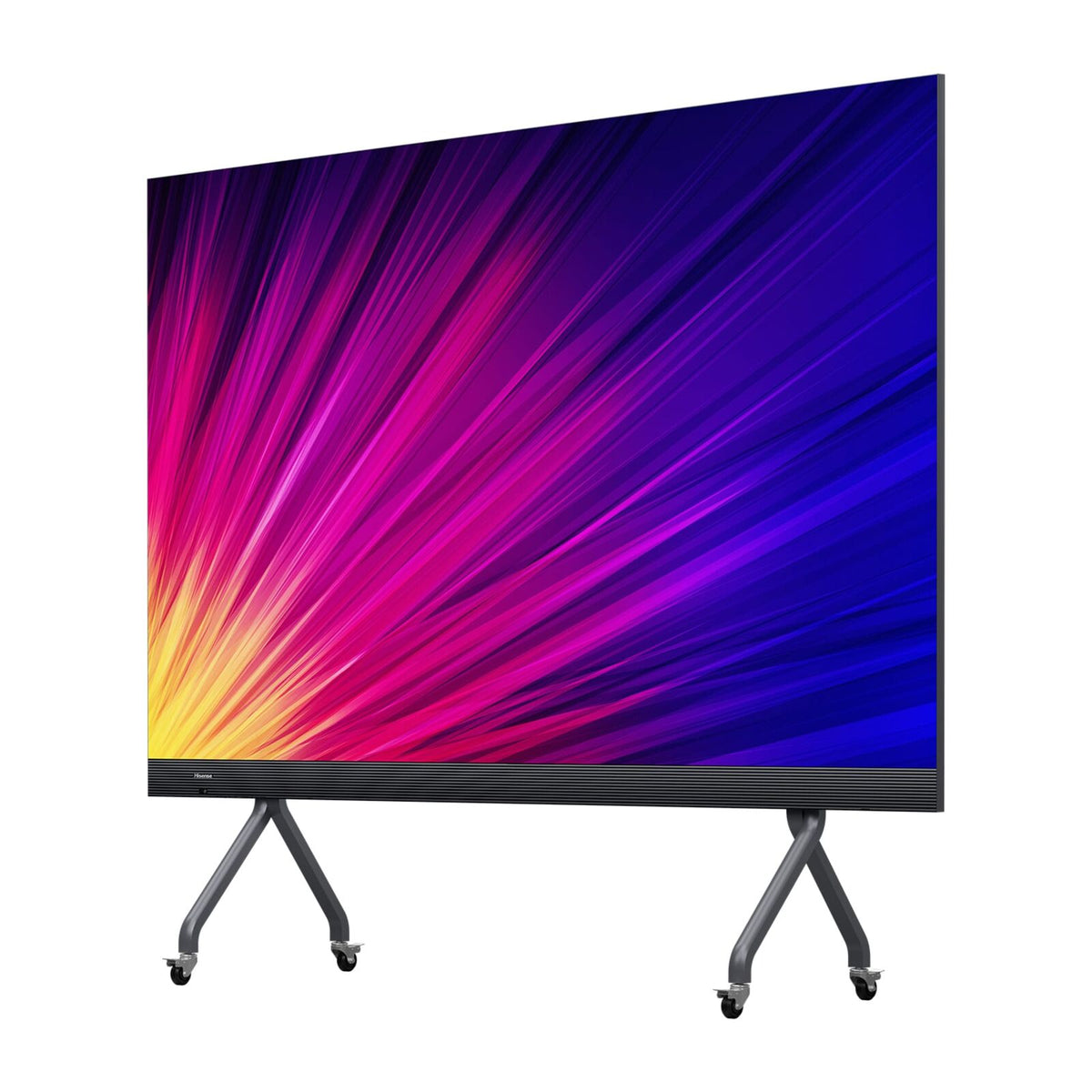

The Hisense HAIO163 All-in-One 163" FHD LED Display is designed to transform corporate boardrooms, conference halls, education centers, and high-end retail spaces into immersive visual environments that demand attention. With Full HD resolution (1920 x 1080), 1.875mm pixel pitch, up to 1000 nits brightness, and a massive 163-inch screen, this premium LED solution is built to deliver unrivalled clarity, lifelike color accuracy, and seamless content delivery for professional applications.

Unlike conventional projection or LCD panels, the Hisense HAIO163 LED Display provides superior contrast ratio, brightness uniformity, and dynamic refresh rates of up to 3,840Hz, ensuring flicker-free motion and crystal-clear visuals that elevate business communication, digital signage, and collaborative presentations.

This all-in-one LED solution comes with integrated speakers, Android 9.0 OS, Wi-Fi and Bluetooth connectivity, and a wide array of professional input/output options including HDMI 2.0, USB, Type-C, LAN, and RS-232 control, eliminating the need for complex external components. Its HRC12-grade multi-layer protection ensures long-term durability against dust, water, static, and external impact, making it a reliable choice for mission-critical environments.

At 7stores.au, the Hisense HAIO163 is offered as the ultimate turnkey LED solution, combining effortless setup, front service access for maintenance, and robust performance backed by a 100,000-hour LED lifetime. Businesses can maximize ROI with future-ready connectivity, advanced processing, and versatile installation options, including wall mounting or mobile cart configurations.

Why Buy the Hisense HAIO163 All-in-One LED Display?

• Immersive Large-Scale Visuals – A commanding 163” FHD LED display ensures impactful presentations and digital signage.

• Ultra-Bright Performance – Up to 1000 nits adjustable brightness delivers sharp, vivid imagery even in high ambient light conditions.

• Seamless Viewing Experience – Wide 160° viewing angles, 14-bit color processing, and 5000:1 contrast ratio ensure precise detail from every seat in the room.

• Professional-Grade Durability – Dustproof, waterproof, anti-static, and anti-salt spray protection extend product lifespan.

• Effortless Setup & Maintenance – All-in-one design with front service access minimizes downtime and reduces complexity.

• Smart Integration – Android 9.0 operating system with built-in Wi-Fi, Bluetooth, and powerful processing allows direct operation without additional hardware.

• Future-Proof Connectivity – HDMI 2.0, USB, Type-C, LAN, RS-232, and SPDIF output support multiple content sources and AV systems.

• Powerful Audio System – Six built-in 10W speakers plus external audio connectivity options ensure professional sound reinforcement.

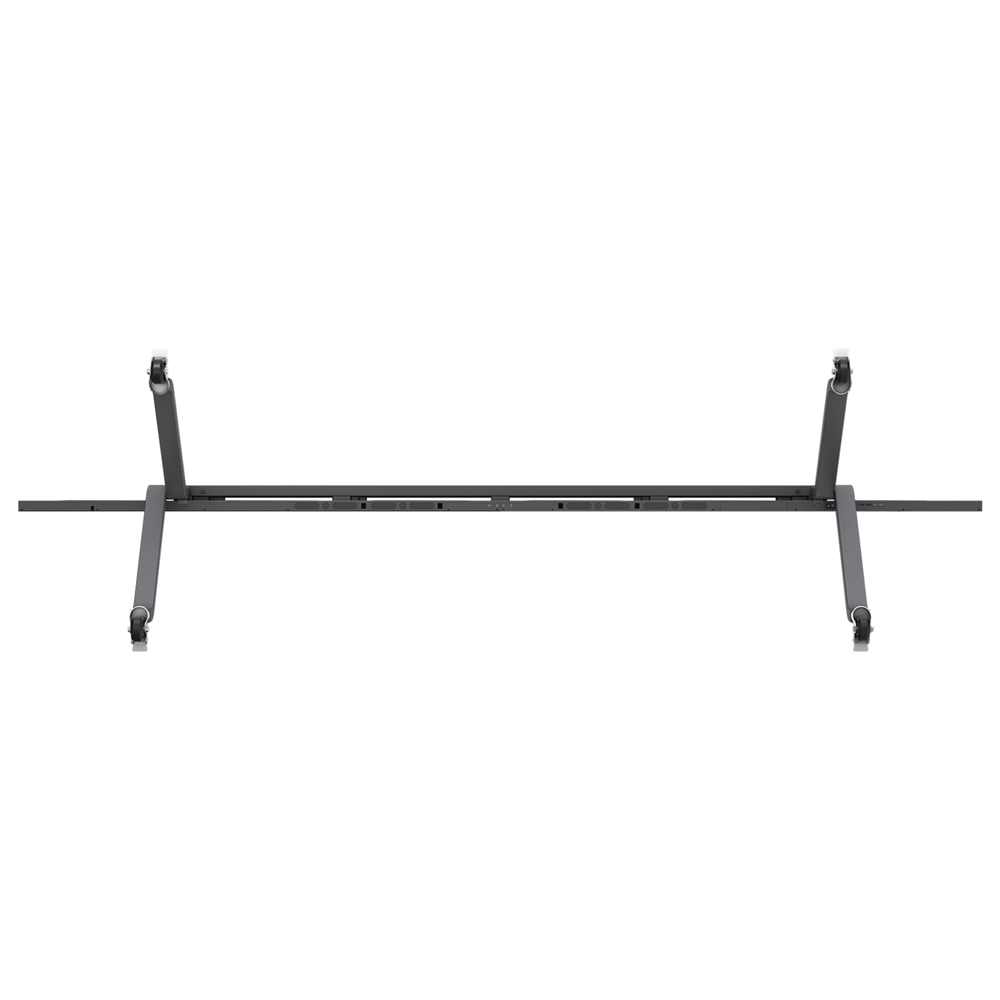

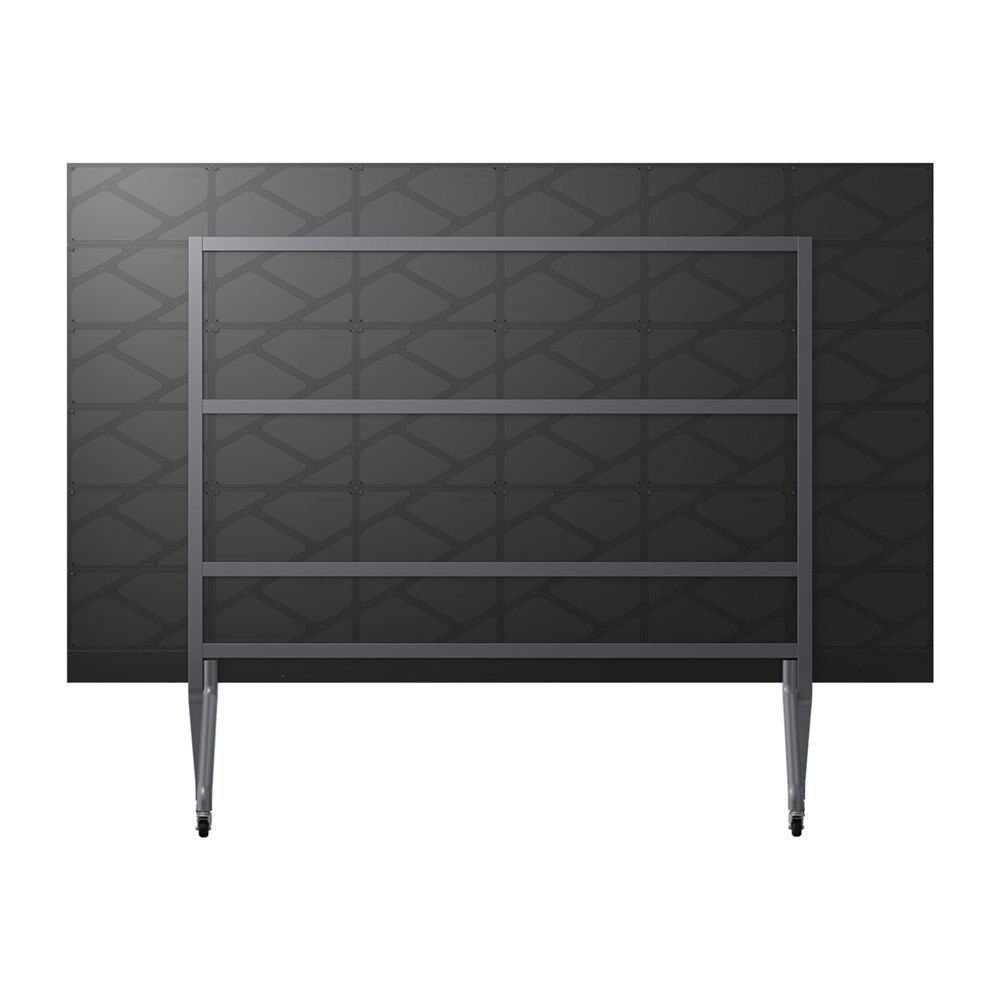

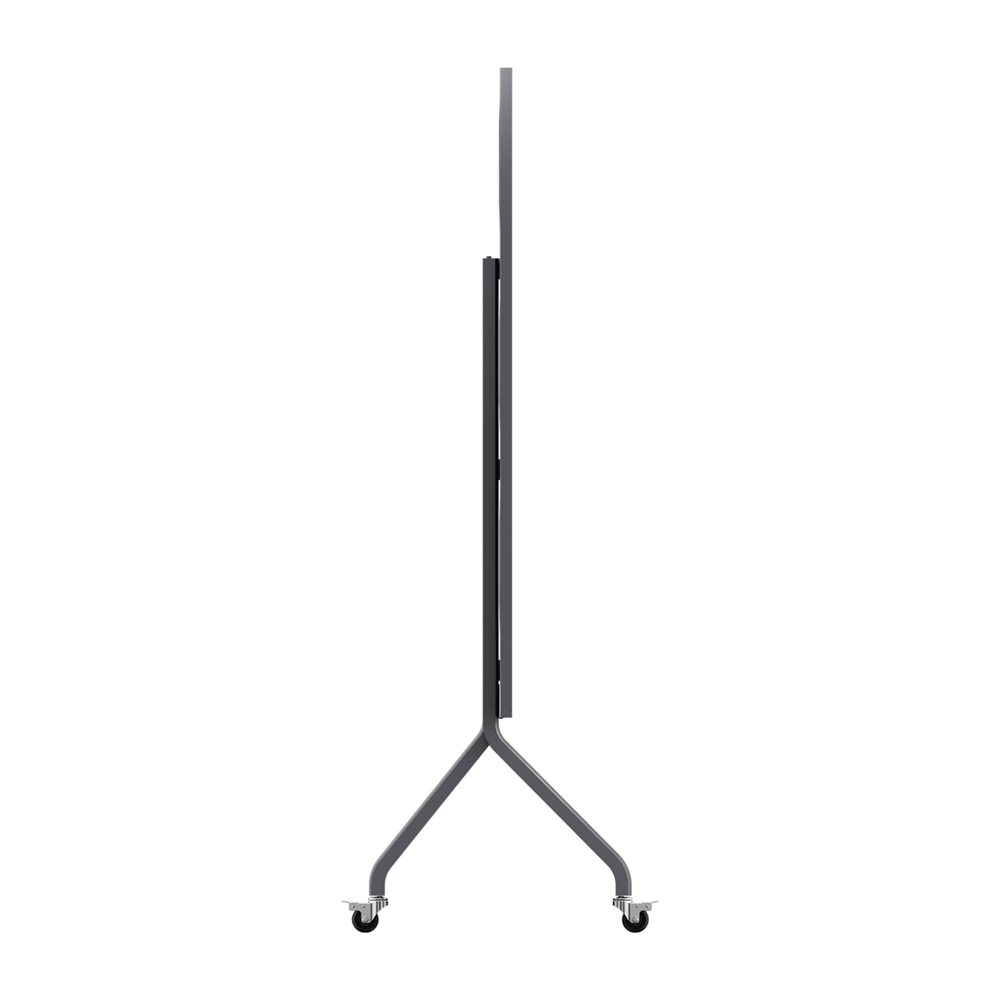

• Flexible Installation Options – Available with wall-mount brackets or mobile cart system for dynamic usage across locations.

• Sustainability & Long Life – 100,000 hours of LED lifetime ensures long-term performance and lower TCO.

Technical Specifications – Hisense HAIO163

Physical

• Screen Size: 163” (Diagonal)

• Resolution: 1920 x 1080 (FHD)

• Pixel Pitch: 1.875mm

• Pixel Density: 284,444 pixels/m²

• Brightness: 500 – 1000 nits (adjustable)

• Contrast Ratio: 5000:1

• Viewing Angle: 150° (H) × 140° (V)

• Aspect Ratio: 16:9

• Refresh Rate: 3,840Hz

• Grey Level: 14-bit

• LED Lifetime: 100,000 hrs

Dimensions & Weight

• Display (with frame): 3604 × 2112 × 32.3mm

• With Mobile Cart: 3604 × 2662 × 1086.8mm

• Panel Dimensions: 600 × 337.5 × 32.3mm

• Weight: 4kg per panel / 162kg total

Electrical

• Power Supply: 100–240V, 50/60Hz

• Average Power: ≤720W per screen

• Max Power: ≤2100W per screen

Connectivity

• Inputs: HDMI 2.0 ×3, USB 2.0 ×1, USB 3.0/Type-C ×1, RS-232 ×1, LAN ×1

• Outputs: SPDIF ×1, Audio Out ×1

• Wireless: Wi-Fi 2.4G & 5G, Bluetooth 5.0

Audio

• Built-in: 10W ×6 speakers

• External: 3.5mm audio connector

System

• OS: Android 9.0

• CPU: CA73 Quad-Core 1.3GHz

• GPU: G52 MC1

• Memory: 3GB RAM / 64GB Storage

Protection & Durability

• HRC12 Multi-Layer Protection: Dustproof, Waterproof, Anti-Static, Anti-Knock, Anti-Salt Spray

• Operation Temp: 0–40°C, 10%–90% RH

• Storage Temp: -20–40°C, 10%–65% RH

Accessories & Options

• Standard: Remote Control, Wall Bracket, Vacuum Tool, User Manual

• Optional: Mobile Cart, Hisense Dongle, Camera, OPS Module
