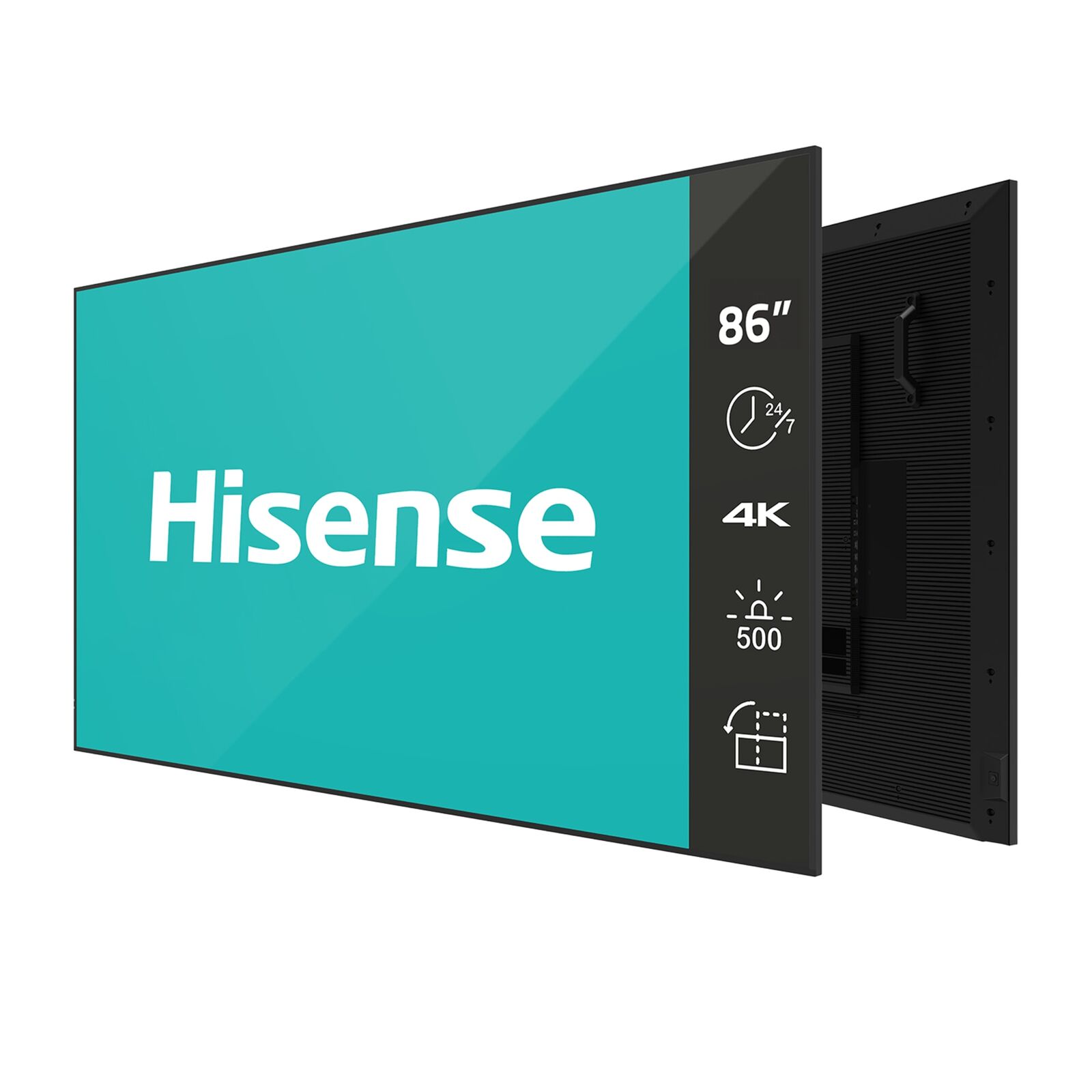

Hisense 86DM66D 86" UHD Digital Signage Display

500 nits, Android 11, 24/7 Operation

About...

The Hisense 86DM66D 86” UHD Digital Signage Display is a premium-grade, commercial 4K signage solution engineered for businesses that require reliable, high-performance displays with 24/7 operational capability. Purpose-built for corporate buildings, transportation hubs, museums, stadiums, hotels, restaurants, and retail environments, this professional signage panel is designed to deliver crystal-clear content, real-time updates, advanced connectivity, and seamless content management.

With its Ultra High Definition resolution of 3840 x 2160, 500 nits brightness, and ADS panel technology, this display ensures vivid, sharp, and engaging visuals that remain highly visible in both brightly lit public spaces and controlled environments. Its narrow bezel design, anti-glare coating, and landscape/portrait orientation support make it adaptable to any environment where design aesthetics and maximum impact are critical.

Built on the Android 11 operating system, the Hisense 86DM66D enhances device security, multitasking, and compatibility with enterprise applications, providing users with greater control over data and app permissions. This operating system also ensures smooth integration with cloud-based digital signage software, allowing organizations to manage displays remotely with maximum efficiency.

In-Depth Features & Advantages

Uninterrupted 24/7 Commercial Performance

The Hisense DM66D series is engineered for continuous operation, capable of running 24 hours a day, 7 days a week without compromising picture quality or reliability. With a lifetime of up to 50,000 hours, it provides a dependable solution for businesses looking to maximize ROI with long-term durability.

Advanced Smart Power & Energy Efficiency

Equipped with a built-in ambient light sensor, the display automatically adjusts brightness according to environmental lighting conditions. Certified by Energy Star 8.0, it not only lowers operational costs but also reduces environmental impact, making it ideal for organizations looking to implement sustainable digital signage solutions.

Wireless Screen Sharing & Collaboration

The built-in ScreenShare application allows wireless content sharing from multiple devices seamlessly. Whether presenting in conference rooms or broadcasting live promotions in retail spaces, content delivery becomes faster, more interactive, and completely cable-free.

Cloud-Based Mobile Device Management (VisionInfo)

Hisense integrates VisionInfo cloud management, enabling centralized control of multiple displays across regions. Businesses can push updates, monitor status, and adjust settings remotely, reducing maintenance overhead and ensuring consistency across signage networks.

Superior Panel Protection & Longevity

Featuring conformal coating technology, the display’s internal components are protected against dust, moisture, salt, chemicals, temperature fluctuations, and abrasions. This makes the Hisense 86DM66D highly reliable even in challenging environments such as transport terminals and industrial facilities.

Optimized Viewing Experience

• Anti-glare coating reduces reflection and enhances contrast for sharper images.

• Narrow bezel design provides a seamless and modern look, perfect for video wall setups.

• 178° wide viewing angles ensure consistent image quality from every perspective.

Enhanced Connectivity & Compatibility

The display supports HDMI 2.0, DisplayPort 1.2a, dual USB (2.0 & 3.0), RS232, LAN, and wireless connectivity (Wi-Fi 2.4/5.0GHz & Bluetooth 5.1). These extensive input/output options simplify integration into existing AV ecosystems and allow for multi-display daisy-chaining to streamline installations.

Why Hisense 86DM66D from 7stores.au?

1. Enterprise-Grade Reliability – Built for 24/7 continuous operation with robust protection.

2. High Visual Impact – 4K UHD resolution with 500 nits brightness delivers crisp, vibrant content.

3. Future-Proof Technology – Powered by Android 11 for secure, flexible, and scalable digital signage solutions.

4. Seamless Remote Management – Cloud-based VisionInfo system simplifies device management across multiple locations.

5. Sustainable & Cost-Efficient – Energy Star certified for reduced power consumption and long-term savings.

6. Flexible Applications – Ideal for public spaces, hospitality, retail, corporate, and transportation sectors.

At 7stores.au, we ensure our customers receive competitive pricing, authentic Hisense digital signage solutions, and reliable customer support to maximize the performance of their digital display networks.

Technical Specifications

Panel

• Backlight: DLED

• Panel Type: ADS

• Screen Size: 86”

• Resolution: 3840 × 2160 (UHD)

• Refresh Rate: 60Hz

• Brightness: 500 nits (typical)

• Contrast Ratio: 1200:1 (typical)

• Response Time: 8ms

• Viewing Angle: 178° (H/V)

• Color Depth: 1.07B (8-bit + FRC)

• Color Gamut: 72% NTSC

• Orientation: Landscape & Portrait

• Lifetime: 50,000 hrs

• Operation: 24/7

Audio

• Built-in Speakers: 10W × 2

Connectivity

• Wi-Fi: 2.4/5GHz Dual Band

• Bluetooth: BT 5.1

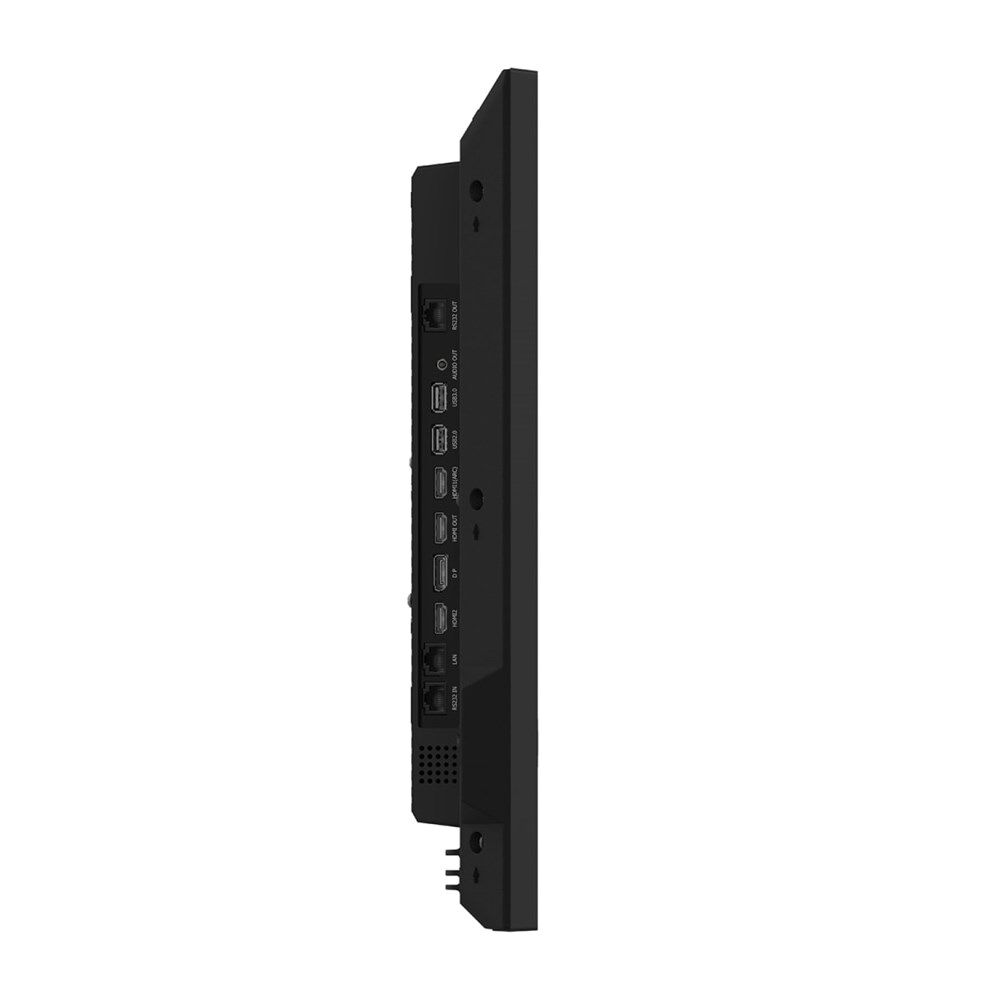

• Inputs: HDMI 2.0 × 2, DP 1.2a × 1, USB 2.0 × 1, USB 3.0 × 1, RS232 × 1, LAN × 1

• Outputs: HDMI × 1, Audio (3.5mm) × 1, RS232 × 1

Physical

• Dimensions: 1926.6 × 1095.5 × 64.2 mm

• Bezel Width: 10.3 mm (Top/Left/Right), 10.8 mm (Bottom)

• Net Weight: 38.2 kg

• VESA Mount: 600 × 400 mm

Environment & Certification

• Operating Temperature: 0 – 40°C

• Humidity: 10% – 80% (Non-Condensing)

• Certifications: CCC, CB, CE, FCC, cTUVus, UKCA, CEC, ERP

• Safety Standard: 62368-1

• IP Rating: IP5X

• Energy Star 8.0 Certified

Included in Box

• Quick Setup Guide

• Warranty Card

• Power Cord

• Remote Controller + Batteries

• RS232 (in) Gender

Available Regions: EU, USA, APAC, SA
